Front Bumper Installation Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Spread the front bumper ends (wheel arches) apart.
  2. Attach the front bumper to the body.
  3. Press the front bumper connection portion into the body to engage with the bracket.

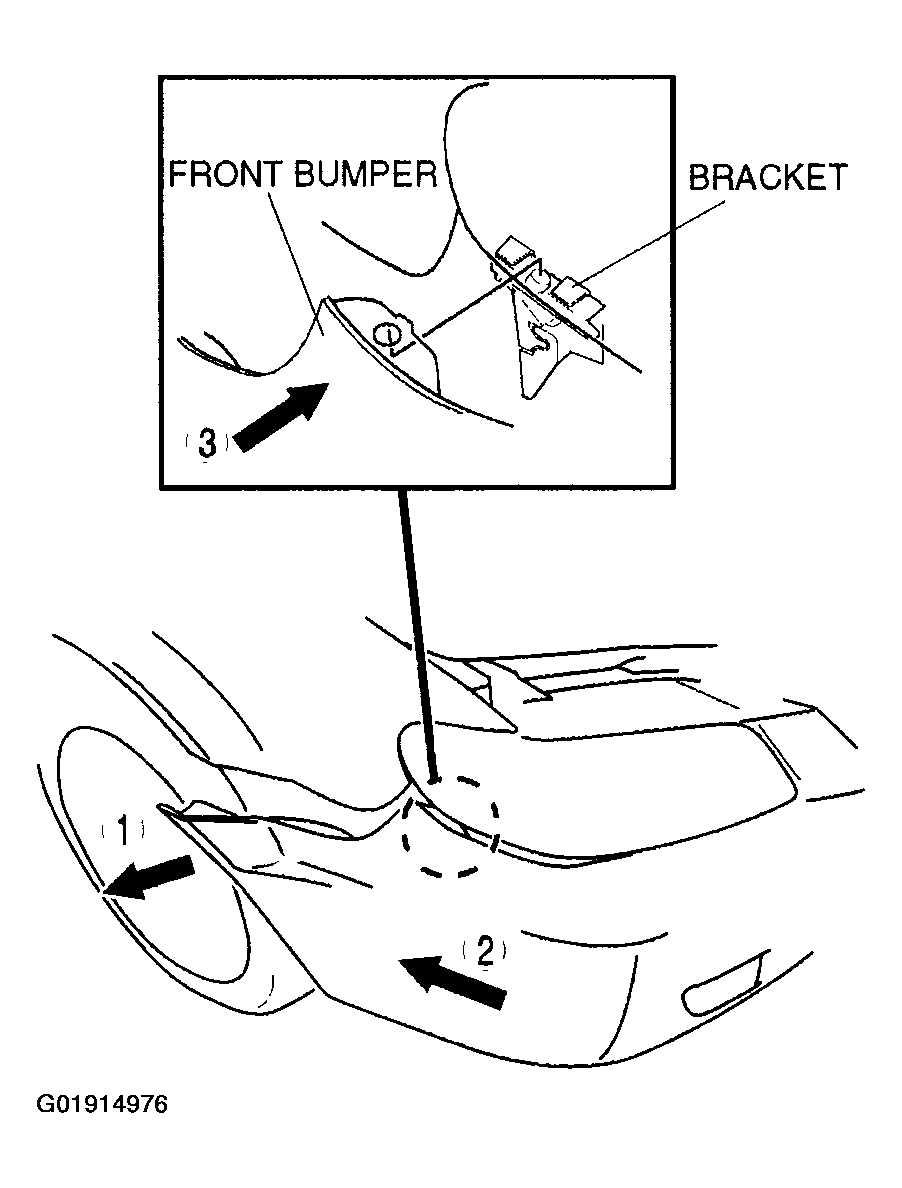

    Fig 1: Installing Front Bumper
    G01914976Courtesy of MAZDA MOTORS CORP.
