Rear Seat Belt Removal/Installation: 5HB

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk side trim.
  2. Remove the bolts, then remove the rear seat belt.
  3. Install in the reverse order of removal.

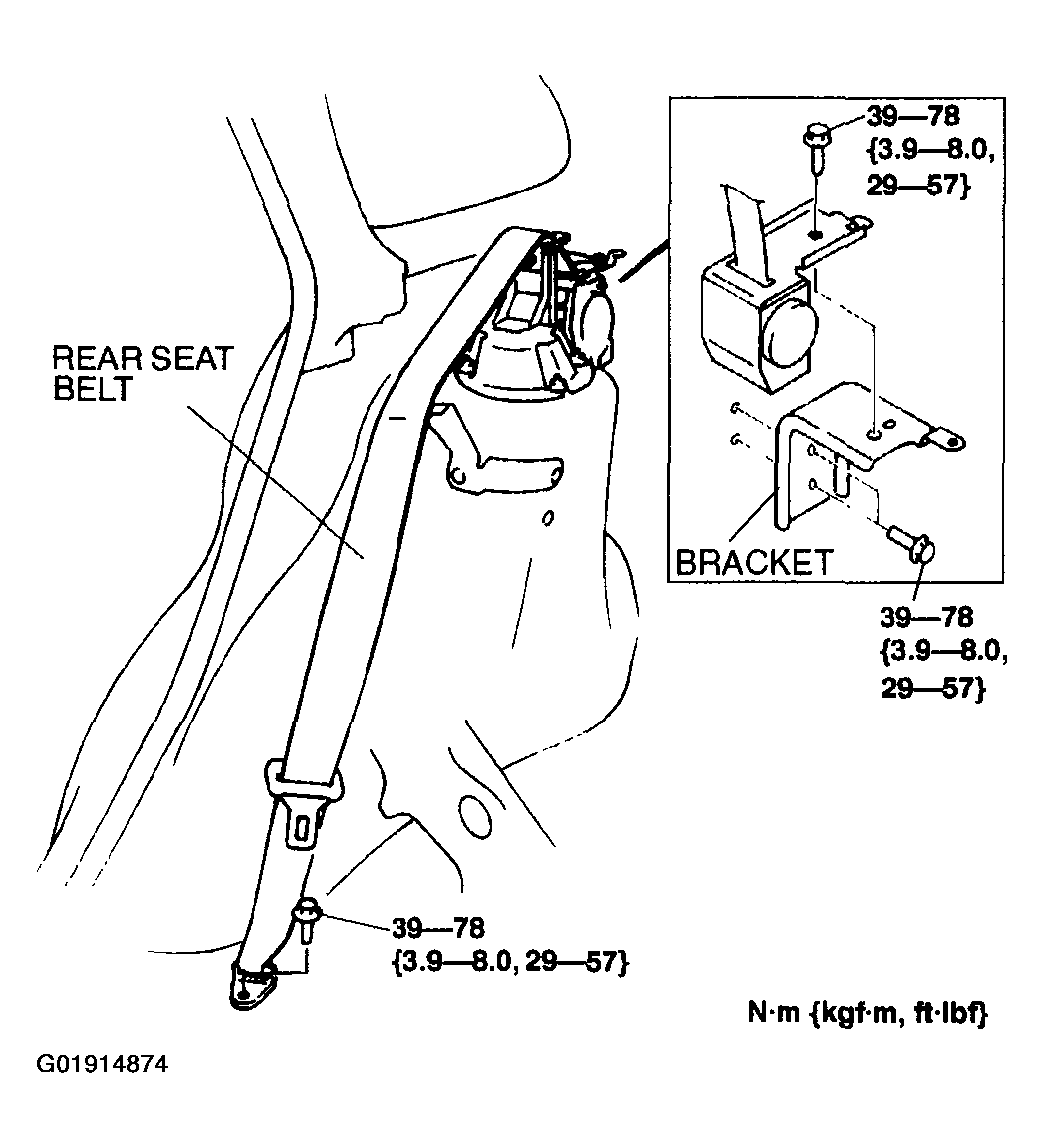

    Fig 1: Removing Rear Seat Belt (5HB)
    G01914874Courtesy of MAZDA MOTORS CORP.
