Rear Center Seat Belt Removal/Installation: 4SD

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear package trim.
  2. Remove the bolt, then remove the rear center seat belt.
  3. Install in the reverse order of removal.

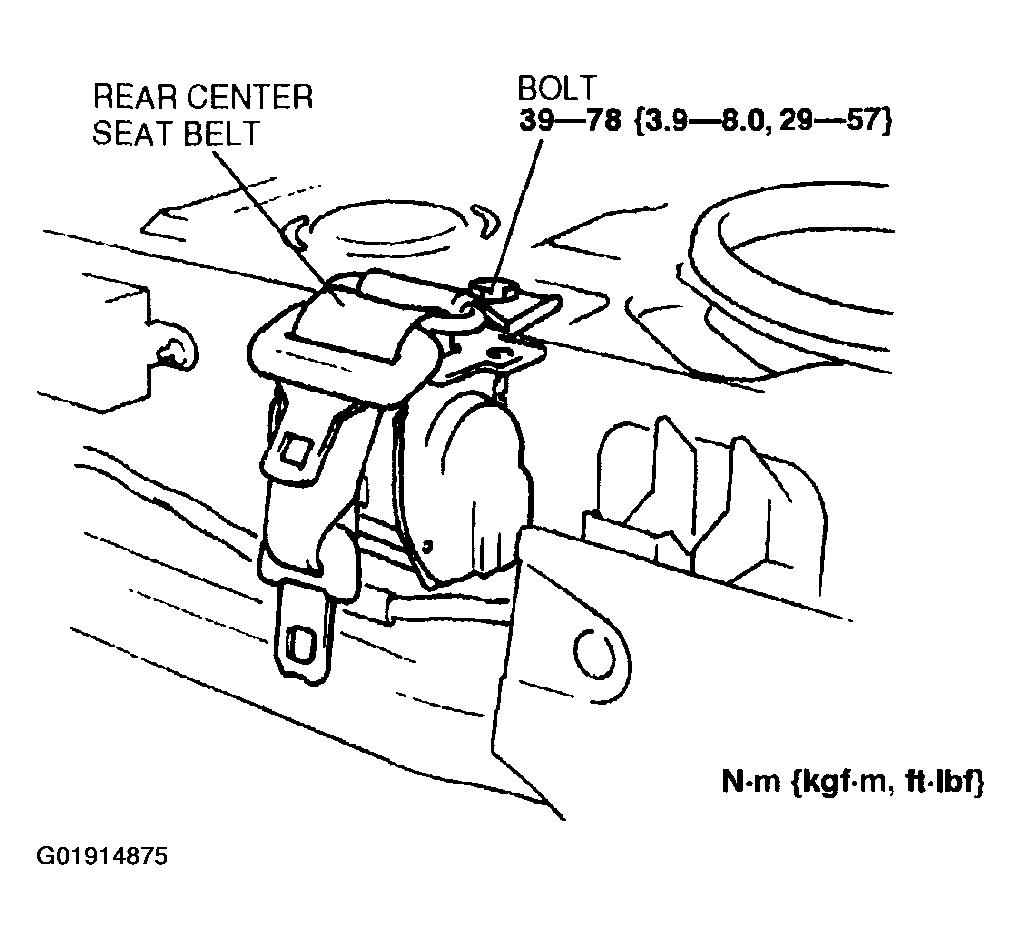

    Fig 1: Removing Rear Center Seat Belt (4SD)
    G01914875Courtesy of MAZDA MOTORS CORP.
