Magnetic Clutch Inspection

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the magnetic clutch connector.
  2. Connect B+ to terminal A of magnetic clutch and ground to the A/C compressor body.
  3. Verify that the magnetic clutch operates.
    • If not as specified, replace the stator and thermal protector.

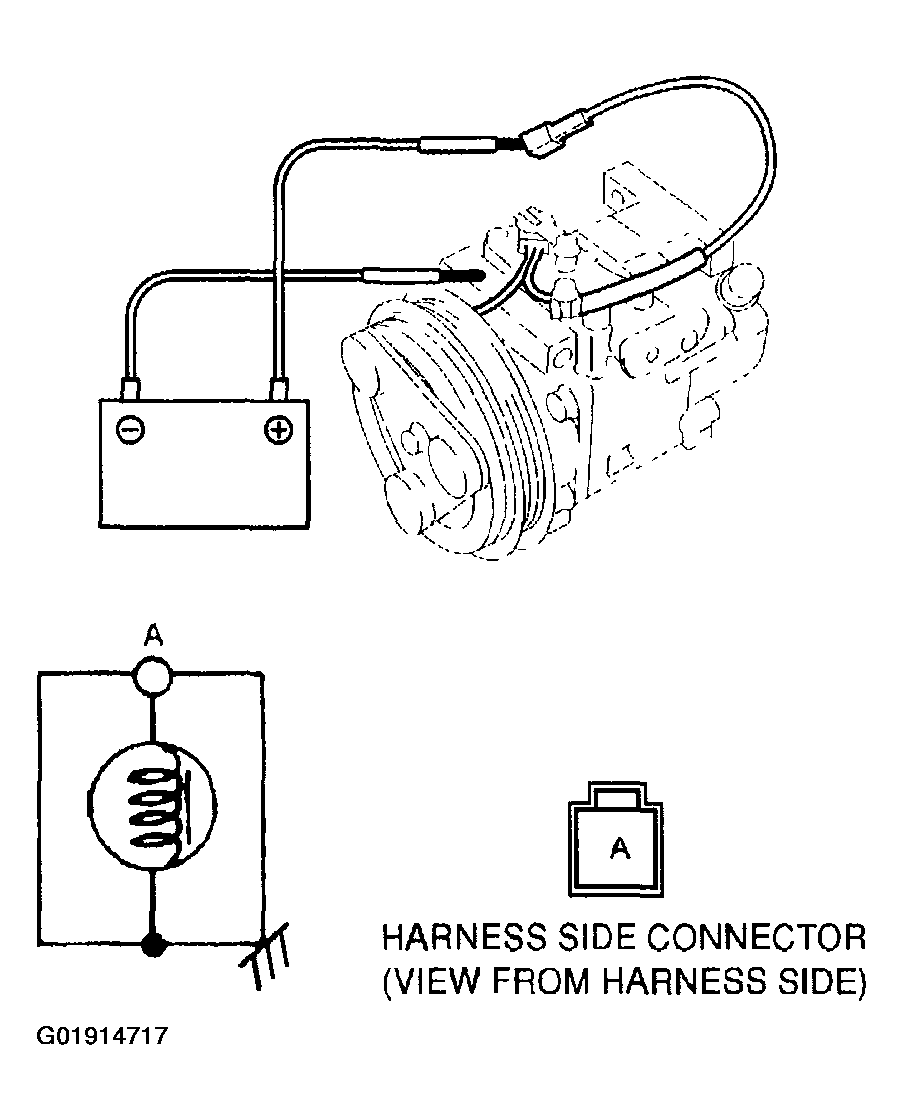

    Fig 1: Inspecting Magnetic Clutch Operation
    G01914717Courtesy of MAZDA MOTORS CORP.
