Condenser Fan Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the fresh-air duct.
Remove in the order indicated in the illustration.

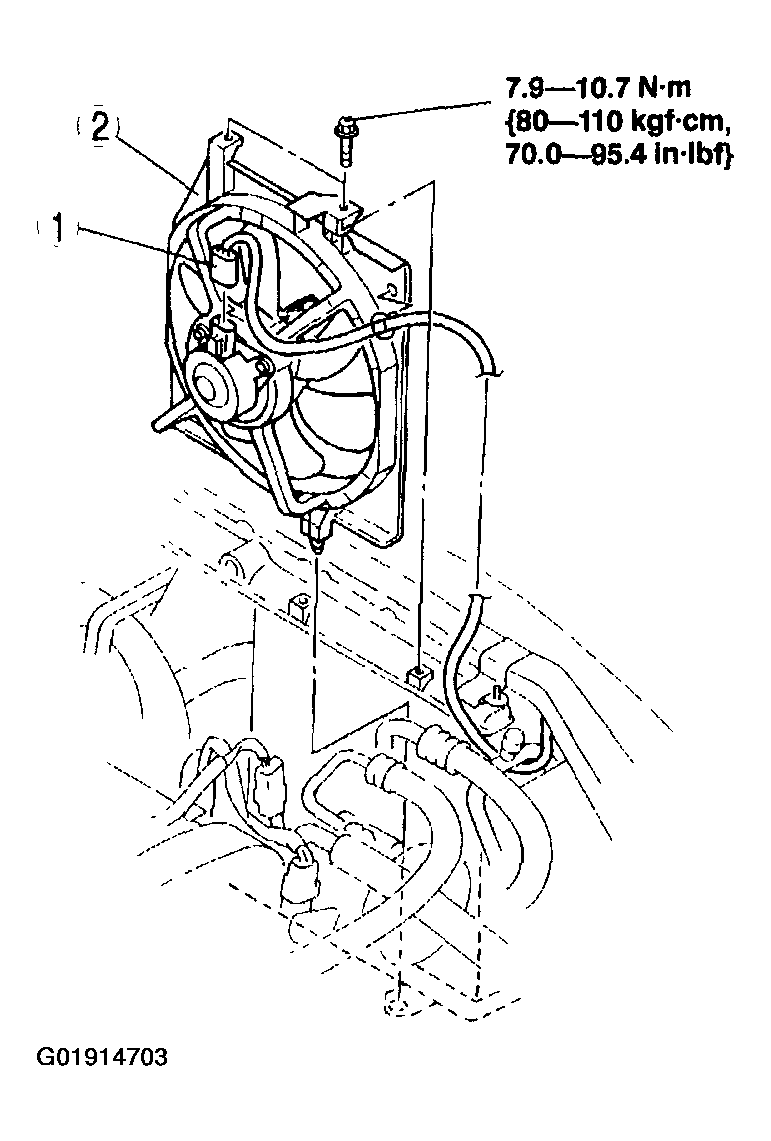

Fig 1: Removing Condenser Fan
Courtesy of MAZDA MOTORS CORP.

Fig 2: Condenser Fan Removing Order Chart
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
