Manifold Gauge Set Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully close the valves of the manifold gauge.
  2. Connect the charging hoses to the high- and low-pressure side joints of the manifold gauge.
  3. Connect the quick couplers to the ends of the charging hoses.
  4. Remove the caps from the charging valves.
  5. Connect the quick couplers to the charging valves.

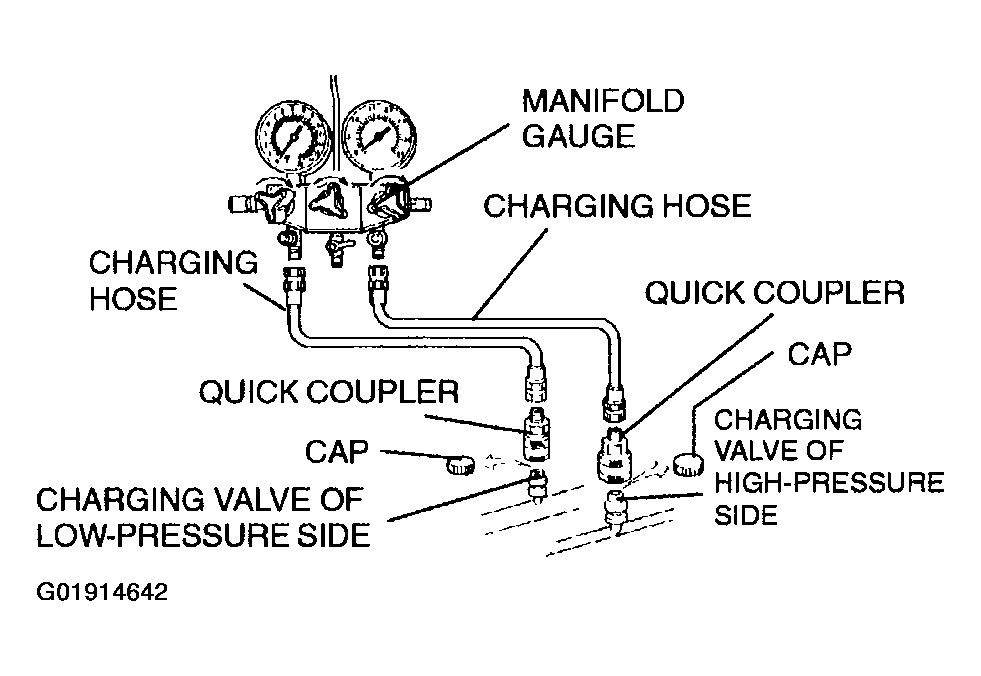

    Fig 1: Installing Manifold Gauge Set
    G01914642Courtesy of MAZDA MOTORS CORP.
