WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

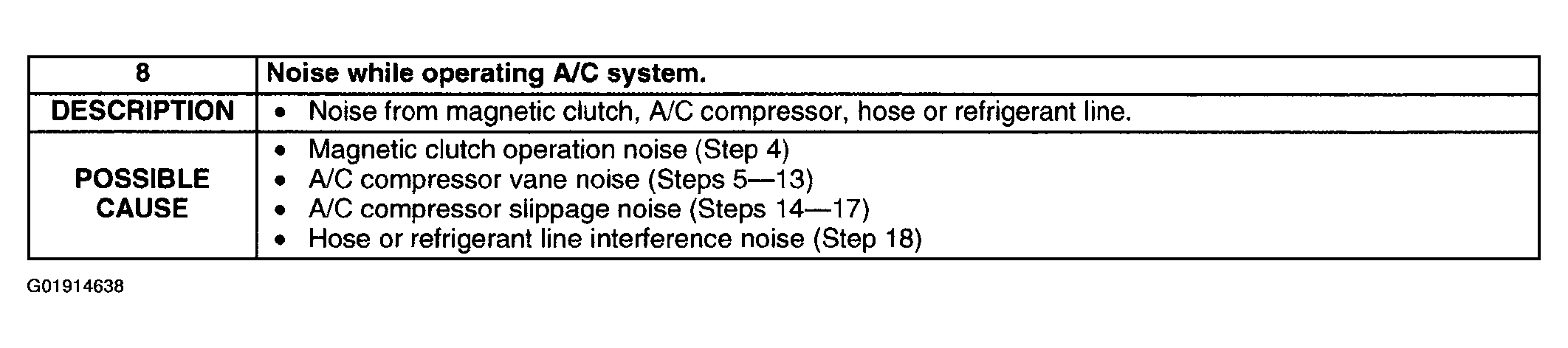

Fig 1: Troubleshooting Item Description Chart
Courtesy of MAZDA MOTORS CORP.

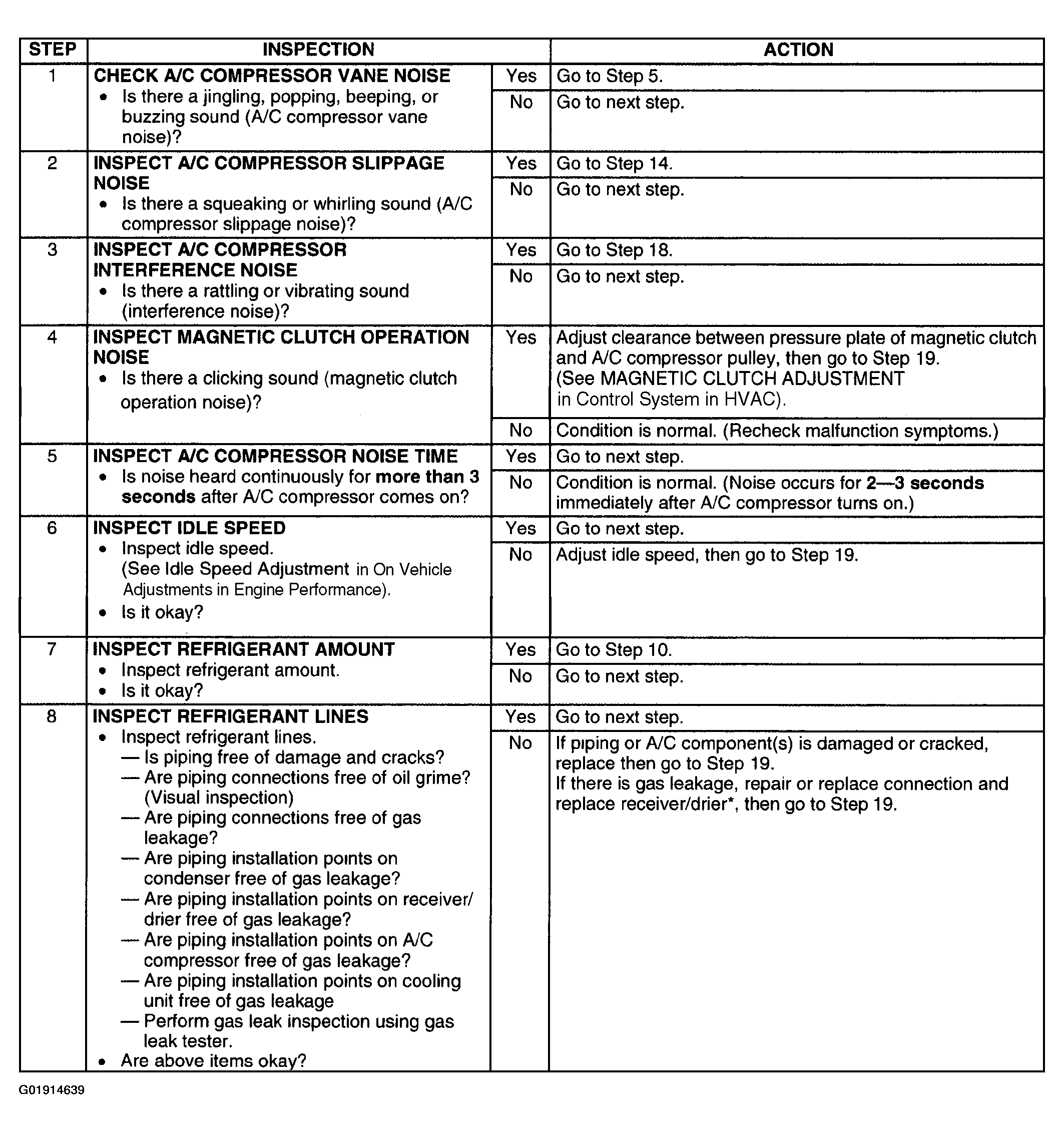

Fig 2: Diagnostic Procedure Chart - Noise While Operating A/C System (Steps 1-8)
Courtesy of MAZDA MOTORS CORP.

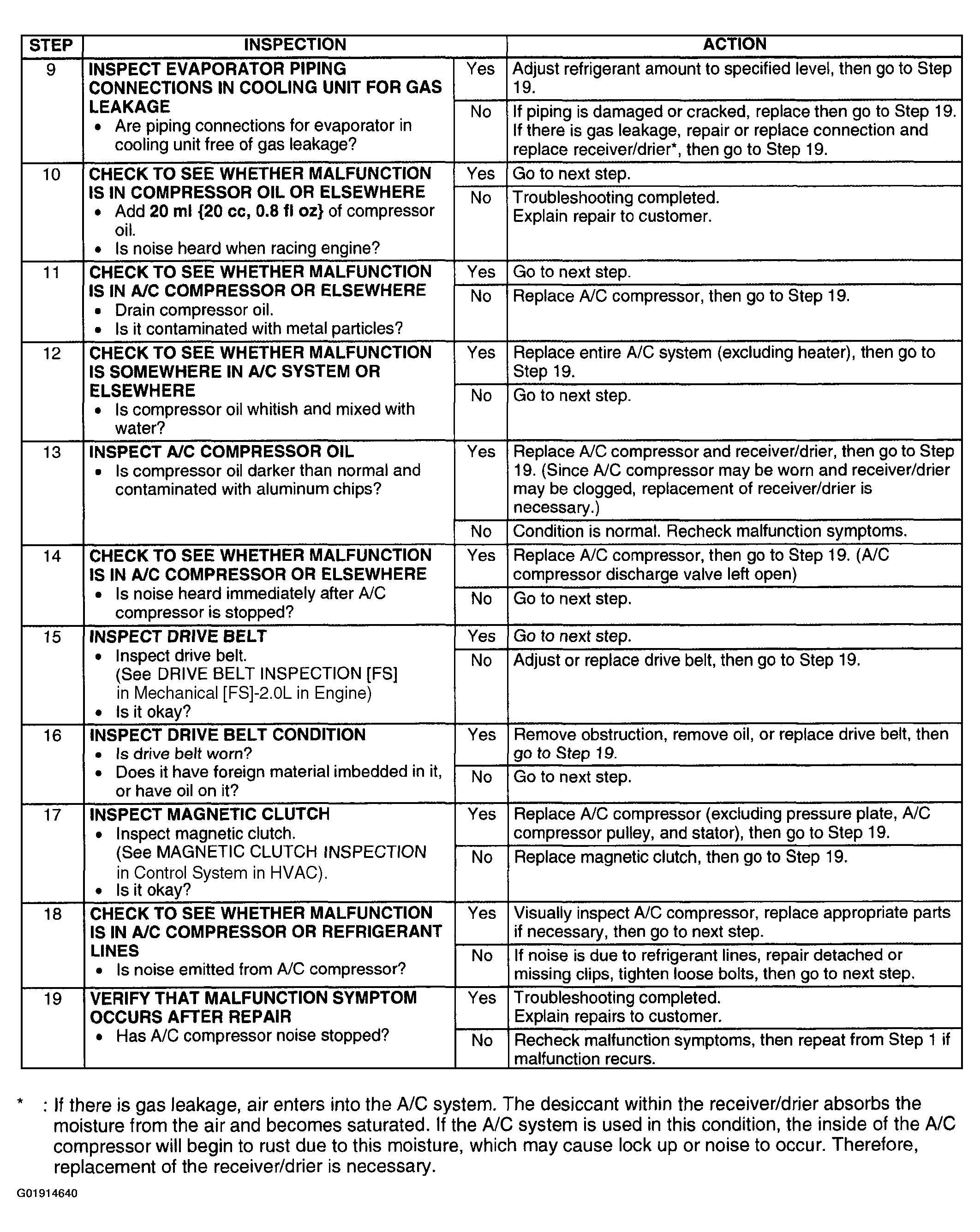

Fig 3: Diagnostic Procedure Chart - Noise While Operating A/C System (Steps 9-19)
