WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

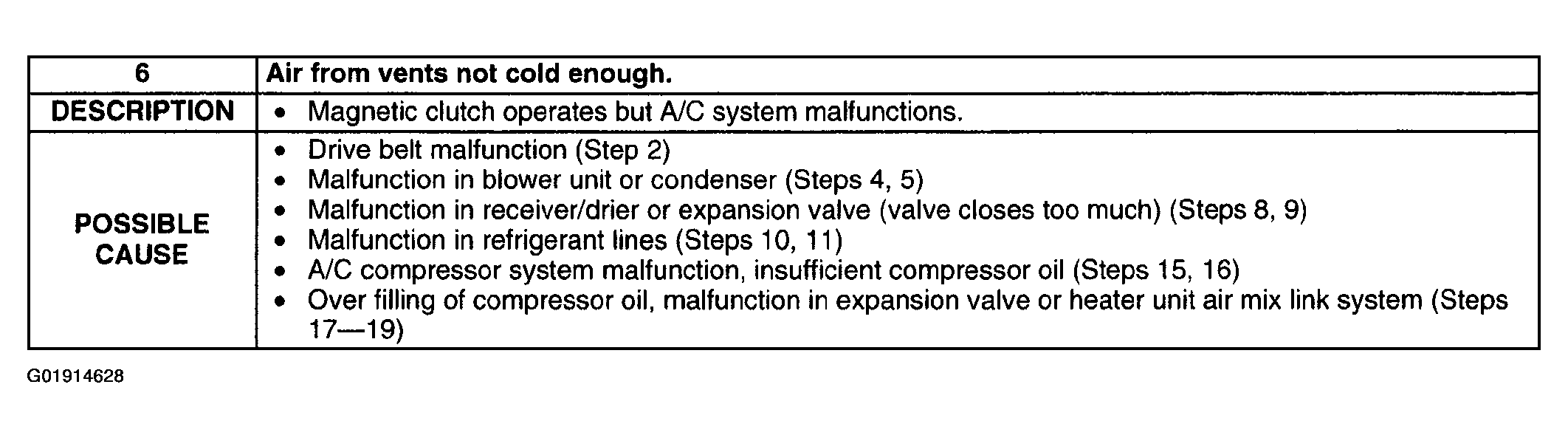

Fig 1: Troubleshooting Item Description Chart
Courtesy of MAZDA MOTORS CORP.

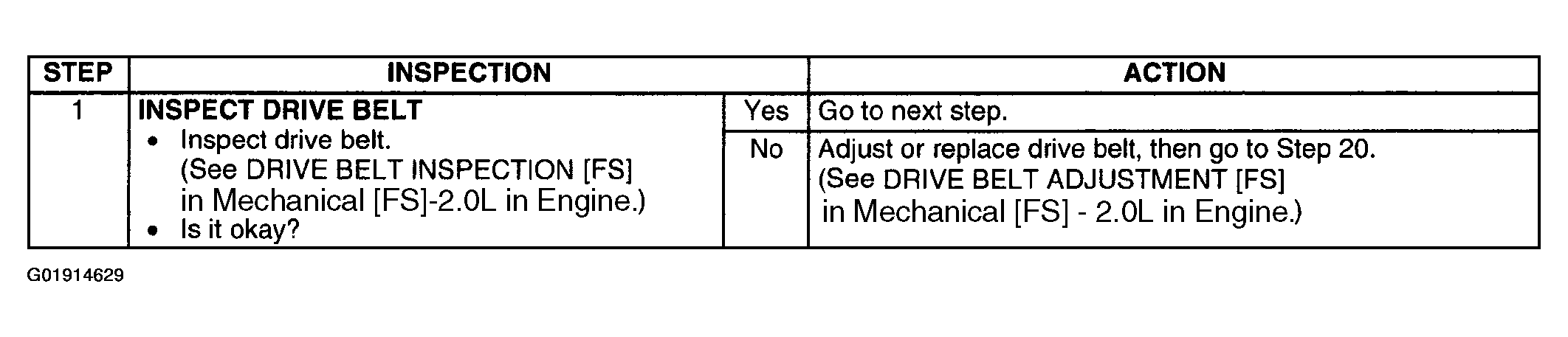

Fig 2: Diagnostic Procedure Chart - Air From Vents Not Cold Enough (Step 1)
Courtesy of MAZDA MOTORS CORP.

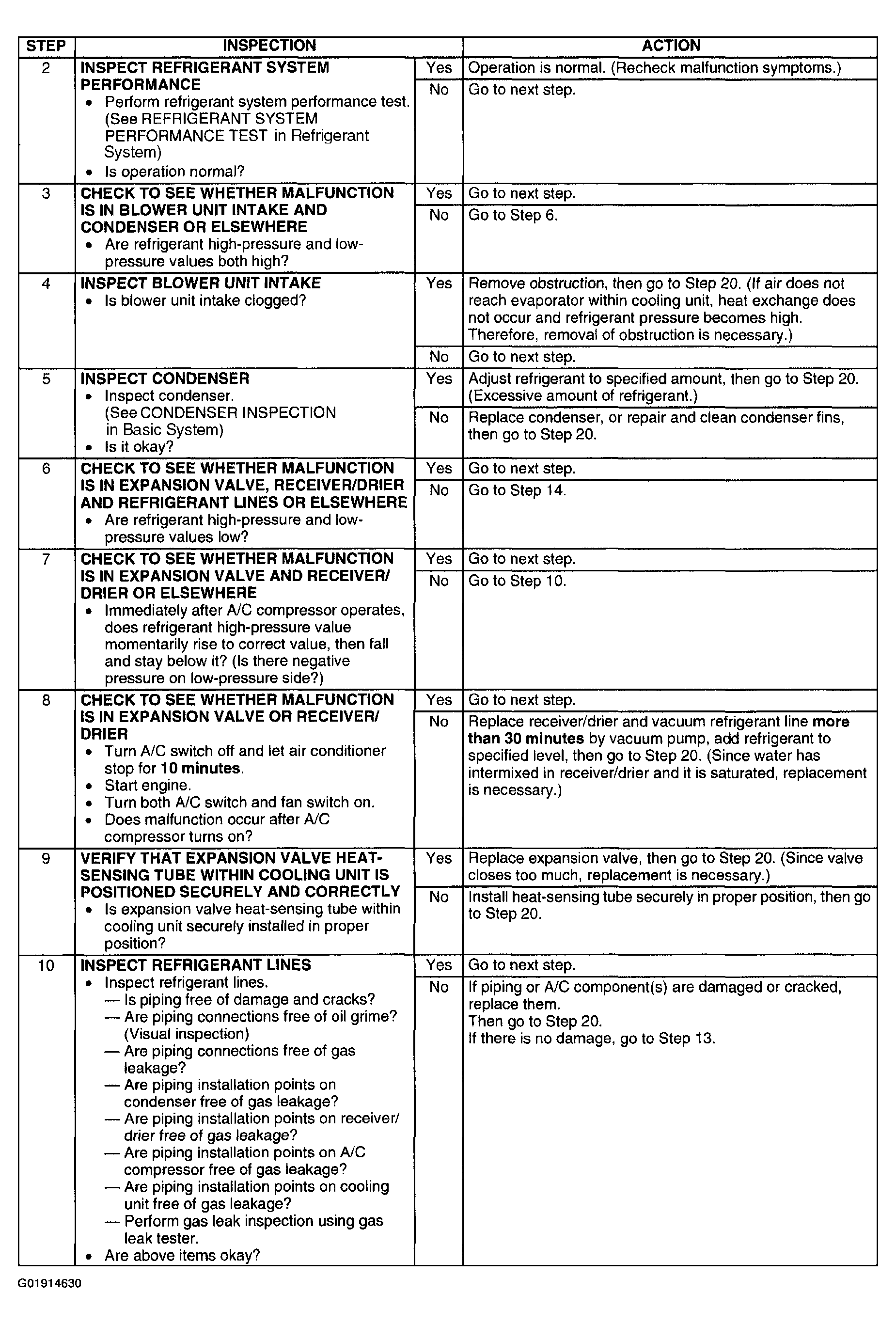

Fig 3: Diagnostic Procedure Chart - Air From Vents Not Cold Enough (Steps 2-10)
Courtesy of MAZDA MOTORS CORP.

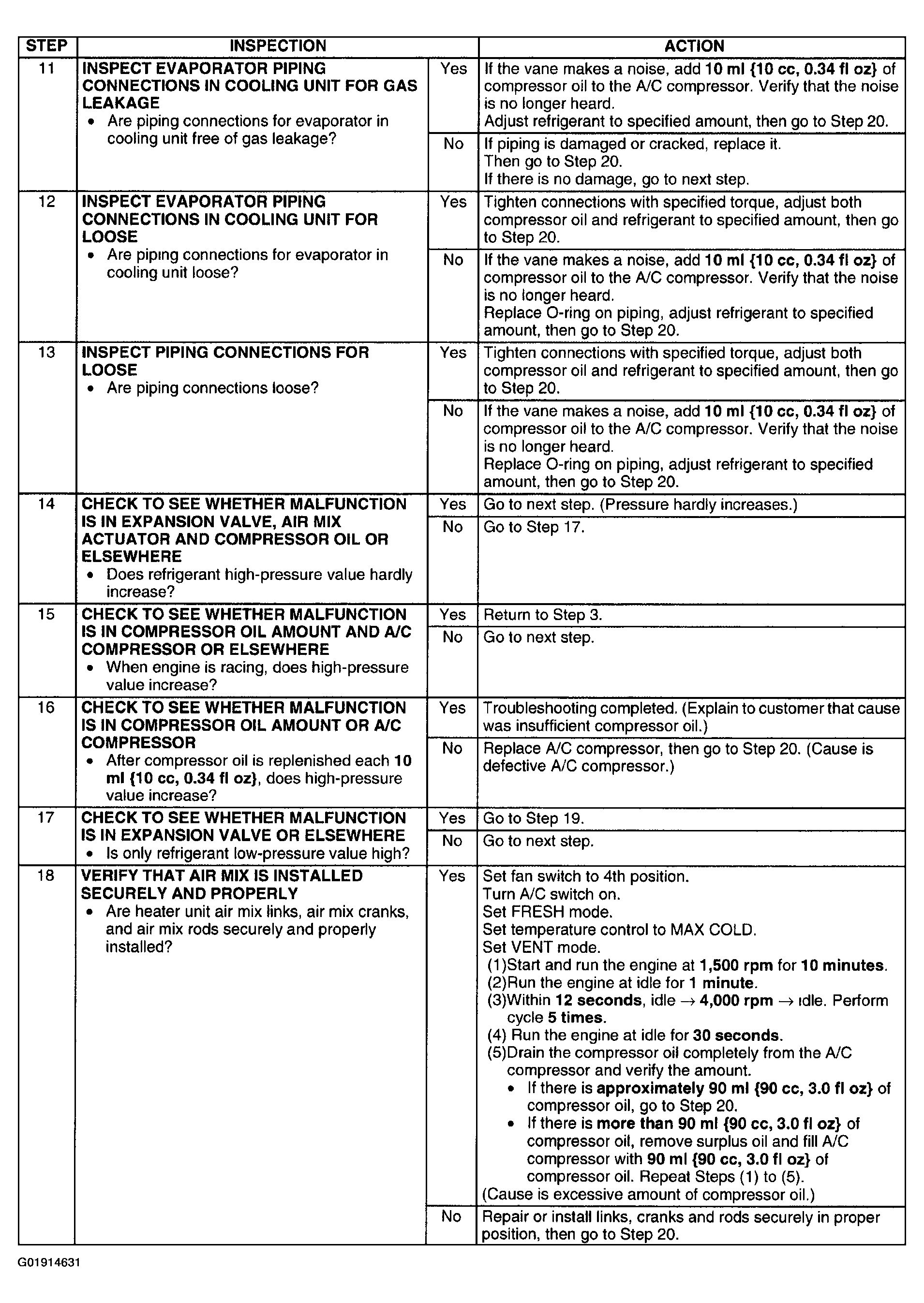

Fig 4: Diagnostic Procedure Chart - Air From Vents Not Cold Enough (Steps 11-18)
Courtesy of MAZDA MOTORS CORP.

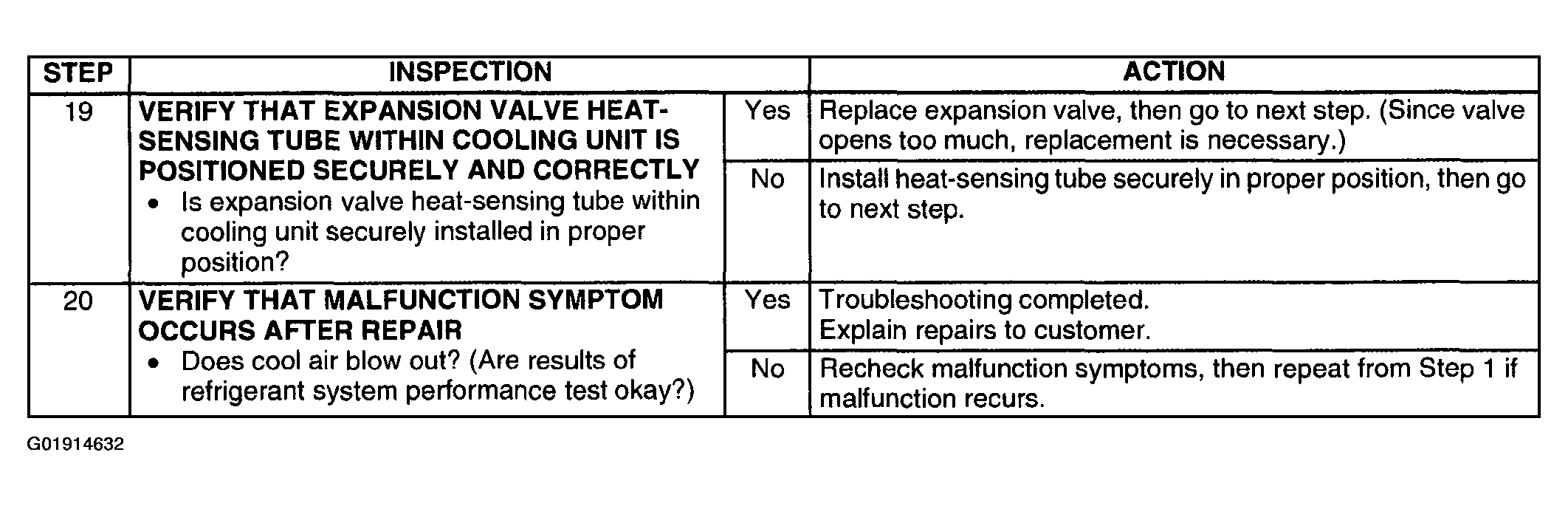

Fig 5: Diagnostic Procedure Chart - Air From Vents Not Cold Enough (Steps 19-20)
