No. 1 Insufficient Air (Or No Air) Blown From Vents

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

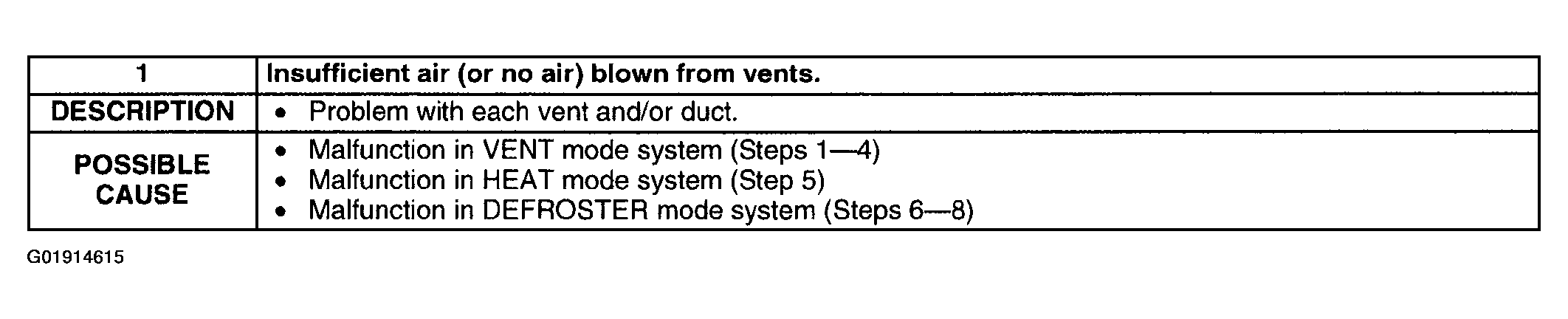

Fig 1: Troubleshooting Item Description Chart
G01914615Courtesy of MAZDA MOTORS CORP.

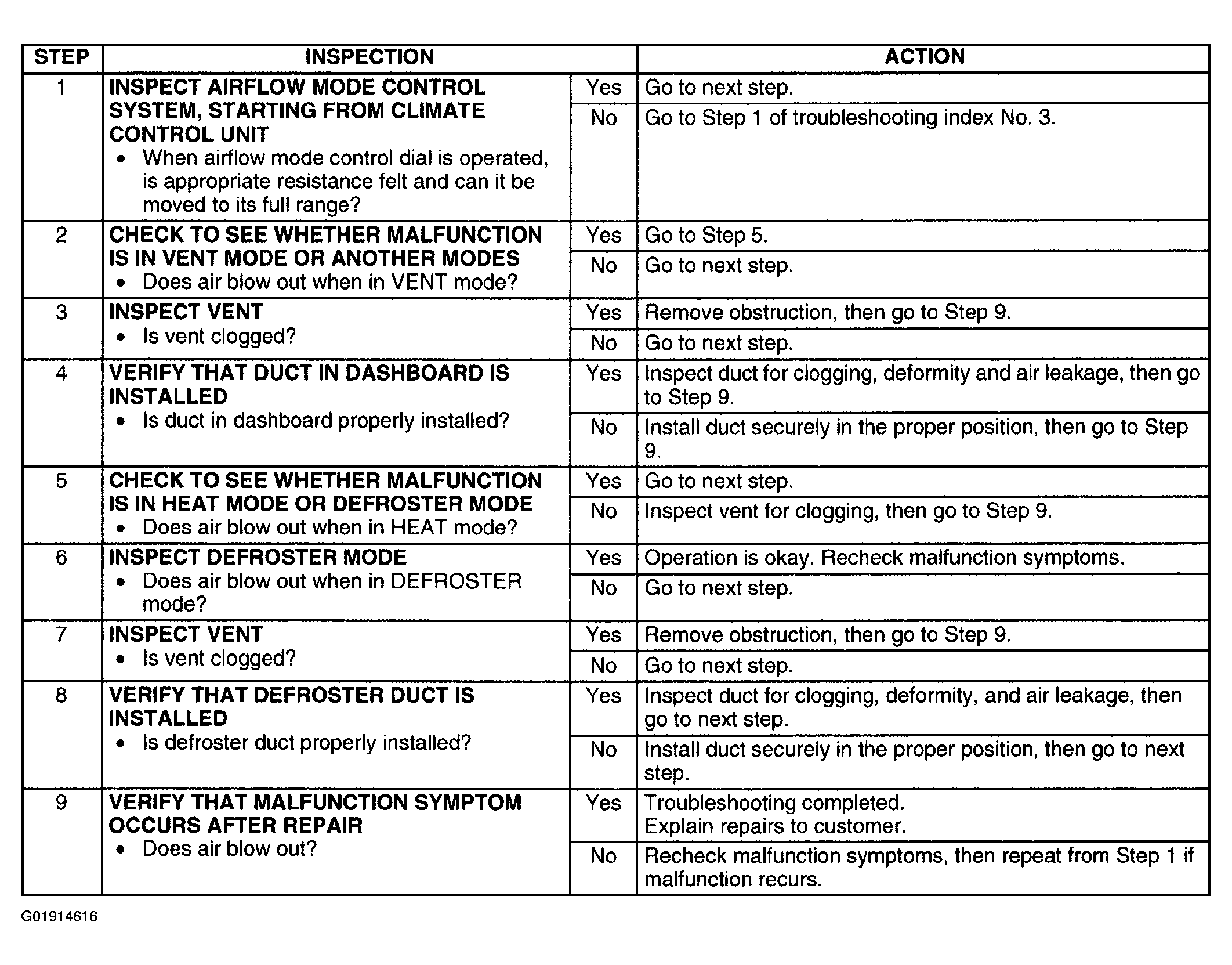

Fig 2: Diagnostic Procedure Chart - Insufficient Air (Or No Air) Blown From Vents
G01914616Courtesy of MAZDA MOTORS CORP.
