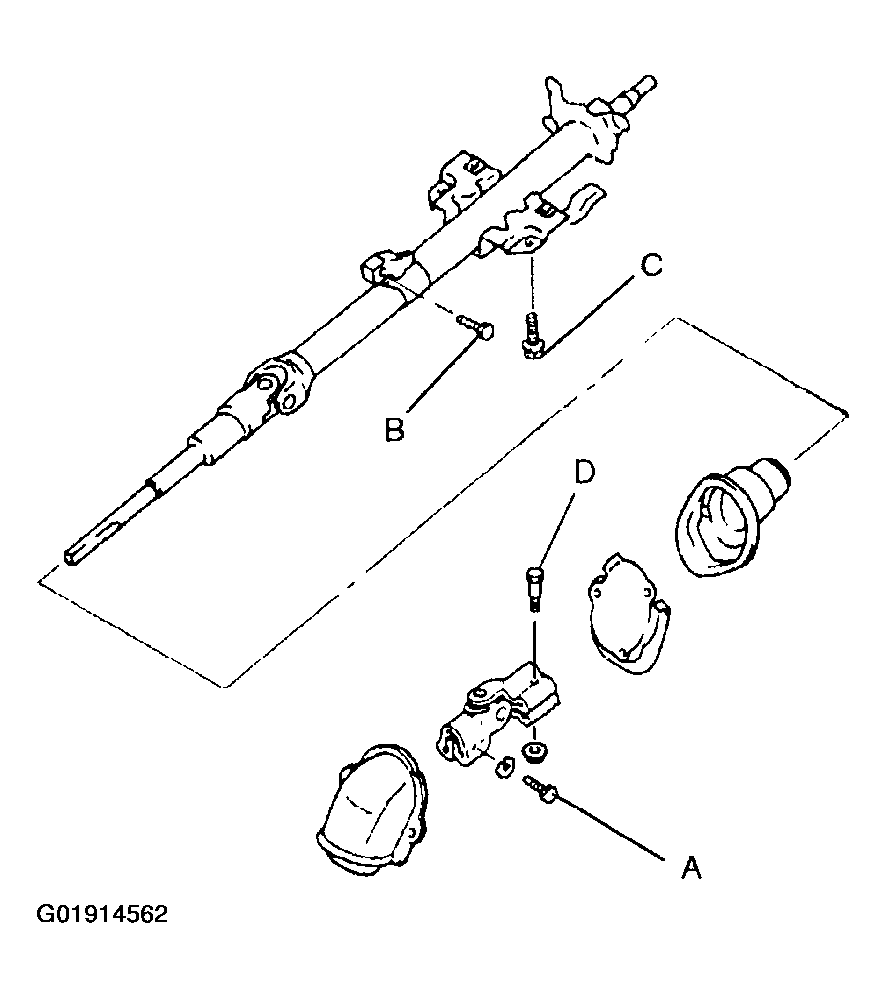

Steering Shaft Installation Note
WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Do not apply a shock in the axial direction of the shaft.
- Tighten bolt A.
- Tighten bolt C.
- Tighten bolt B.
- Release the adjusting lever, and lower the steering shaft to the lowest position.
- Tighten bolt D.
Courtesy of MAZDA MOTORS CORP.
