Steering Gear And Linkage Reassembly: Notes

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble in the order indicated in the figure.

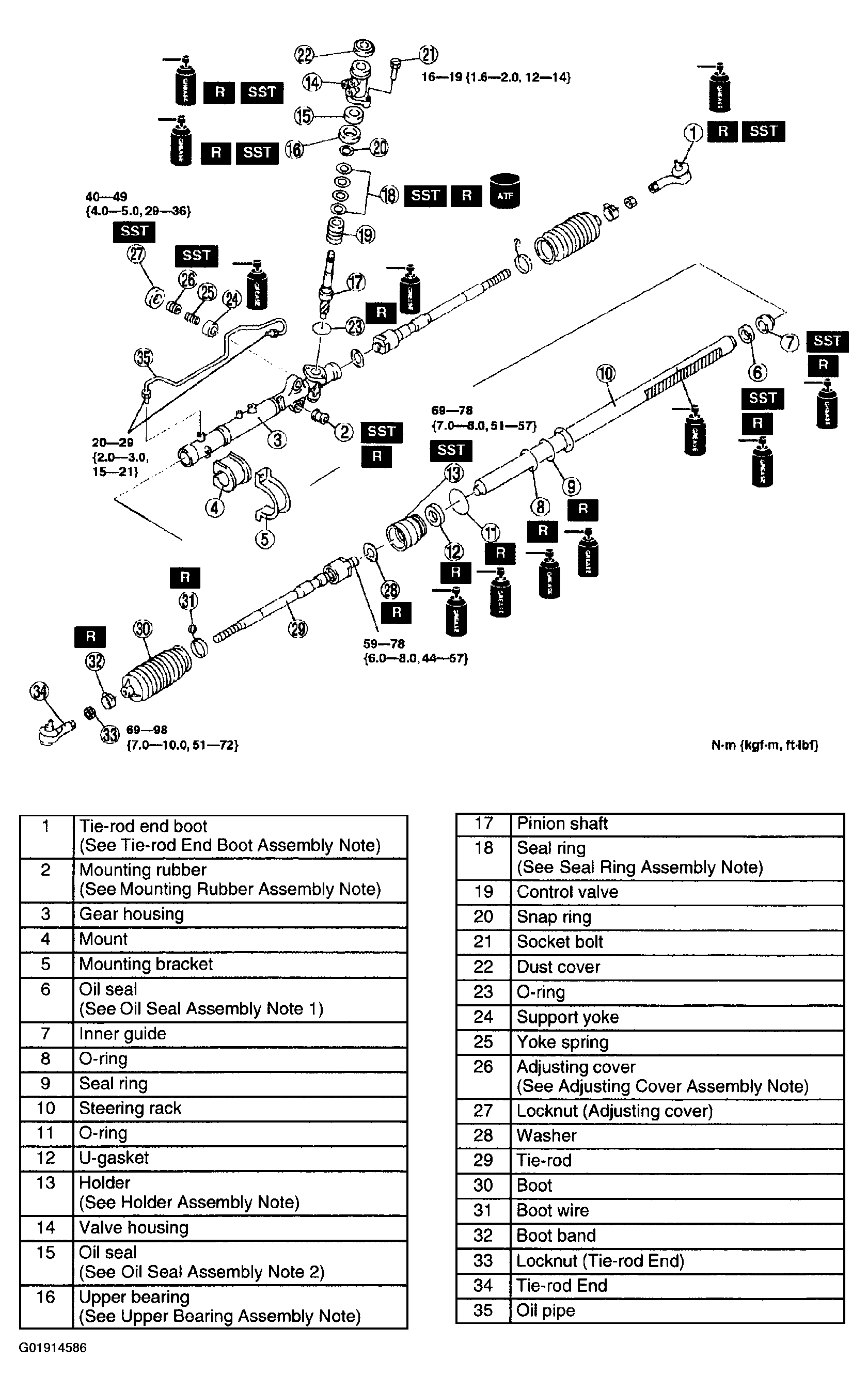

    Fig 1: Assembling Steering Gear And Linkage
    G01914586Courtesy of MAZDA MOTORS CORP.
