Steering Gear And Linkage Disassembly: Notes

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the figure.

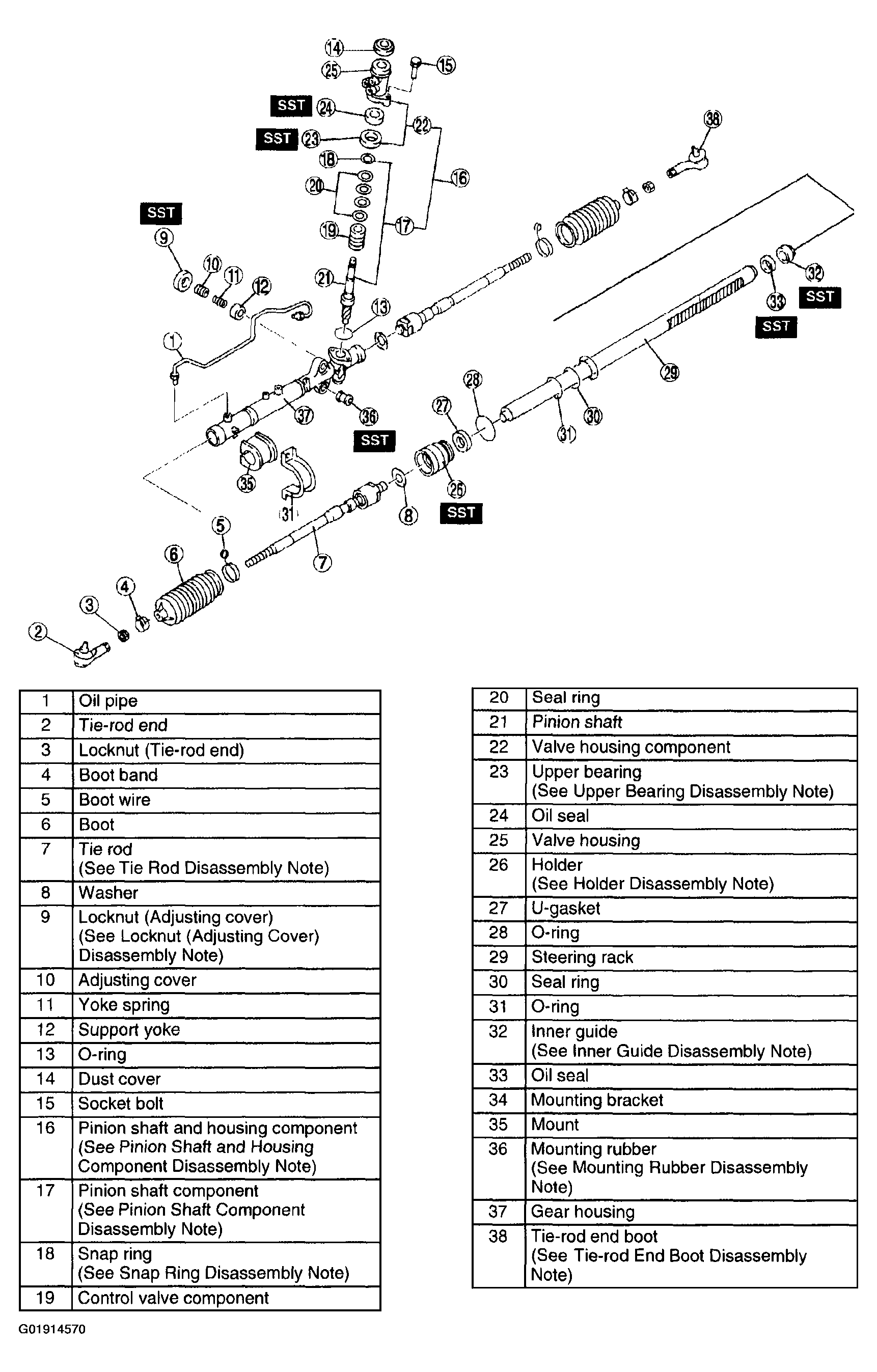

    Fig 1: Disassembling Steering Gear And Linkage
    G01914570Courtesy of MAZDA MOTORS CORP.
