Inner Guide Disassembly Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the SSTs  into the valve side.
  2. Install the SST  to the gear housing.
  3. Press the oil seal and inner guide out.

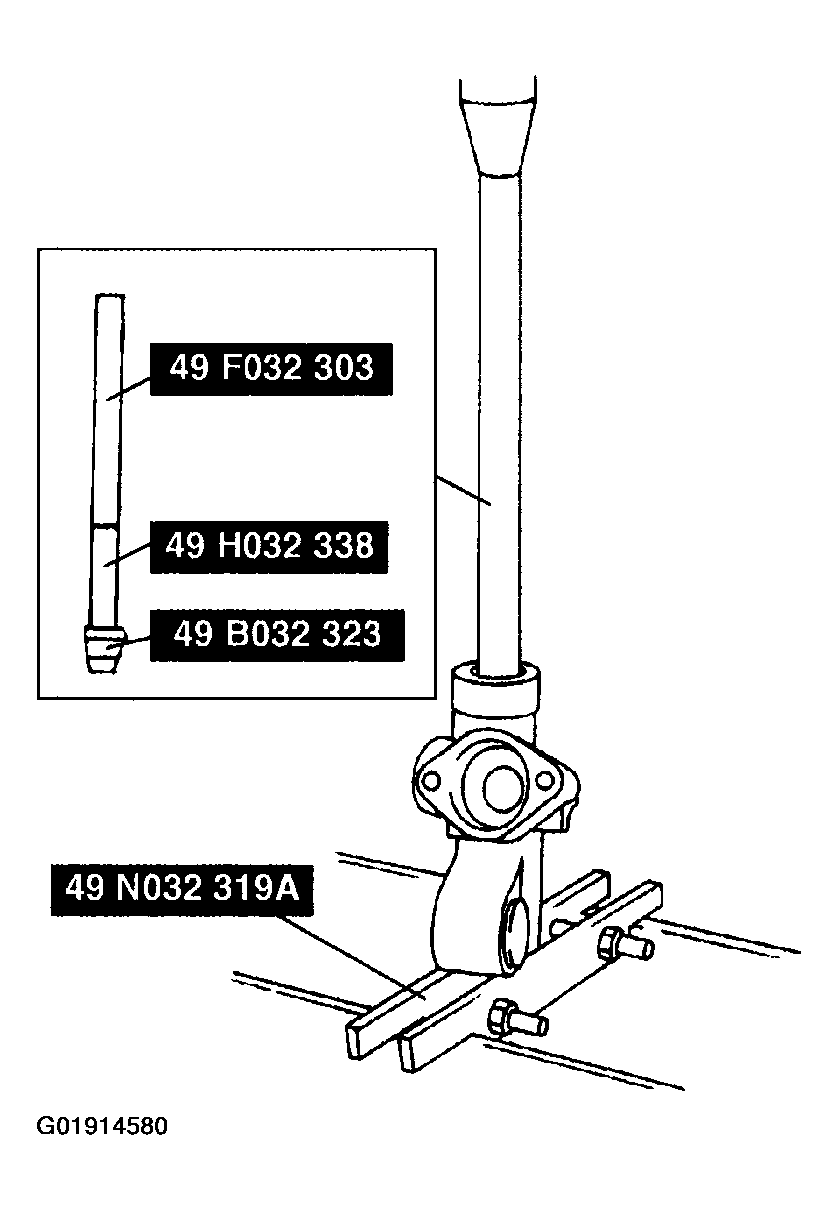

    Fig 1: Disassembling Inner Guide
    G01914580Courtesy of MAZDA MOTORS CORP.
