Selector Lever Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the center console.
  3. Disconnect the brake switch connector.
  4. Remove in the order indicated in the figure.
  5. Install in the reverse order of removal.

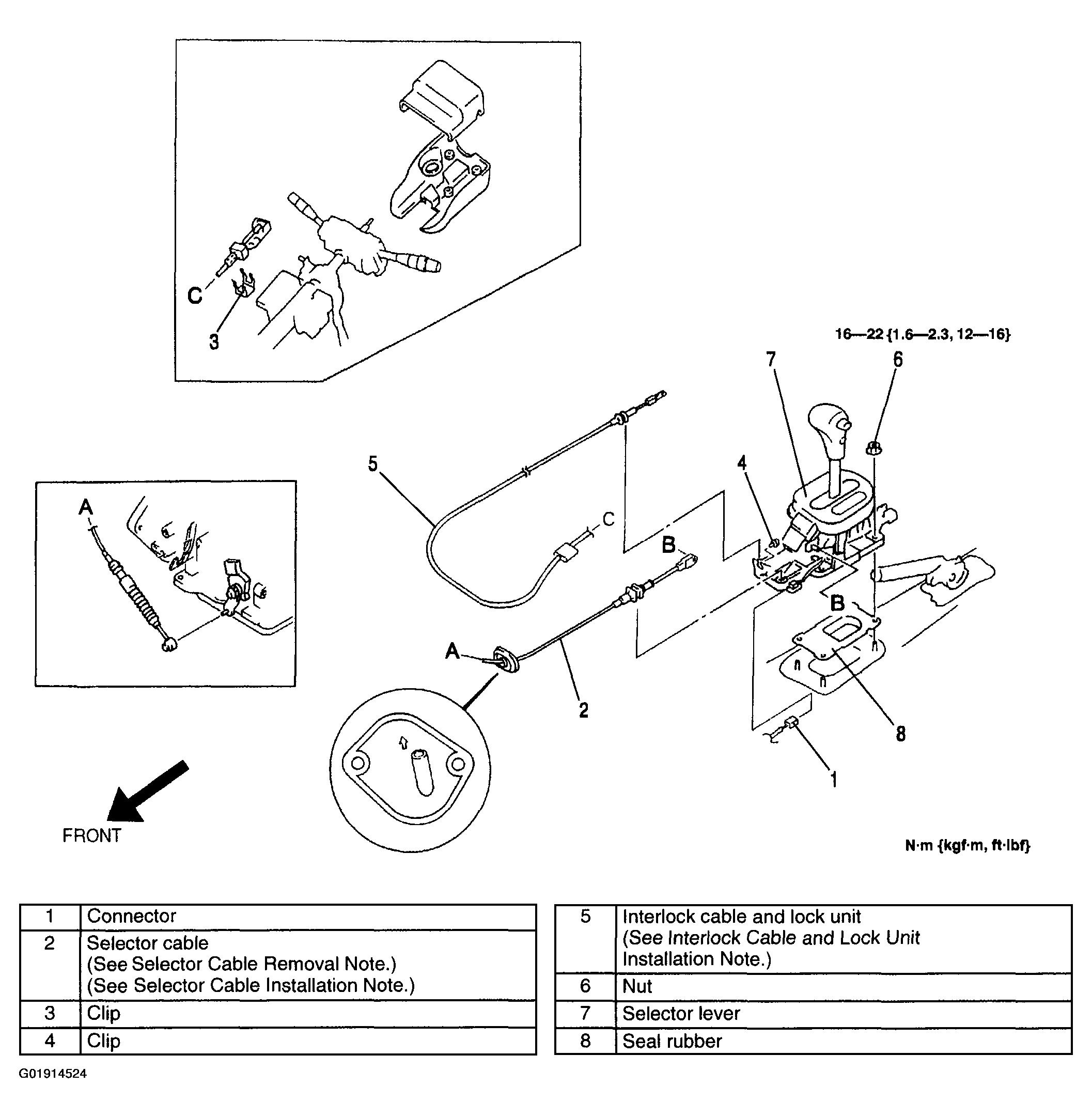

Fig 1: Removing Procedure Selector Lever - 4AT
G01914524Courtesy of MAZDA MOTORS CORP.

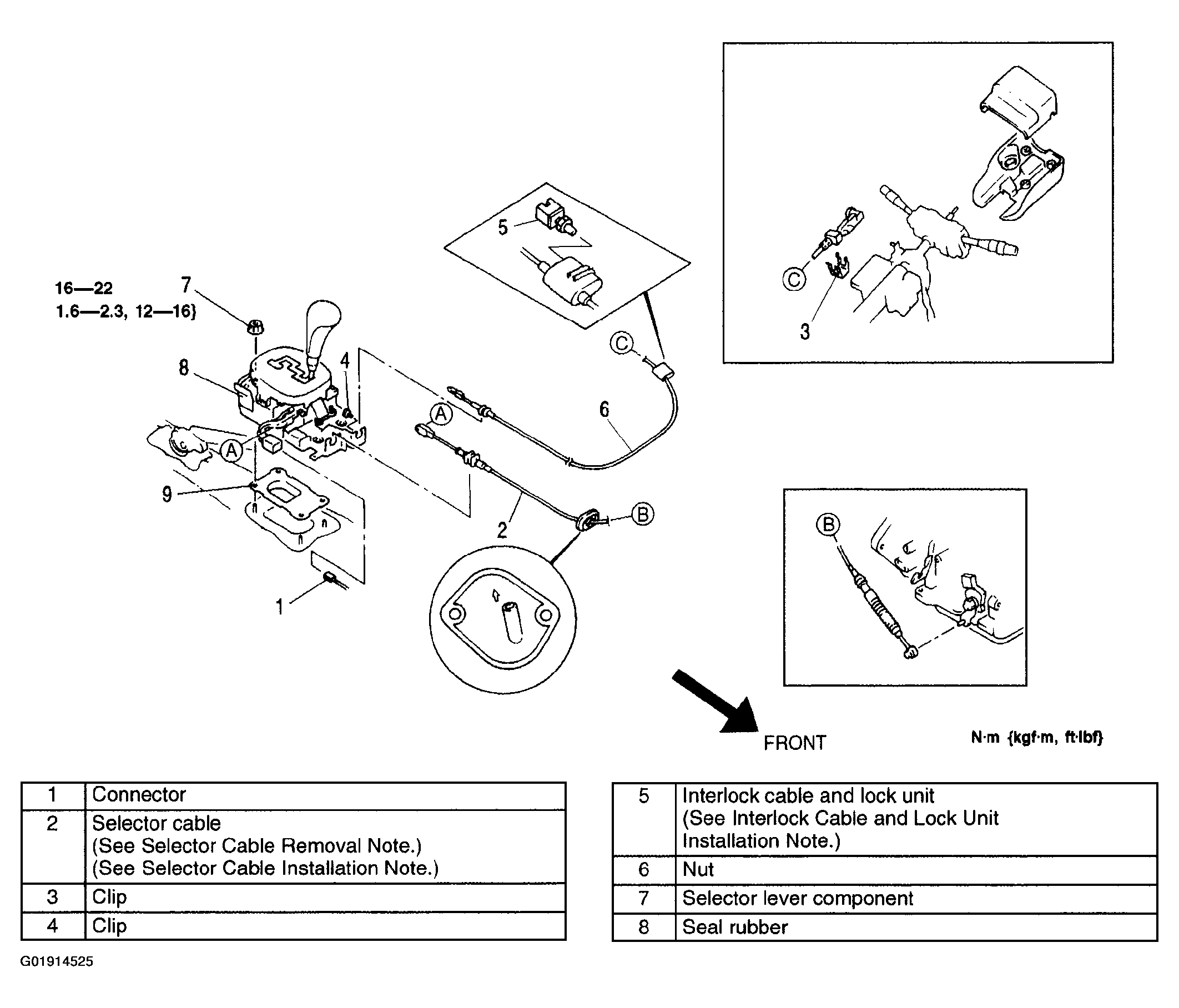

Fig 2: Removing Procedure Selector Lever - Sport AT
G01914525Courtesy of MAZDA MOTORS CORP.
