Selector Lever Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the figure.
Assemble in the reverse order of disassembly.

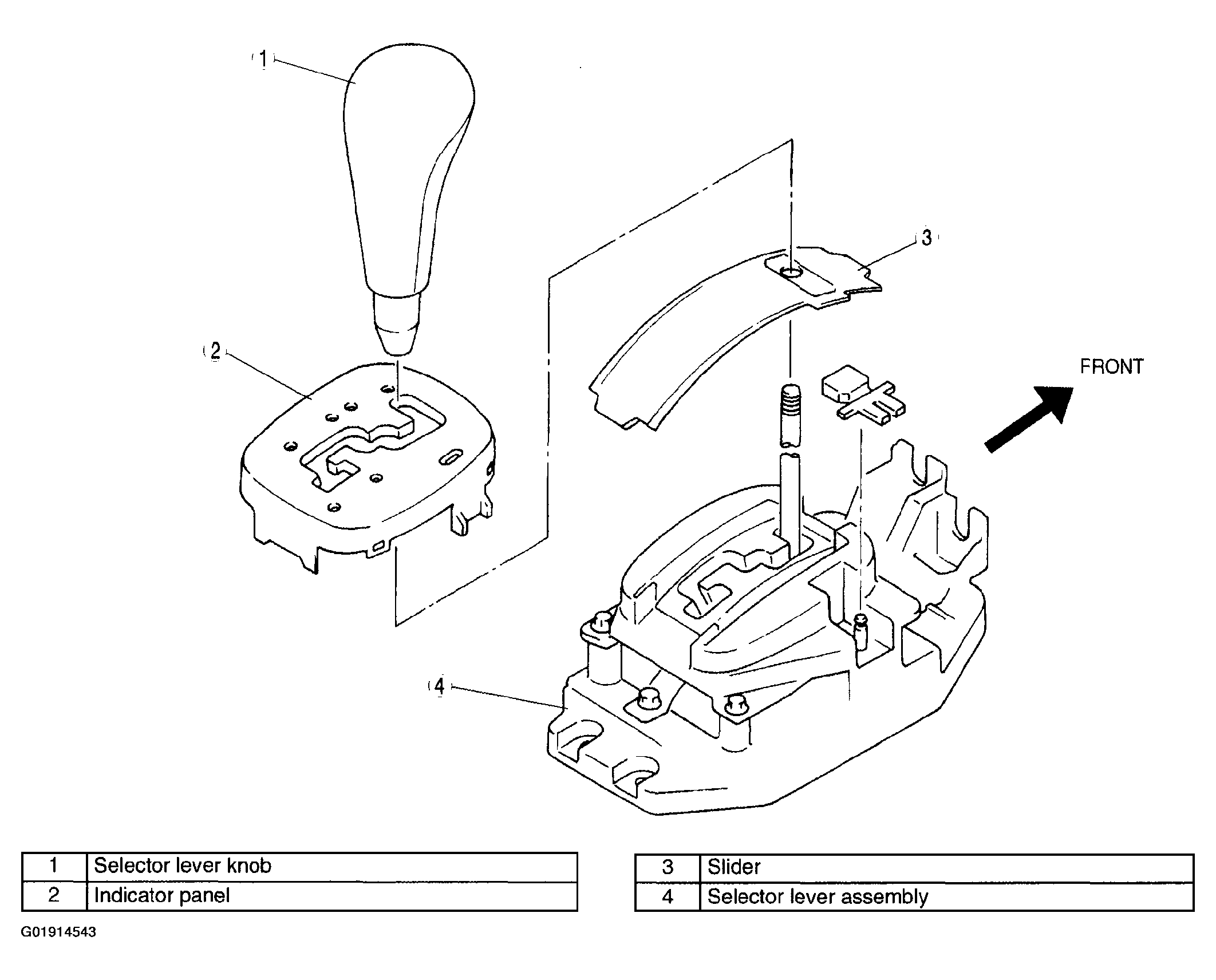

Fig 1: Exploded View Of Selector Lever - 4AT
Courtesy of MAZDA MOTORS CORP.

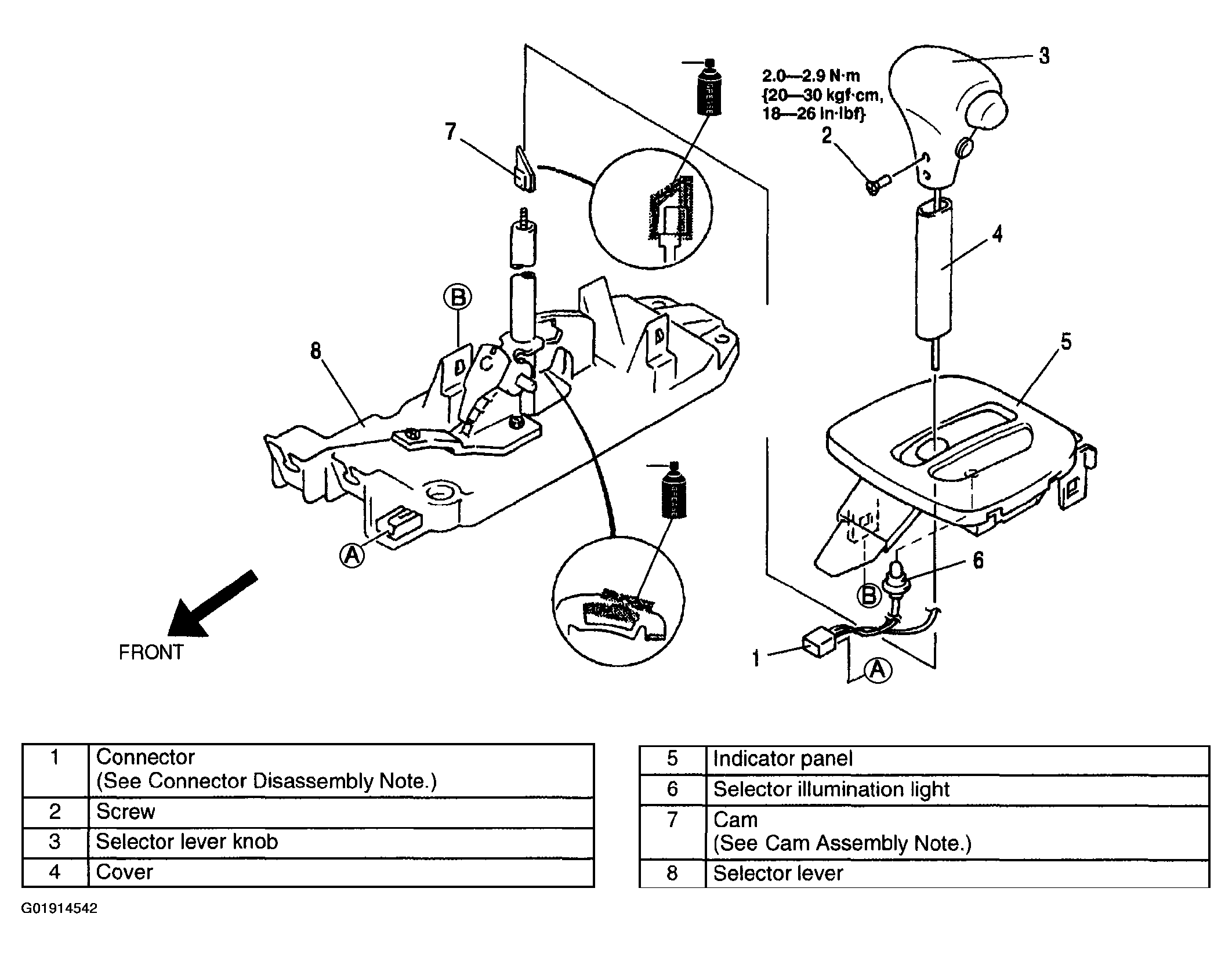

Fig 2: Exploded View Of Selector Lever - Sport AT
Courtesy of MAZDA MOTORS CORP.
