Flywheel Inspection

WARNING: This page is about a different car, the 2003 Mazda Protege5, 2003 Mazda Protege, 2002 Mazda Protege5, and 2002 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the contact surface for scoring, cracks, and burning.U3U51026
Remove minor scoring or burning using emery paper.
- Repair if scoring or burning is major.
- Replace if cracked.
Inspect the ring gear teeth for wear and damage.
- If worn or damaged, replace the flywheel.

  Fig 1: Removing Minor Scoring Or Burning Using Emery Paper
  Courtesy of MAZDA MOTORS CORP.
Install a dial indicator on the cylinder block.X3U510WB1
Measure the flywheel runout using a dial indicator.
- If the runout exceeds the maximum, replace the flywheel.
Runout

0.2 mm (0.008 in) max.

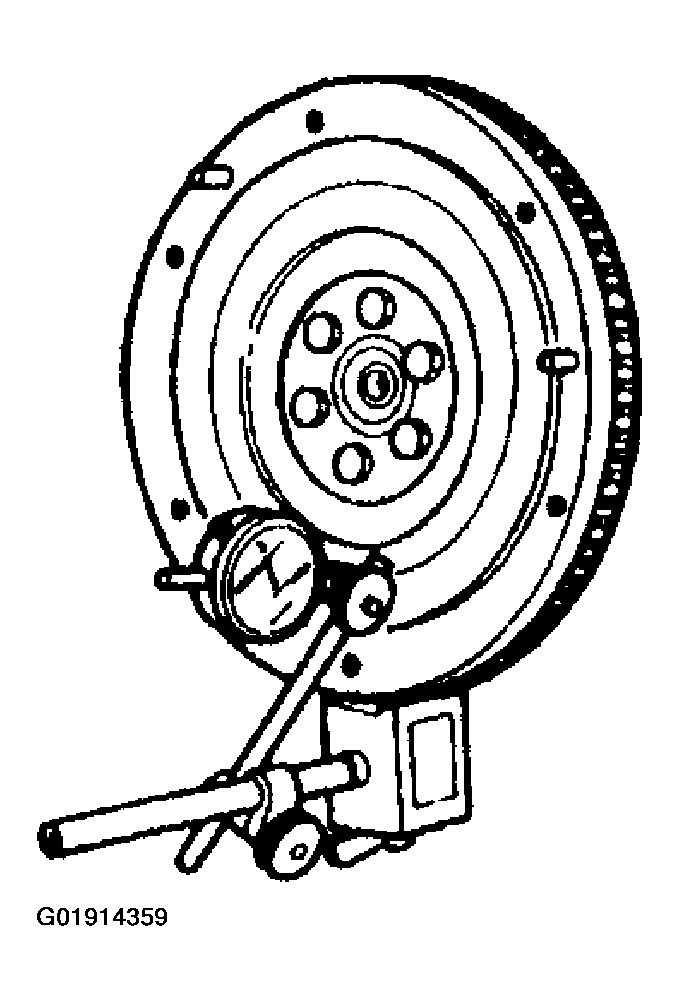

Fig 2: Measuring Flywheel Runout Using Dial Indicator
Courtesy of MAZDA MOTORS CORP.
