Pilot Bearing Installation Note

WARNING: This page is about a different car, the 2003 Mazda Protege5, 2003 Mazda Protege, 2002 Mazda Protege5, and 2002 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Install a new pilot bearing using the SST.
Bearing installation depth

0-0.4 mm (0-0.01 in)

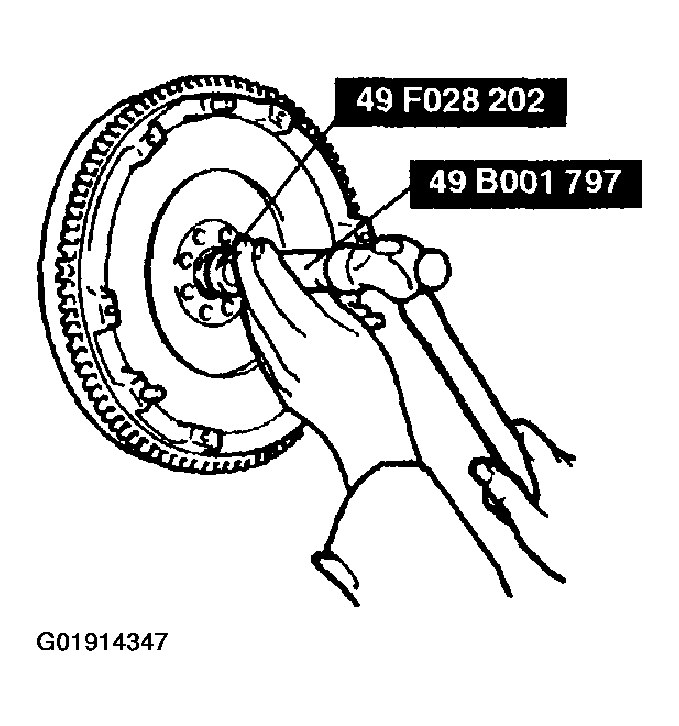

Fig 1: Installing New Pilot Bearing Using SST
Courtesy of MAZDA MOTORS CORP.
