Clutch Unit Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda Protege5, 2003 Mazda Protege, 2002 Mazda Protege5, and 2002 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

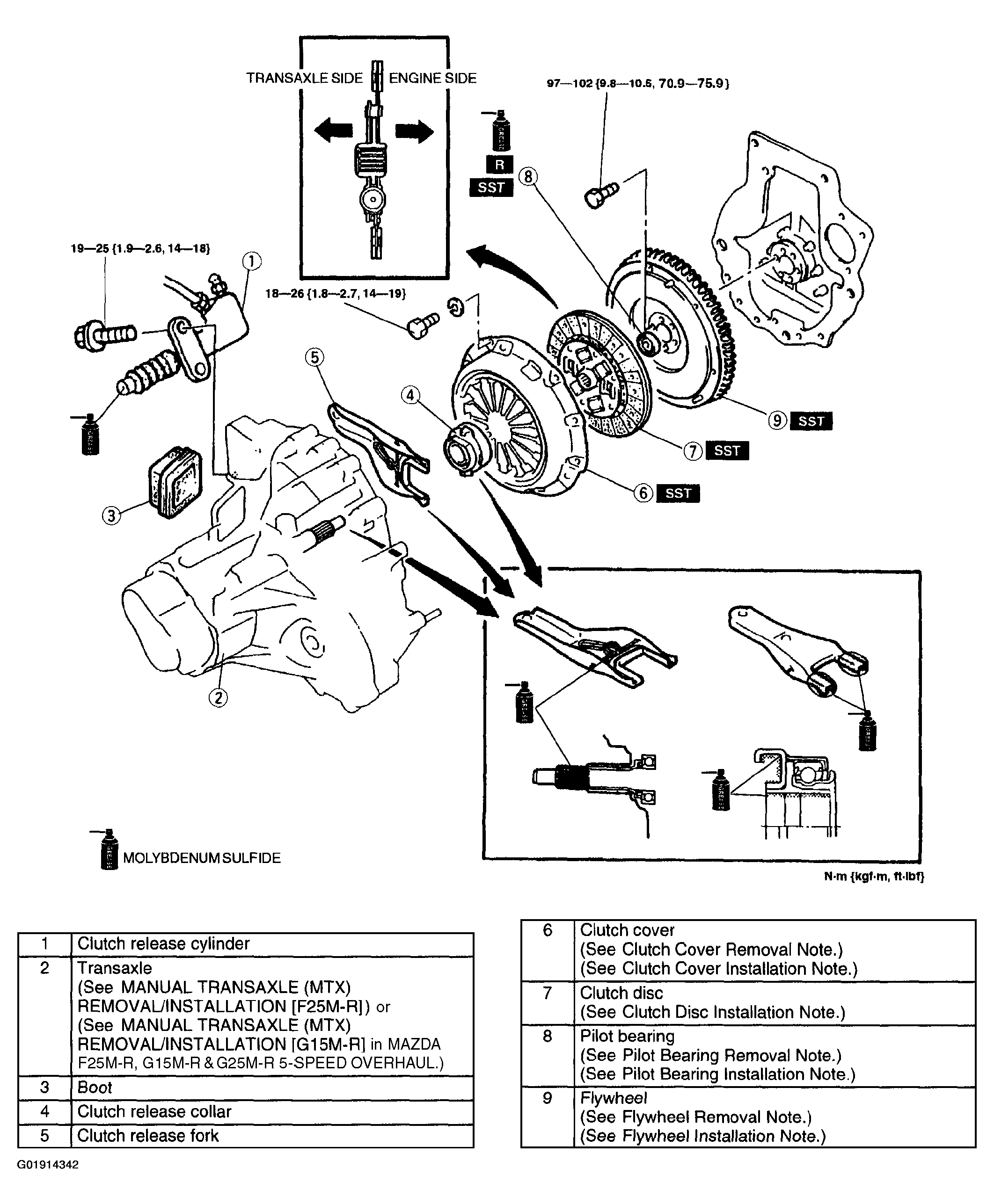

    Fig 1: Exploded View Of Clutch
    G01914342Courtesy of MAZDA MOTORS CORP.
