Clutch Cover Removal Note

WARNING: This page is about a different car, the 2003 Mazda Protege5, 2003 Mazda Protege, 2002 Mazda Protege5, and 2002 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the SSTs.
  2. Loosen each bolt one turn at a time in a crisscross pattern until the spring tension is released.
  3. Remove the clutch cover and disc.

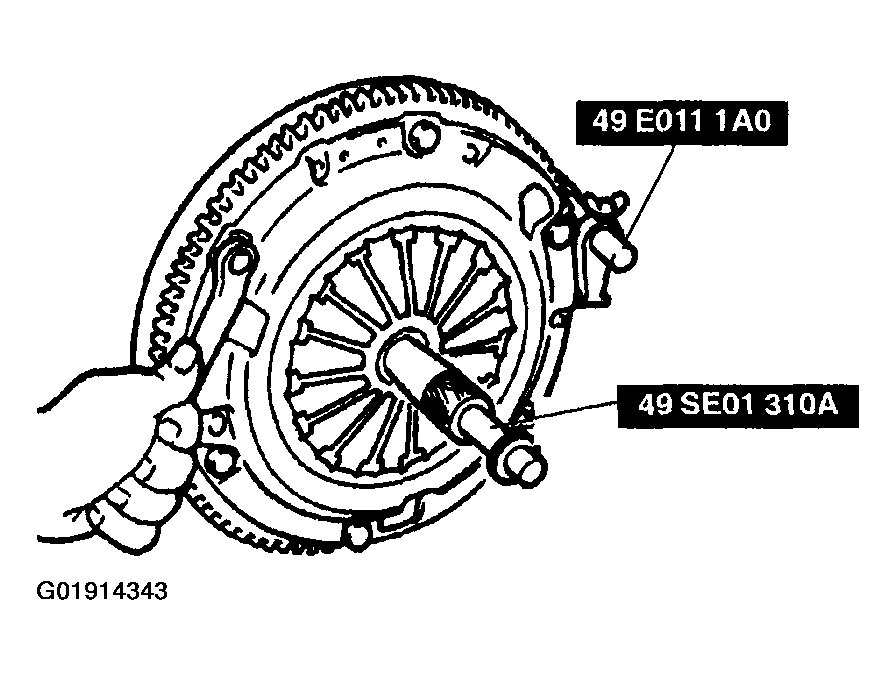

    Fig 1: Removing Procedure Clutch Cover
    G01914343Courtesy of MAZDA MOTORS CORP.
