Clutch Cover Installation Note

WARNING: This page is about a different car, the 2003 Mazda Protege5, 2003 Mazda Protege, 2002 Mazda Protege5, and 2002 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the SSTs.
  2. Tighten the bolts evenly and gradually in the pattern shown.

    Tightening torque

    18-26 N.m (14-19 ft.lbf)

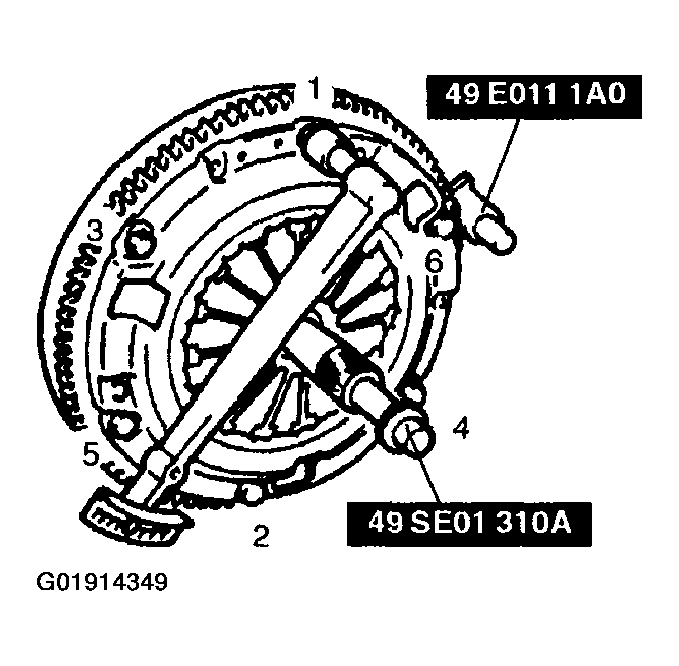

    Fig 1: Installing SST
    G01914349Courtesy of MAZDA MOTORS CORP.
