Clutch Release Cylinder Disassembly/Assembly
WARNING: This page is about a different car, the 2003 Mazda Protege5, 2003 Mazda Protege, 2002 Mazda Protege5, and 2002 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

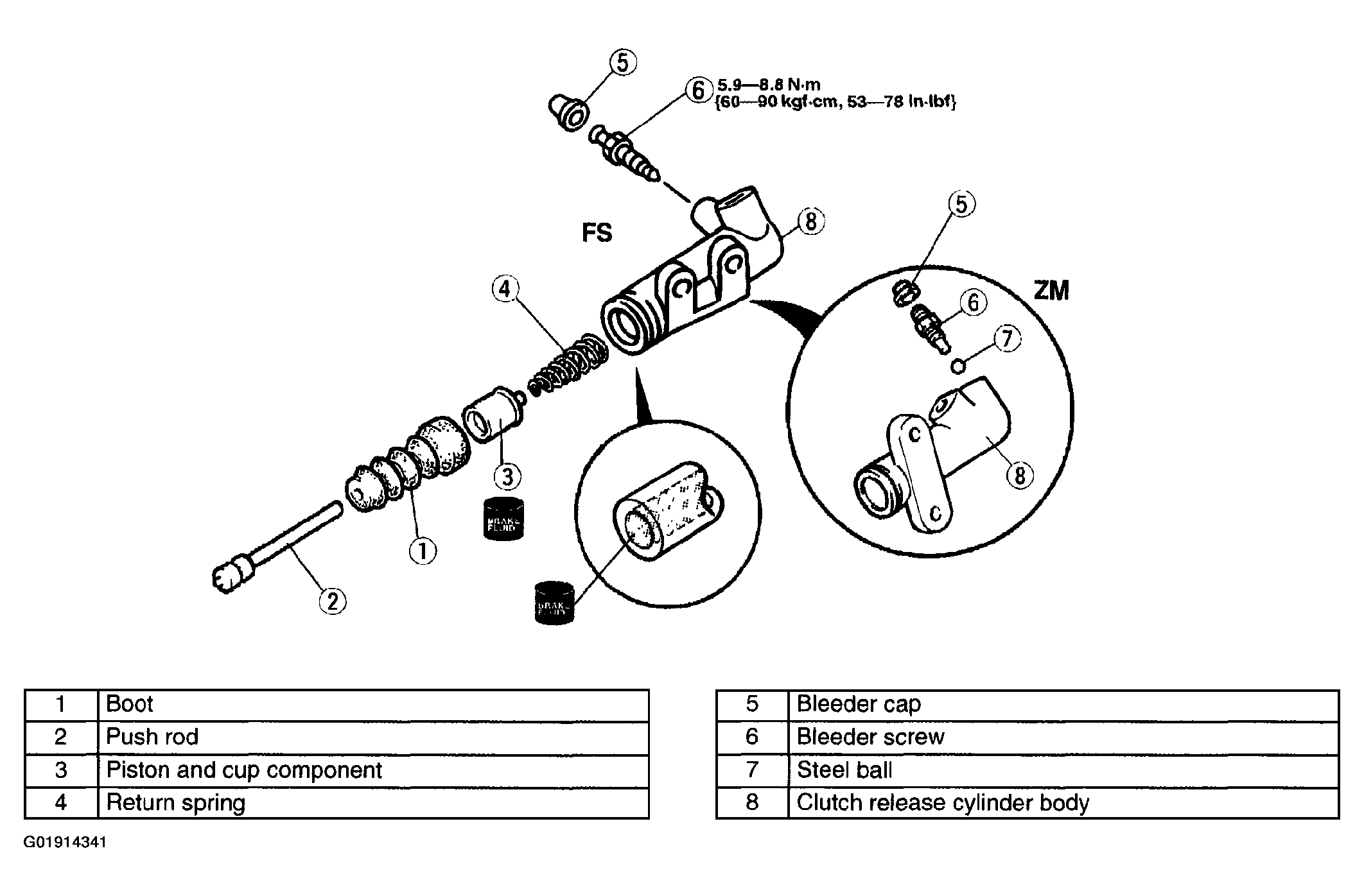

- Disassemble in the order indicated in the table.WARNING:
- Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eye wear whenever using compressed air.
- Wipe all parts, and use compressed air to clean all ports, passages, and inner parts.
- Assemble in the reverse order of disassembly.
