Clutch Pedal Free Play Inspection
WARNING: This page is about a different car, the 2003 Mazda Protege5, 2003 Mazda Protege, 2002 Mazda Protege5, and 2002 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

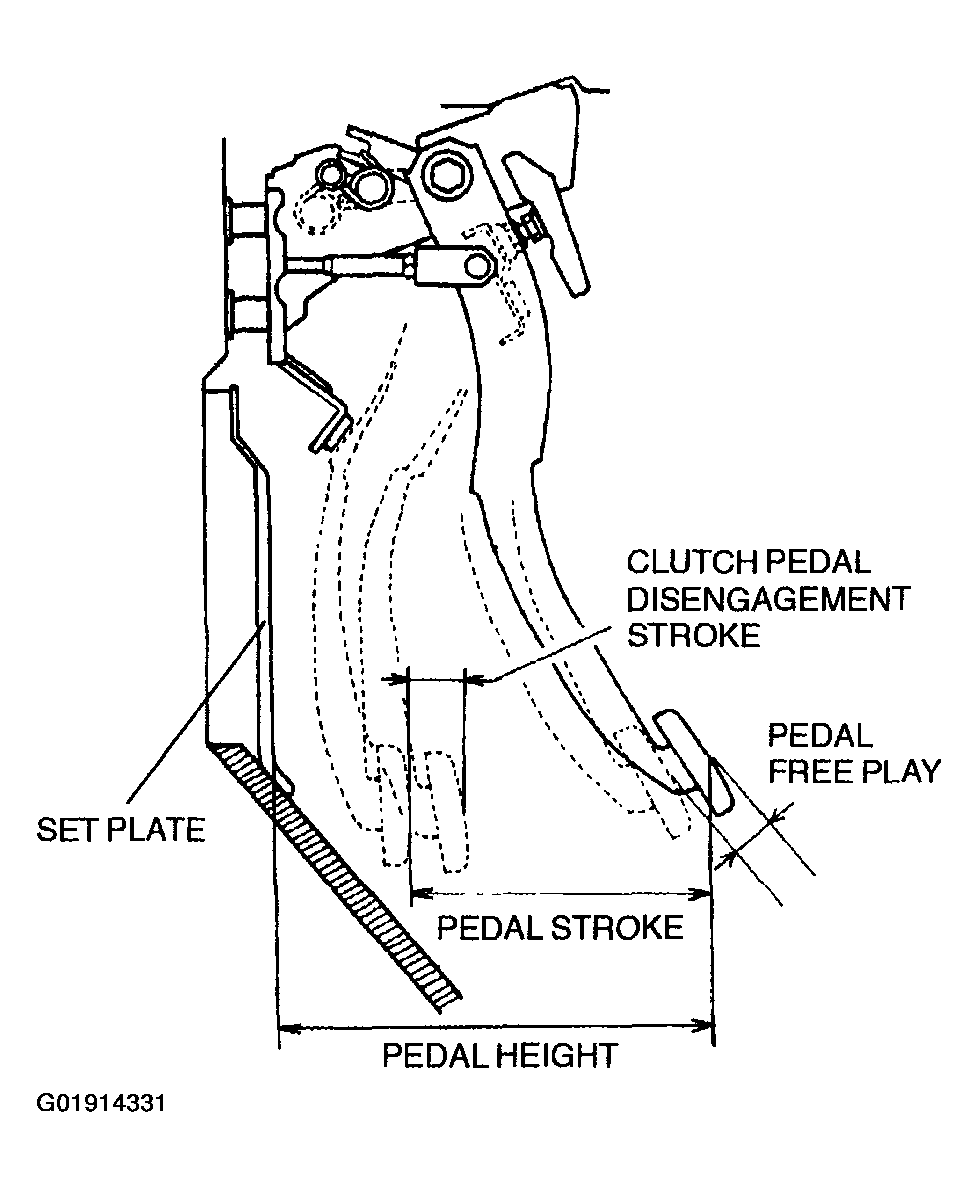

- Depress the clutch pedal by hand until clutch resistance is felt, and measure the pedal free play.
- If not as specified, adjust the clutch pedal free play.
Free play
0.7-3.5 mm (0.03-0.13 in)
Total free play
5.6-15.0 mm (0.23-0.59 in)
