Clutch Pedal Disengagement Stroke
WARNING: This page is about a different car, the 2003 Mazda Protege5, 2003 Mazda Protege, 2002 Mazda Protege5, and 2002 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

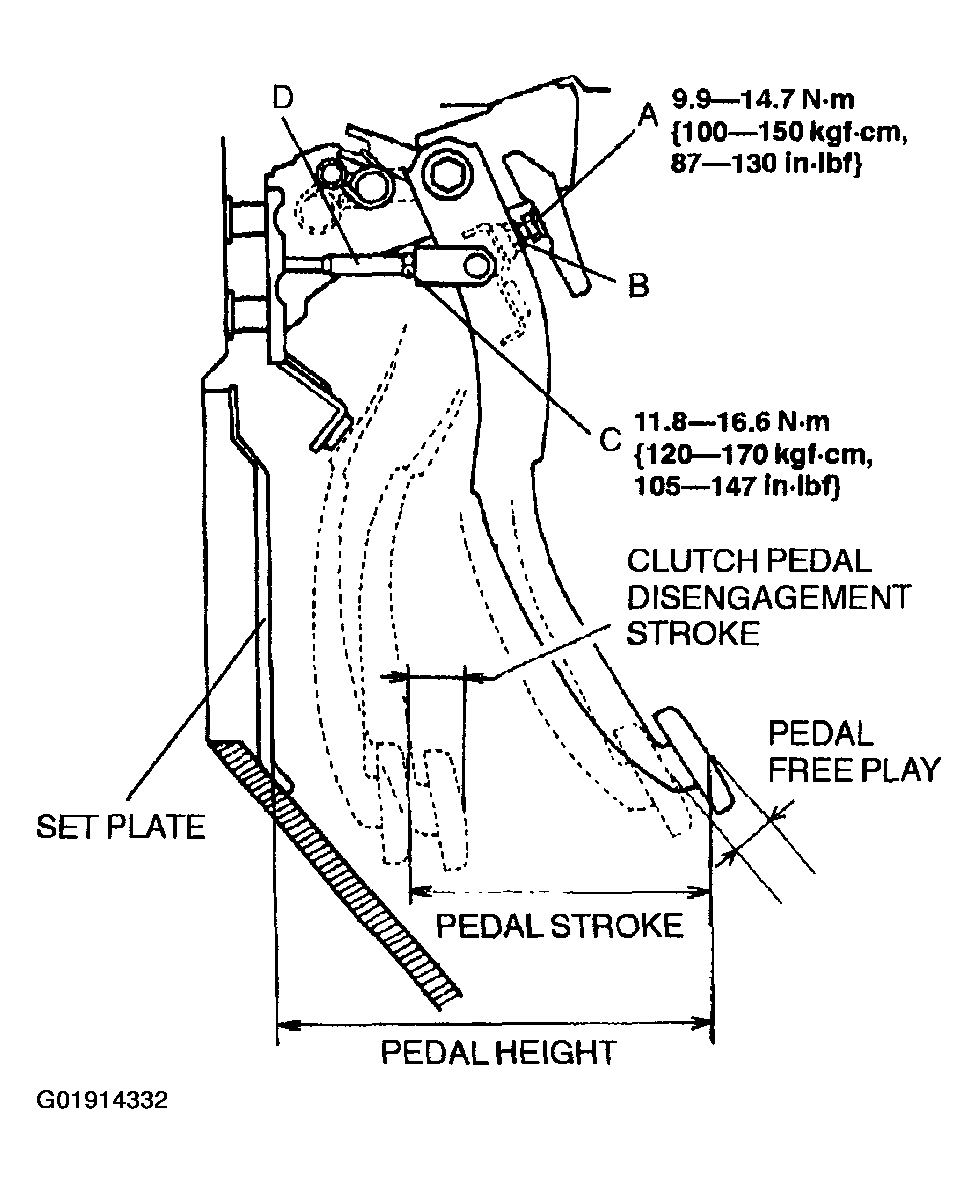

- Measure the clutch pedal disengagement stroke.
- If the clutch pedal disengagement stroke is not within the specification, adjust the pedal height and pedal free play, and verify the pedal stroke.
Clutch pedal disengagement stroke
45-55 mm (1.8-2.1 in) (reference value)
Pedal stroke
130-140 mm (5.12-5.51 in) (reference value)
