Clutch Fluid Inspection

WARNING: This page is about a different car, the 2003 Mazda Protege5, 2003 Mazda Protege, 2002 Mazda Protege5, and 2002 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • A common reservoir is used for the clutch and brake system fluid.
  • The fluid in the reservoir must be maintained between the MIN/MAX  level during replacement.

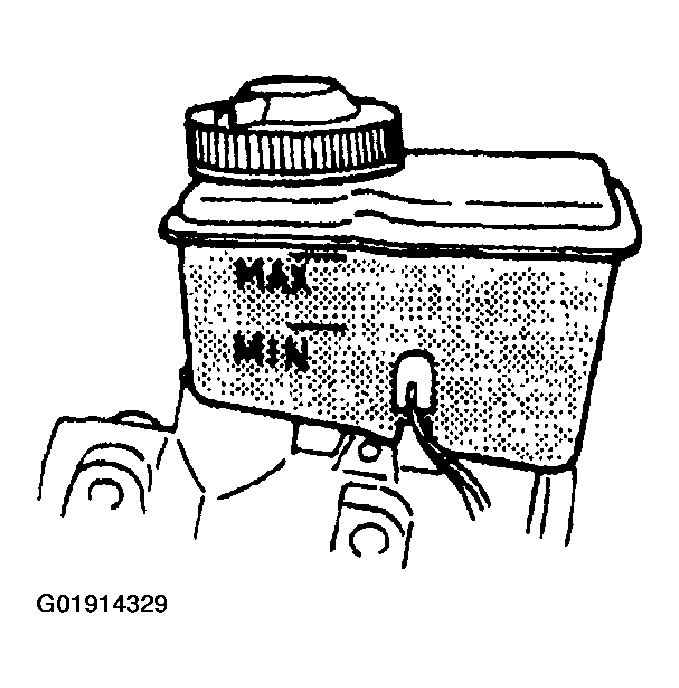

Fig 1: Inspection Clutch Fluid Level
G01914329Courtesy of MAZDA MOTORS CORP.
