Clutch Disc Inspection

WARNING: This page is about a different car, the 2003 Mazda Protege5, 2003 Mazda Protege, 2002 Mazda Protege5, and 2002 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the contact surface of the clutch disc for scoring, cracks, burning, and oil contamination.U3U51021
Remove minor scoring or burning using emery paper.
- Repair if scoring or burning is major.
- Replace if cracked or contaminated with oil.
Inspect for loose facing rivets and dampers.
- If the clutch disc is loose, replace the clutch disc.

  Fig 1: Removing Minor Scoring Or Burning Using Emery Paper
  Courtesy of MAZDA MOTORS CORP.
Using vernier calipers, measure the thickness of the lining at a rivet head on both sides.
- If the thickness of the lining at any rivet head is less than the minimum, replace the clutch disc.
Thickness

0.3 mm (0.012 in) min.

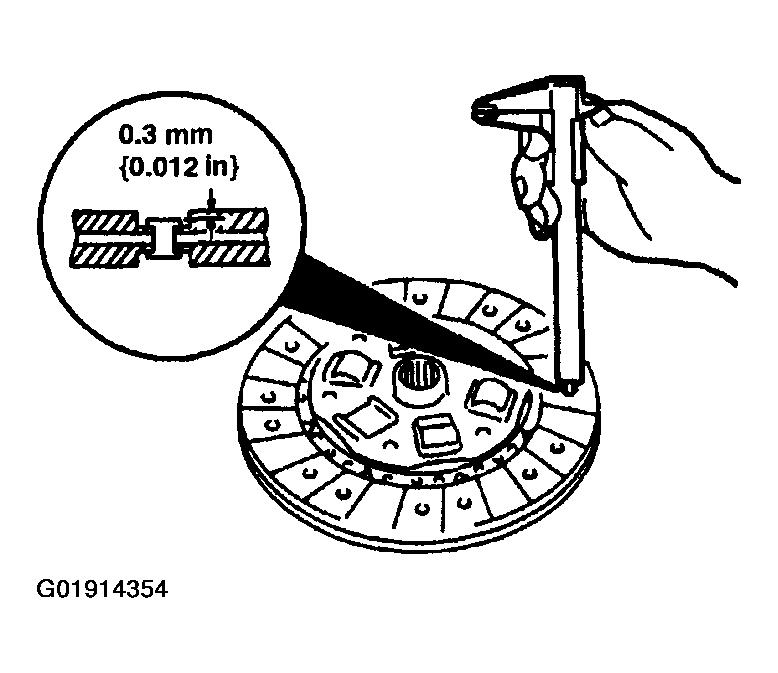

Fig 2: Measuring Thickness Of Lining At A Rivet Head On Both Sides
Courtesy of MAZDA MOTORS CORP.
Measure the clutch disc runout using a dial indicator.
- If the runout exceeds the maximum, replace the clutch disc.
Runout

0.7 mm (0.028 in) max.

Fig 3: Measuring Clutch Disc Runout Using Dial Indicator
Courtesy of MAZDA MOTORS CORP.
