No.24 Engine Stalls When Shifted To D, 2*, 1* Ranges, Or In R Position
WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

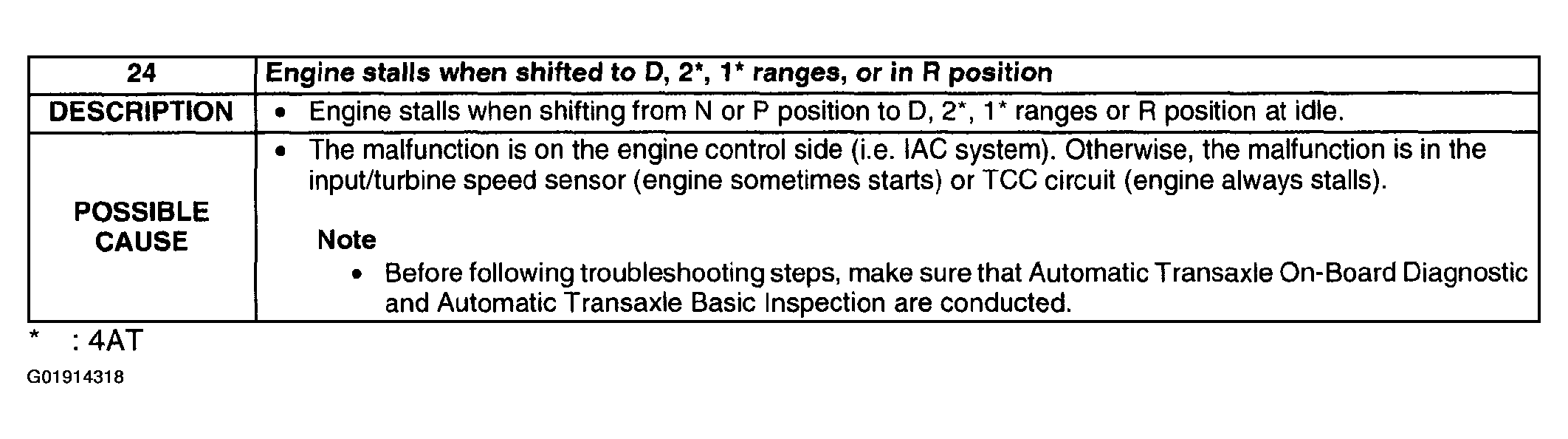

Fig 1: Description & Possible Cause - Engine Stalls When Shifted To D, 2*, 1* Ranges, Or In R Position (1 Of 2)

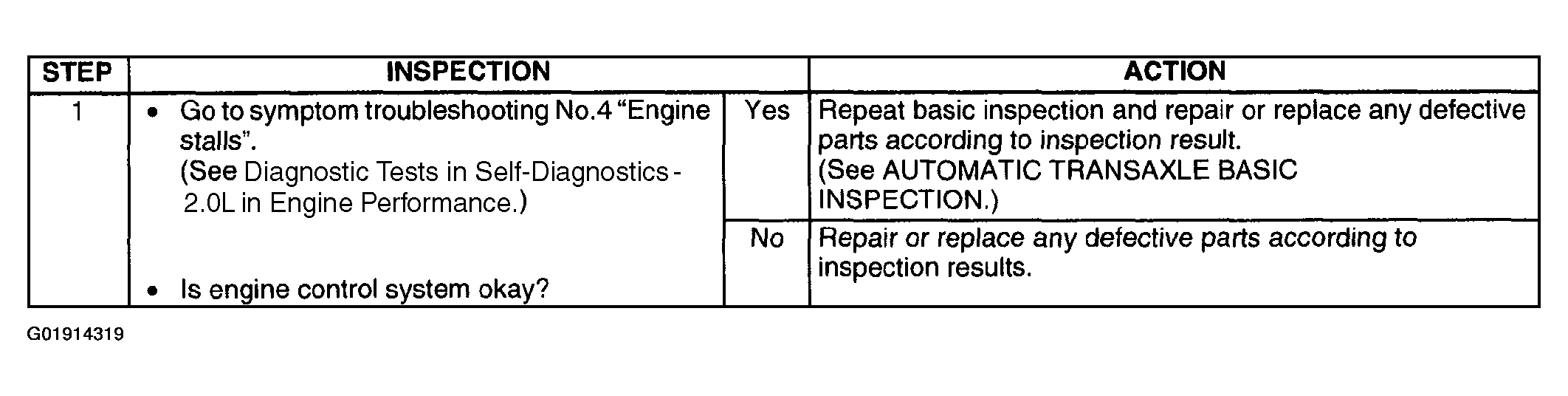

Fig 2: Diagnostic Procedure - Engine Stalls When Shifted To D, 2*, 1* Ranges, Or In R Position (2 Of 2)
NOTE:
- If malfunction remains, inspect related Service Bulletins and perform repair or diagnosis.
- If vehicle is repaired, troubleshooting is completed.
- If vehicle is not repaired or additional diagnostic information is not available, replace PCM.
