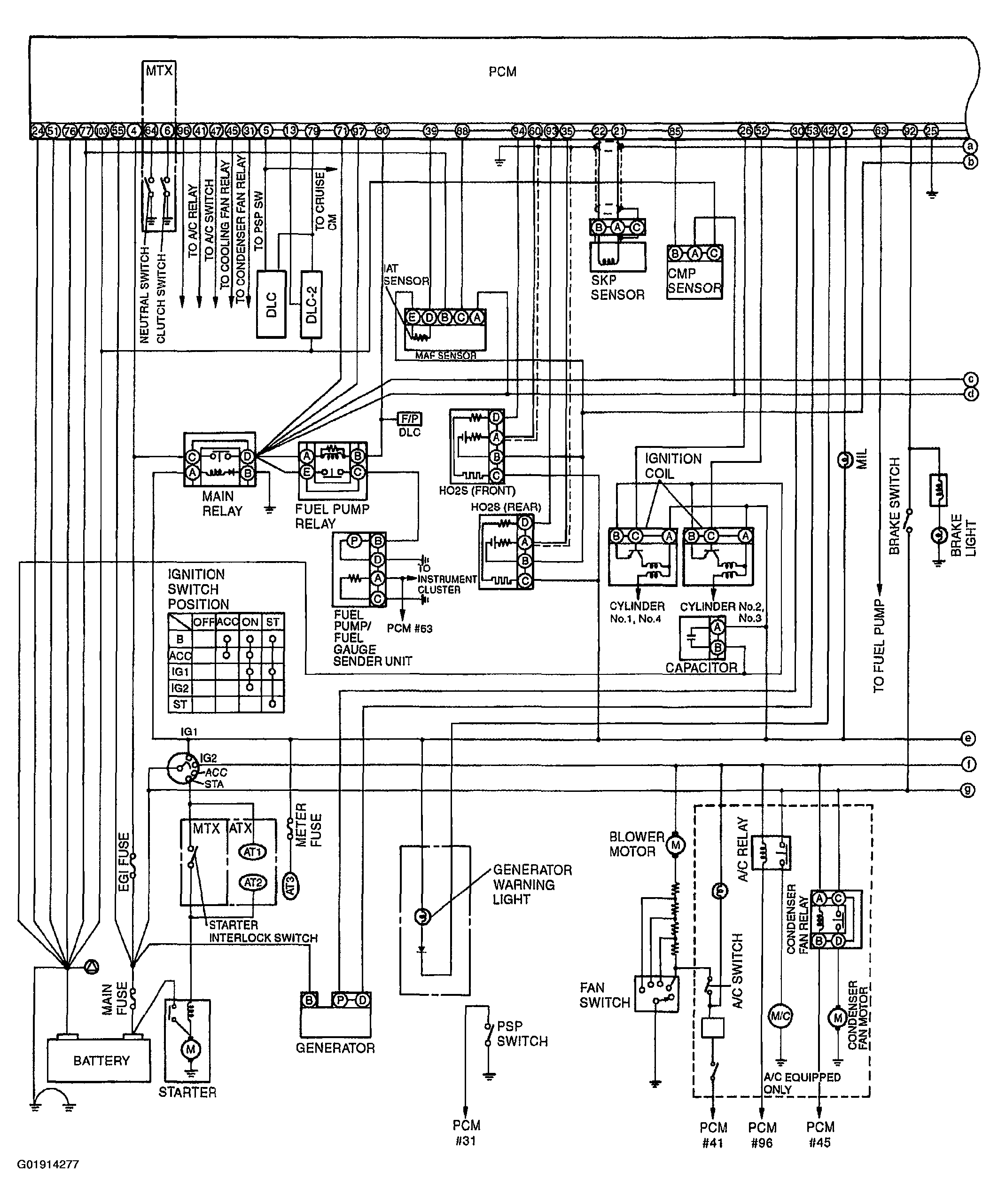

Fig 1: Automatic Transaxle System Wiring Diagram - ZM Engine (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

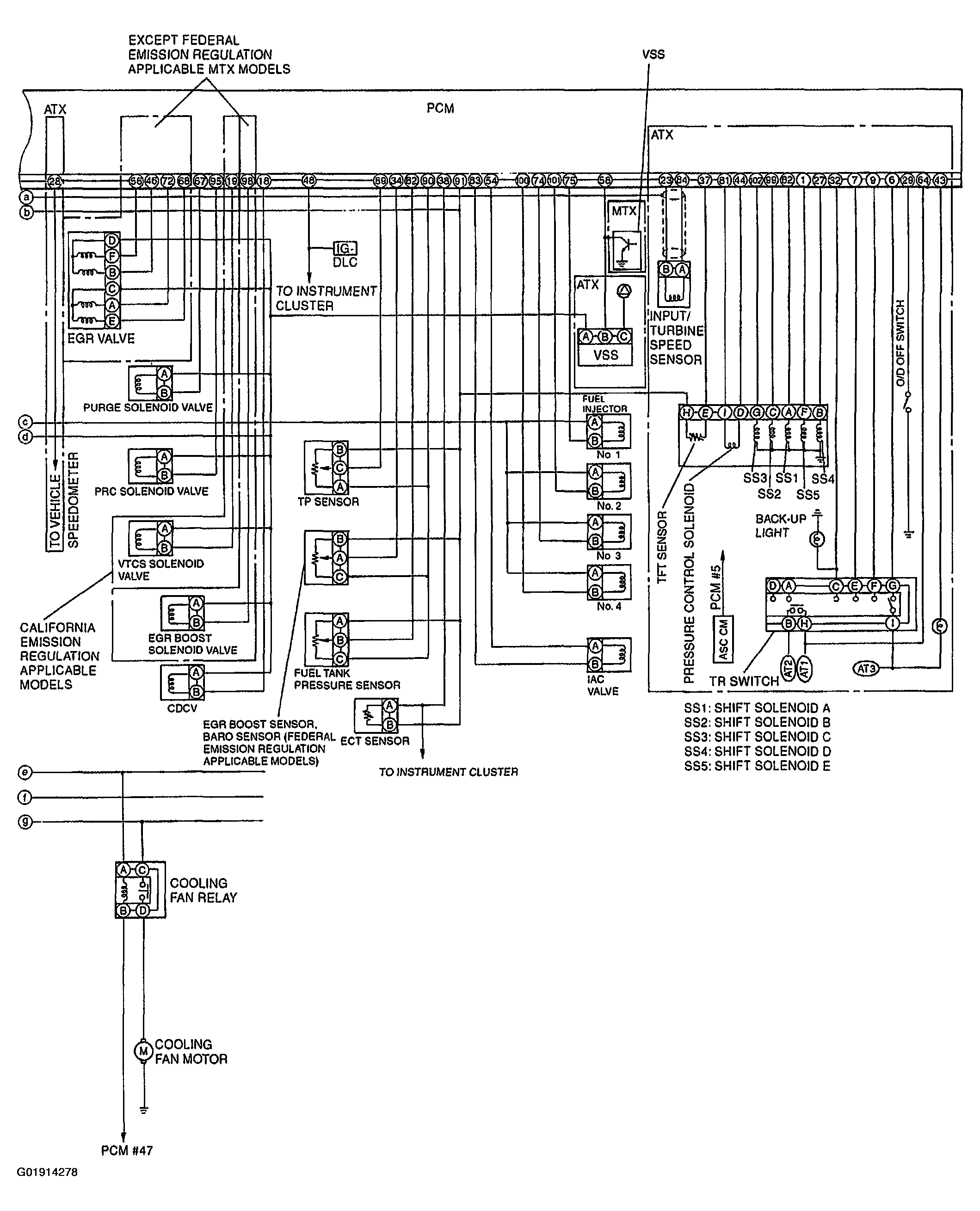

Fig 2: Automatic Transaxle System Wiring Diagram - ZM Engine (2 Of 2)
