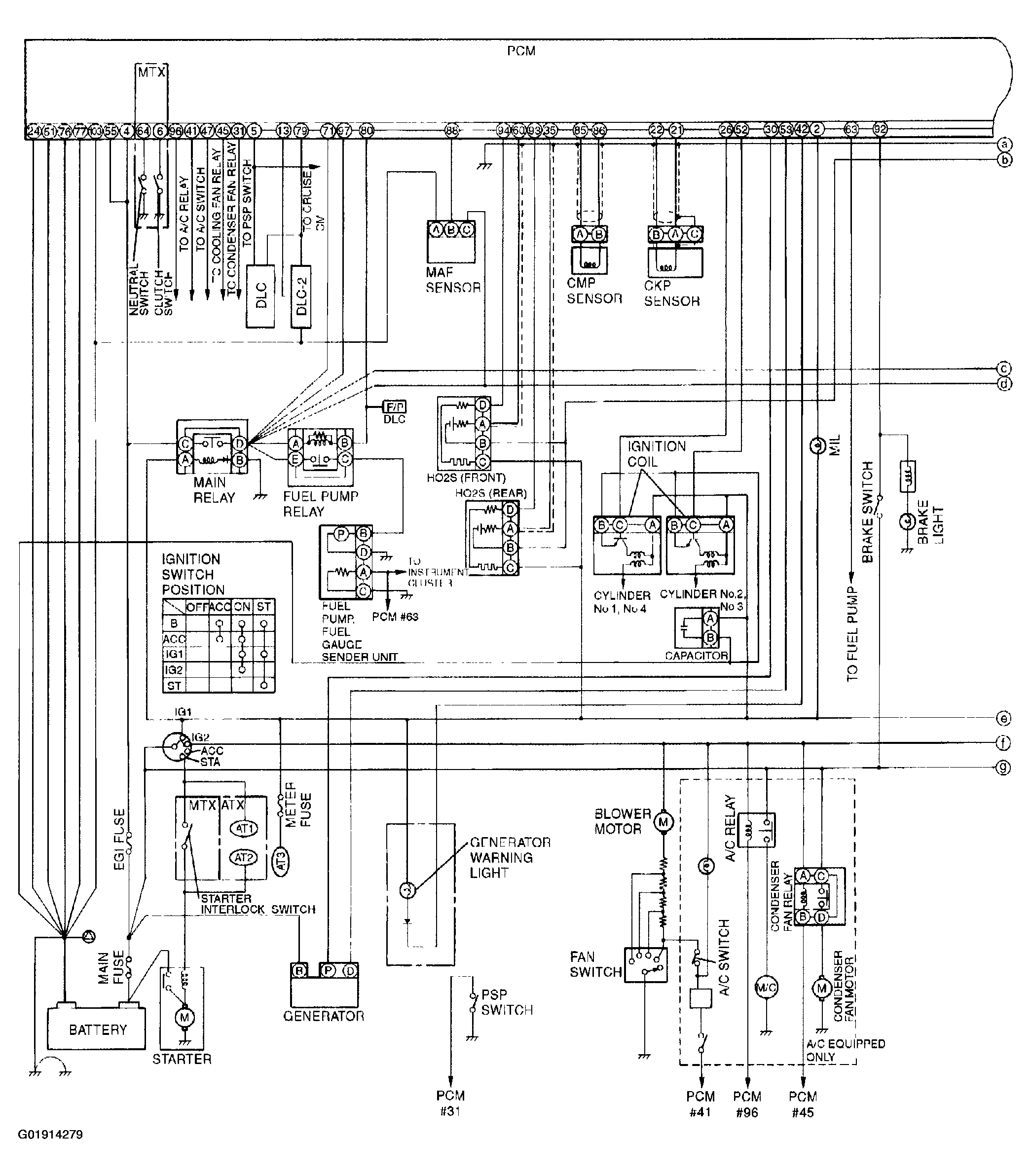

Fig 1: Automatic Transaxle System Wiring Diagram - FS Engine (1 Of 3)
Courtesy of MAZDA MOTORS CORP.

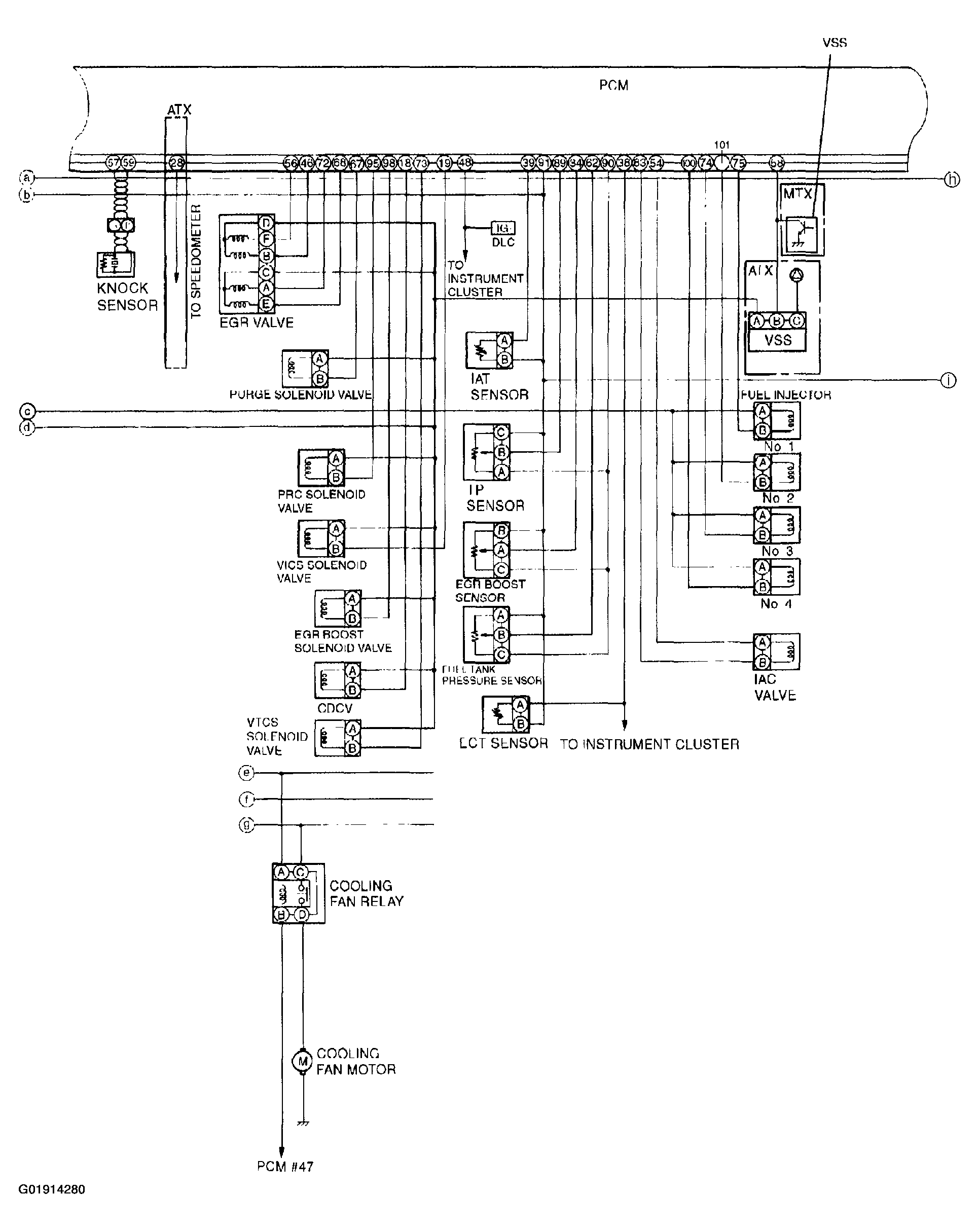

Fig 2: Automatic Transaxle System Wiring Diagram - FS Engine (2 Of 3)
Courtesy of MAZDA MOTORS CORP.

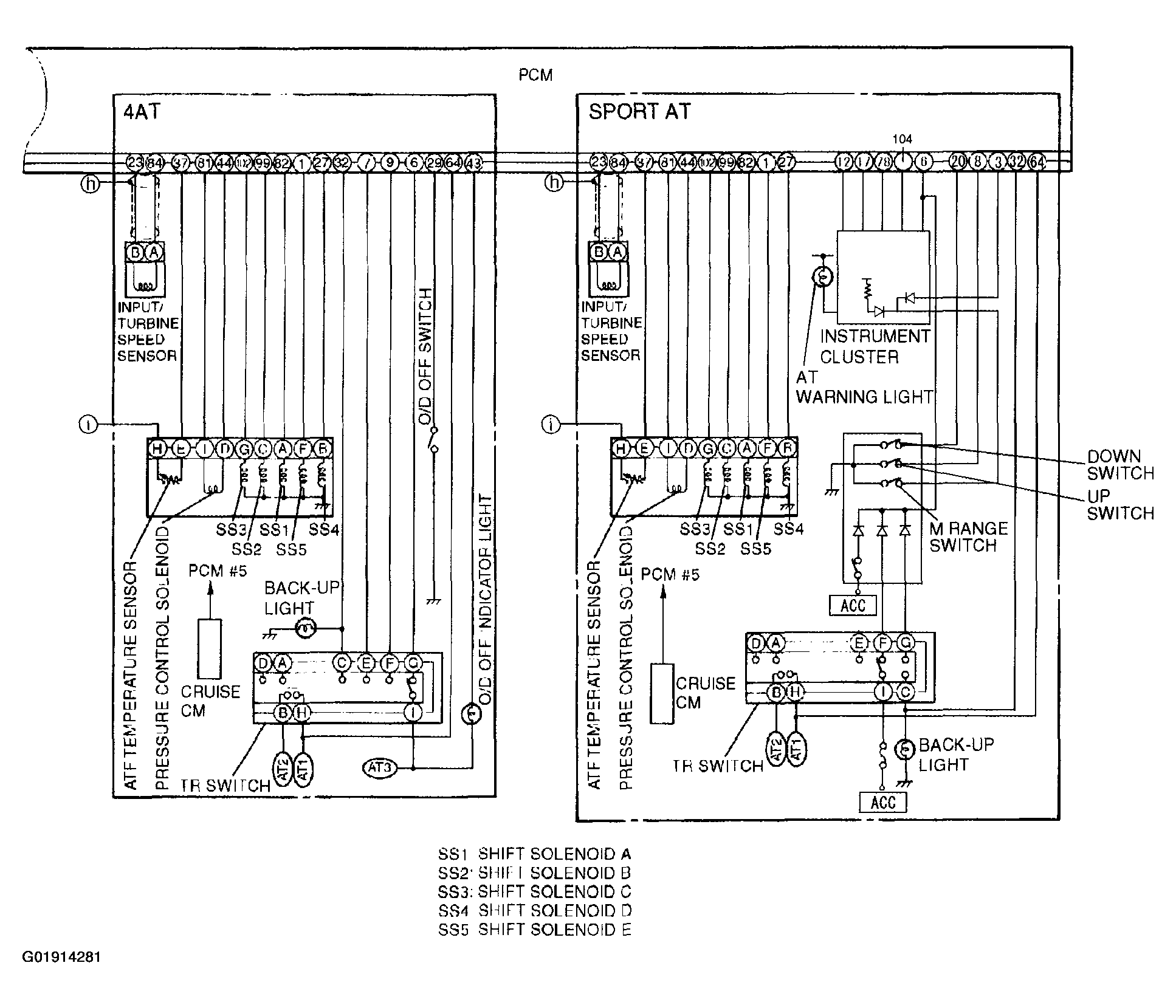

Fig 3: Automatic Transaxle System Wiring Diagram - FS Engine (3 Of 3)
