WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

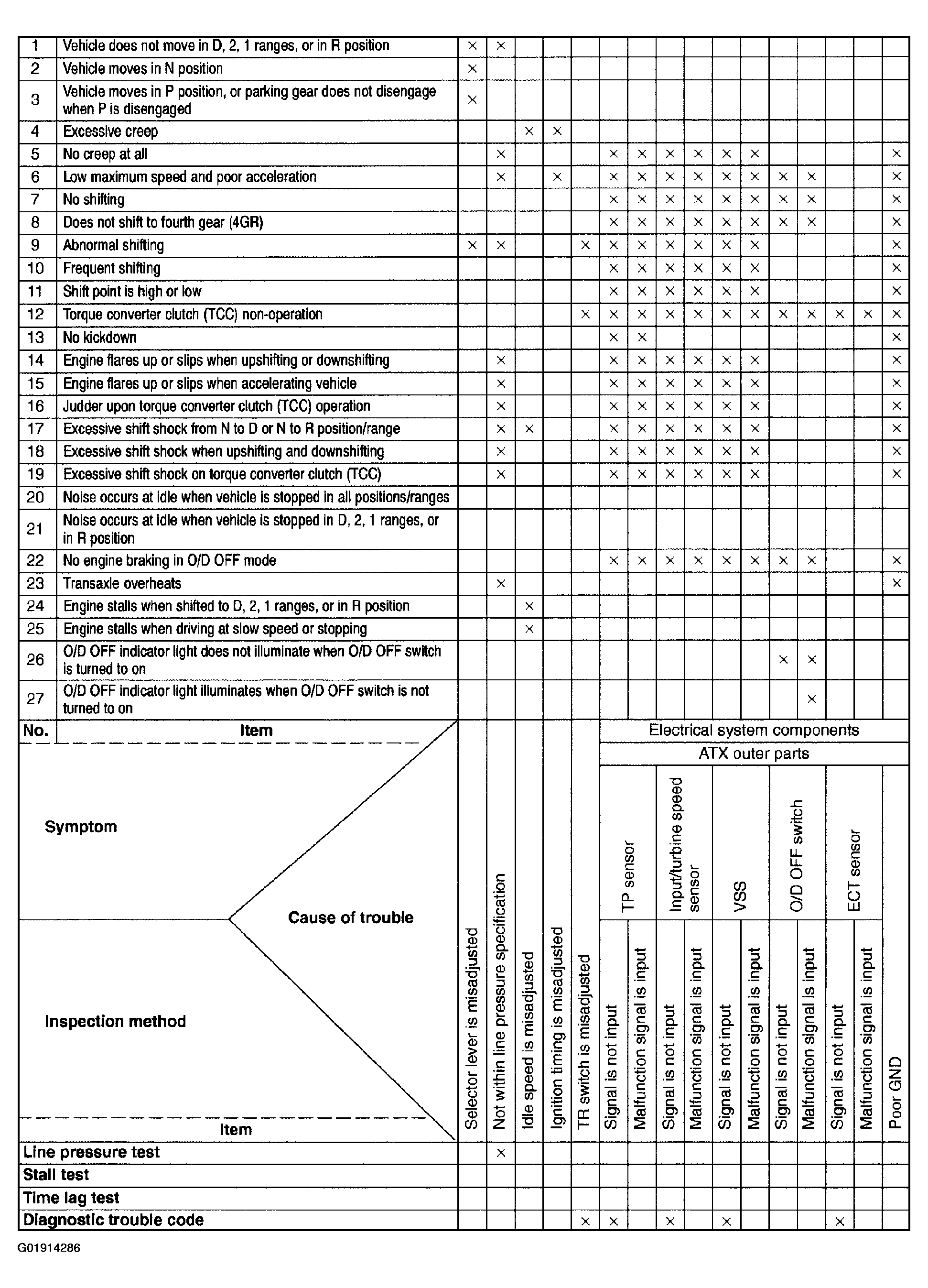

Fig 1: Automatic Transaxle Diagnosis Chart (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

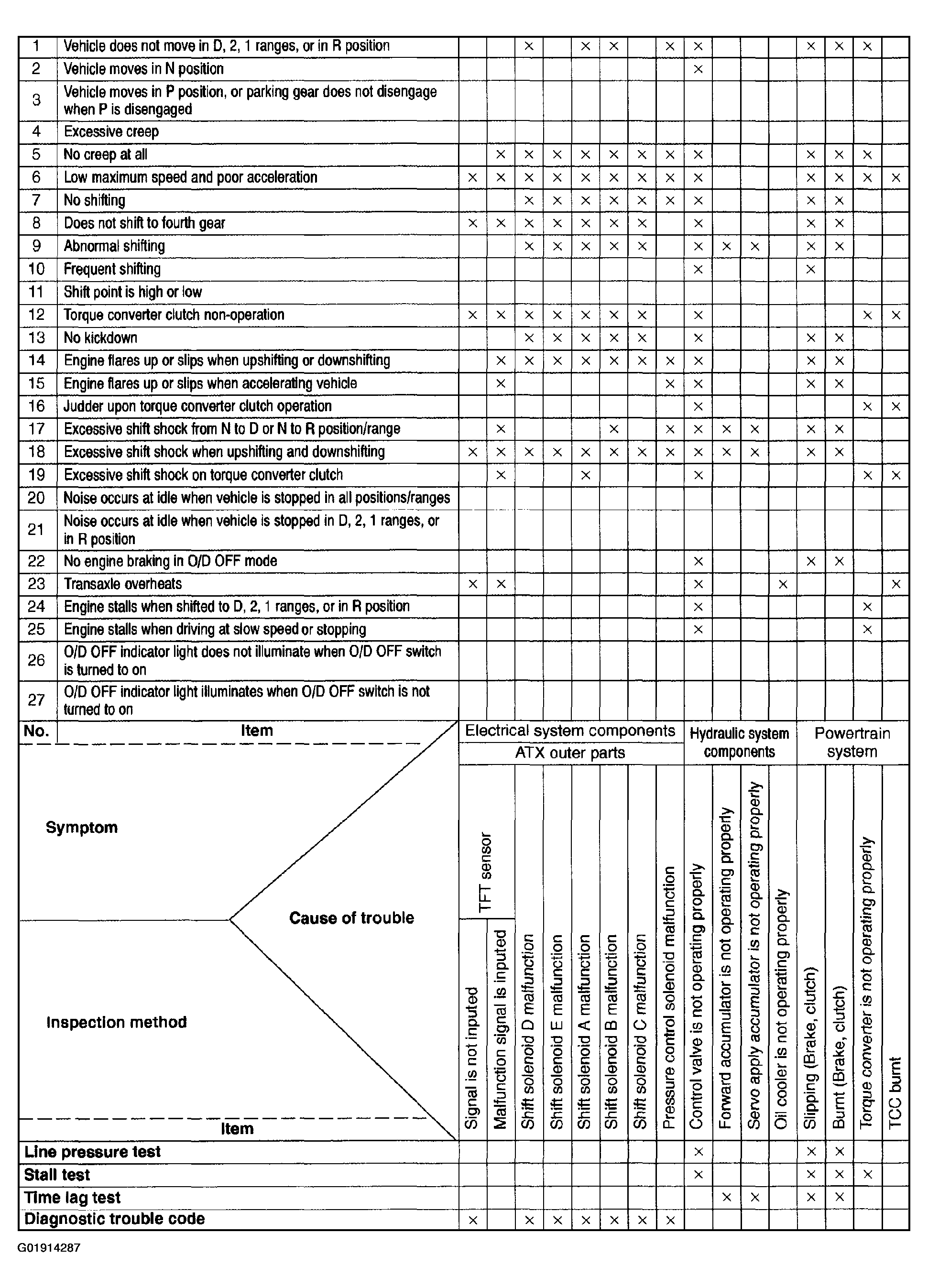

Fig 2: Automatic Transaxle Diagnosis Chart (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

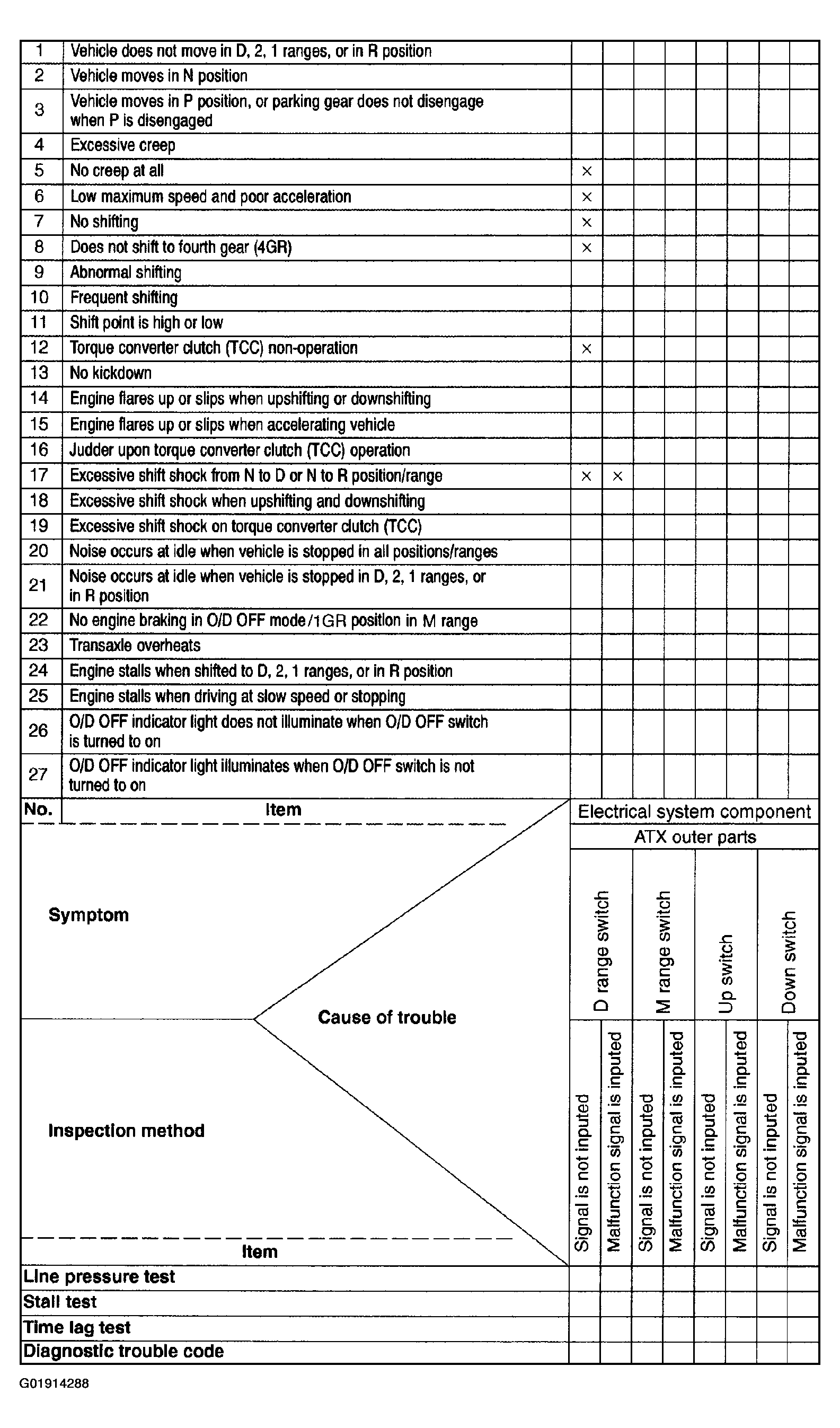

Fig 3: Automatic Transaxle Diagnosis Chart (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

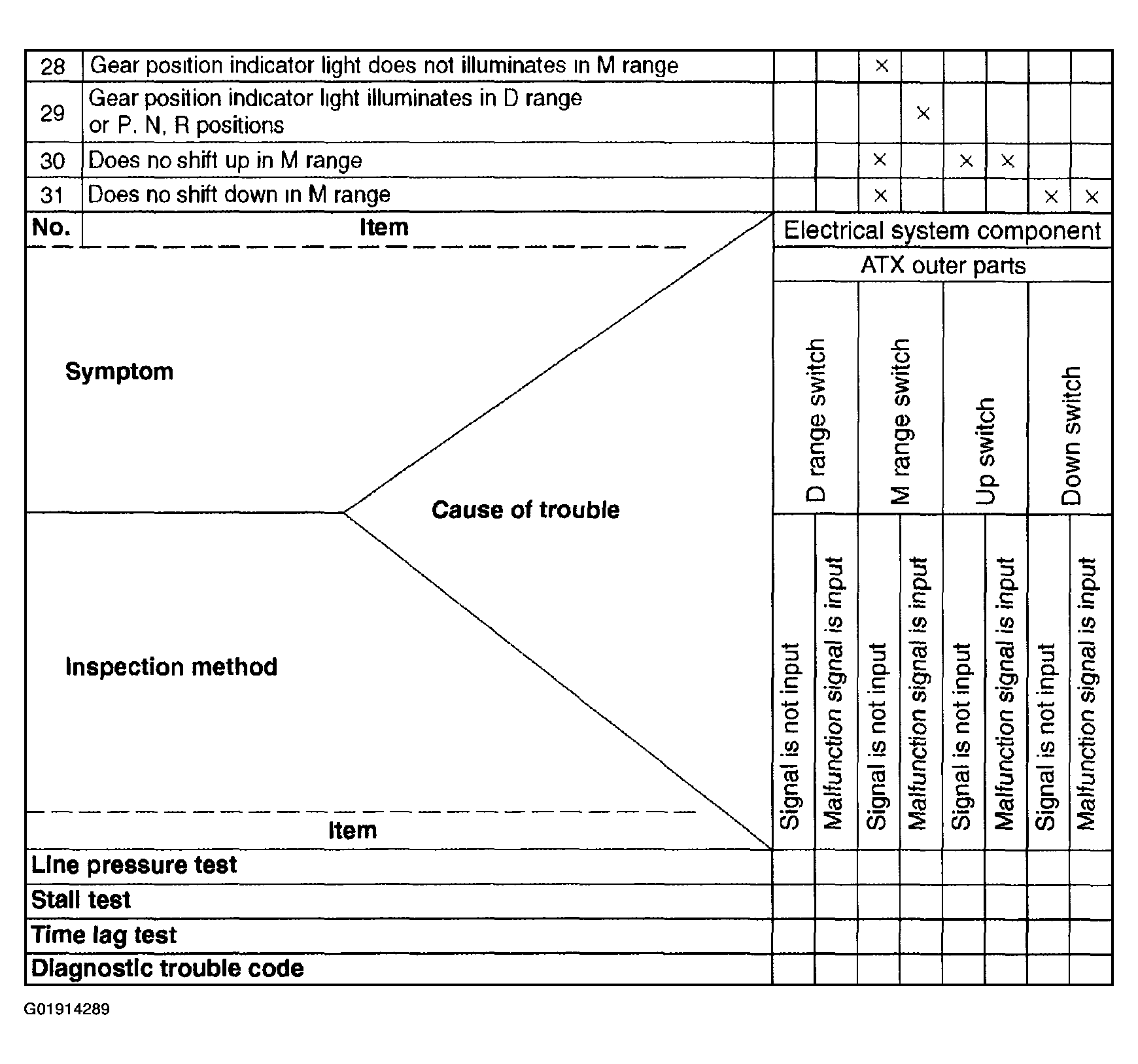

Fig 4: Automatic Transaxle Diagnosis Chart (4 Of 4)
