DTC P0767: Shift Solenoid D Stuck On

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

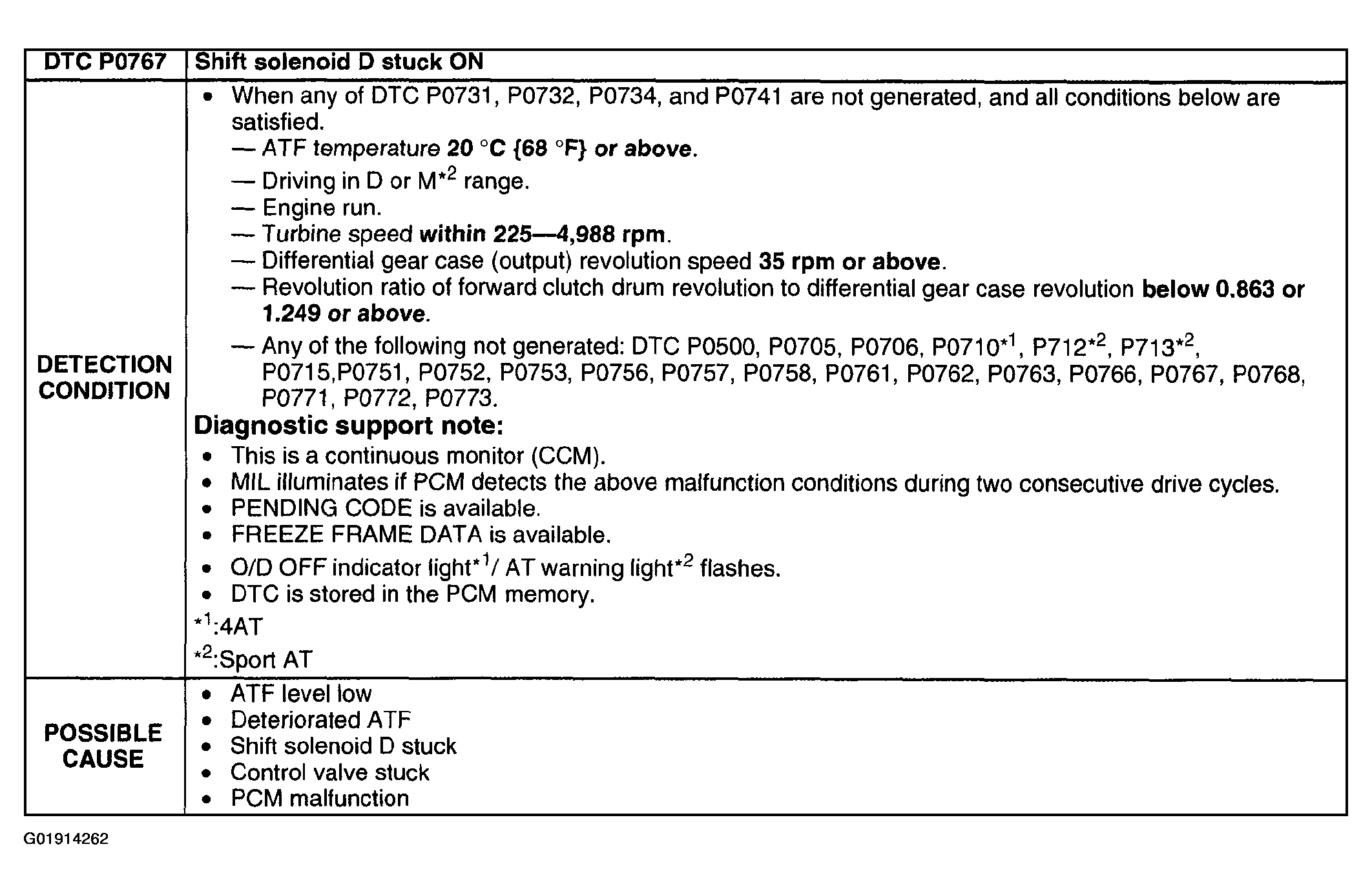

Fig 1: Detection Condition & Possible Causes - DTC P0767

Courtesy of MAZDA MOTORS CORP.

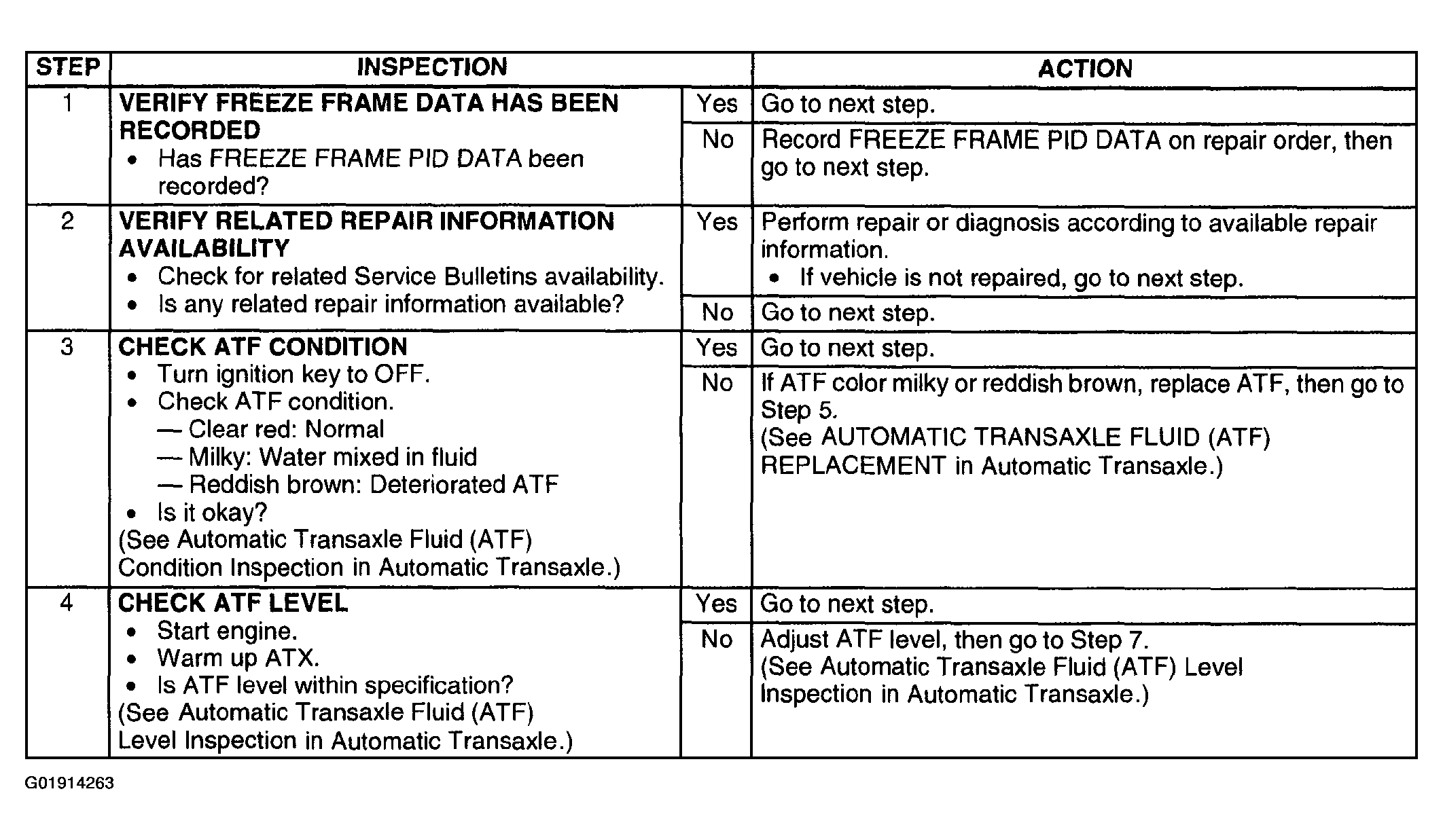

Fig 2: Diagnostic Procedure - DTC P0767 (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

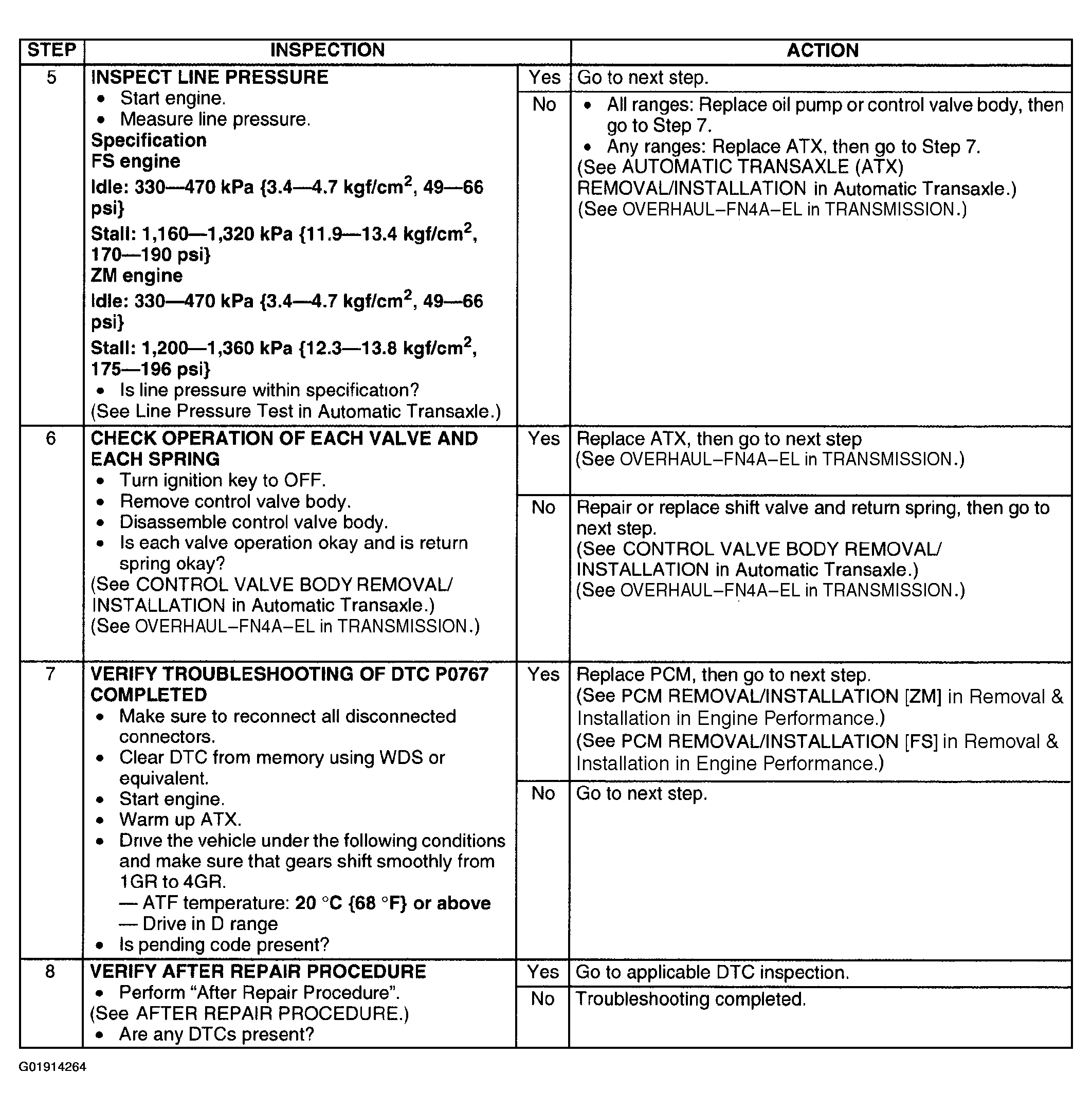

Fig 3: Diagnostic Procedure - DTC P0767 (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
