DTC P0745: Pressure Control Solenoid Malfunction

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

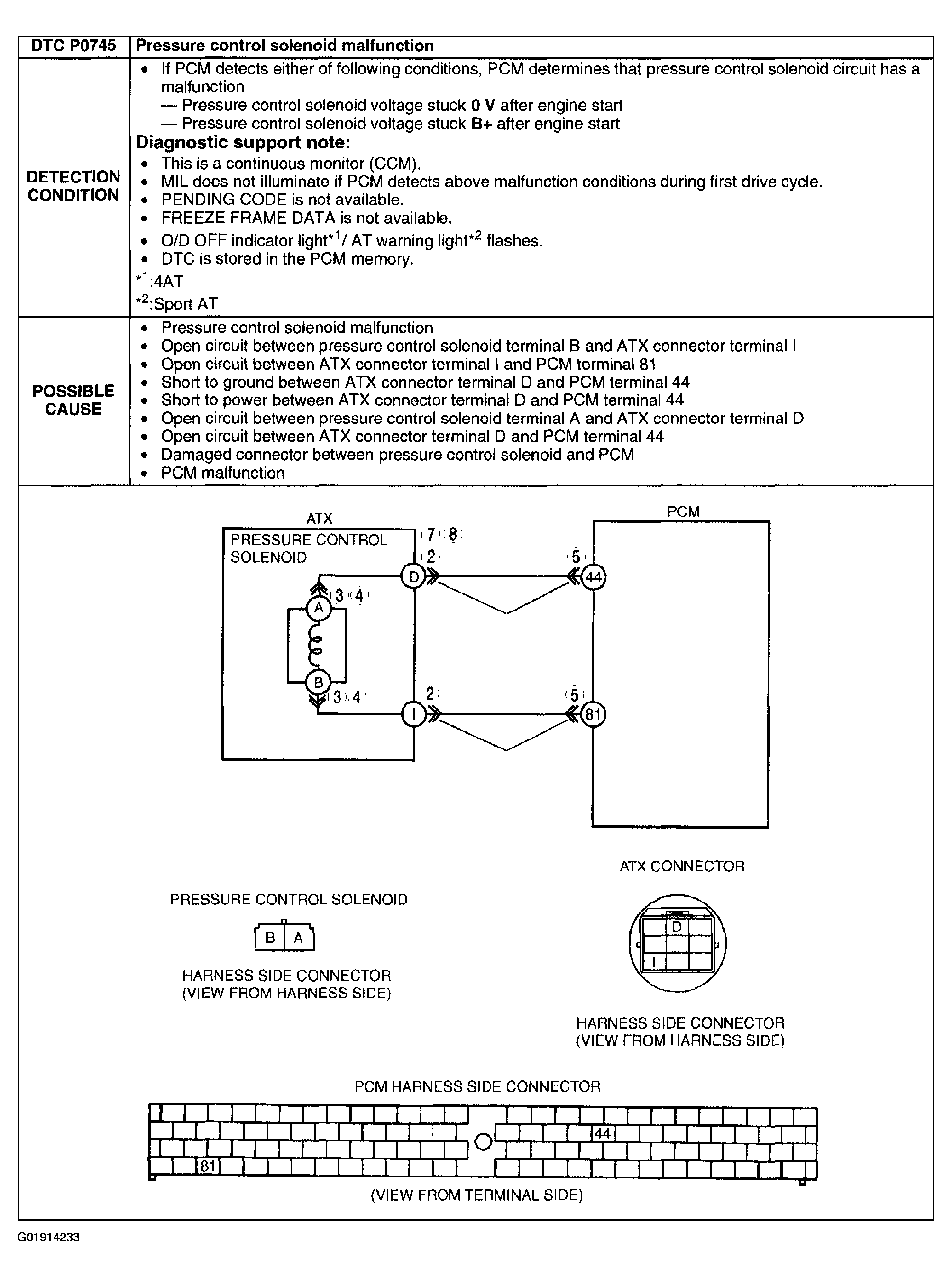

Fig 1: Detection Condition & Possible Cause - DTC P0745

Courtesy of MAZDA MOTORS CORP.

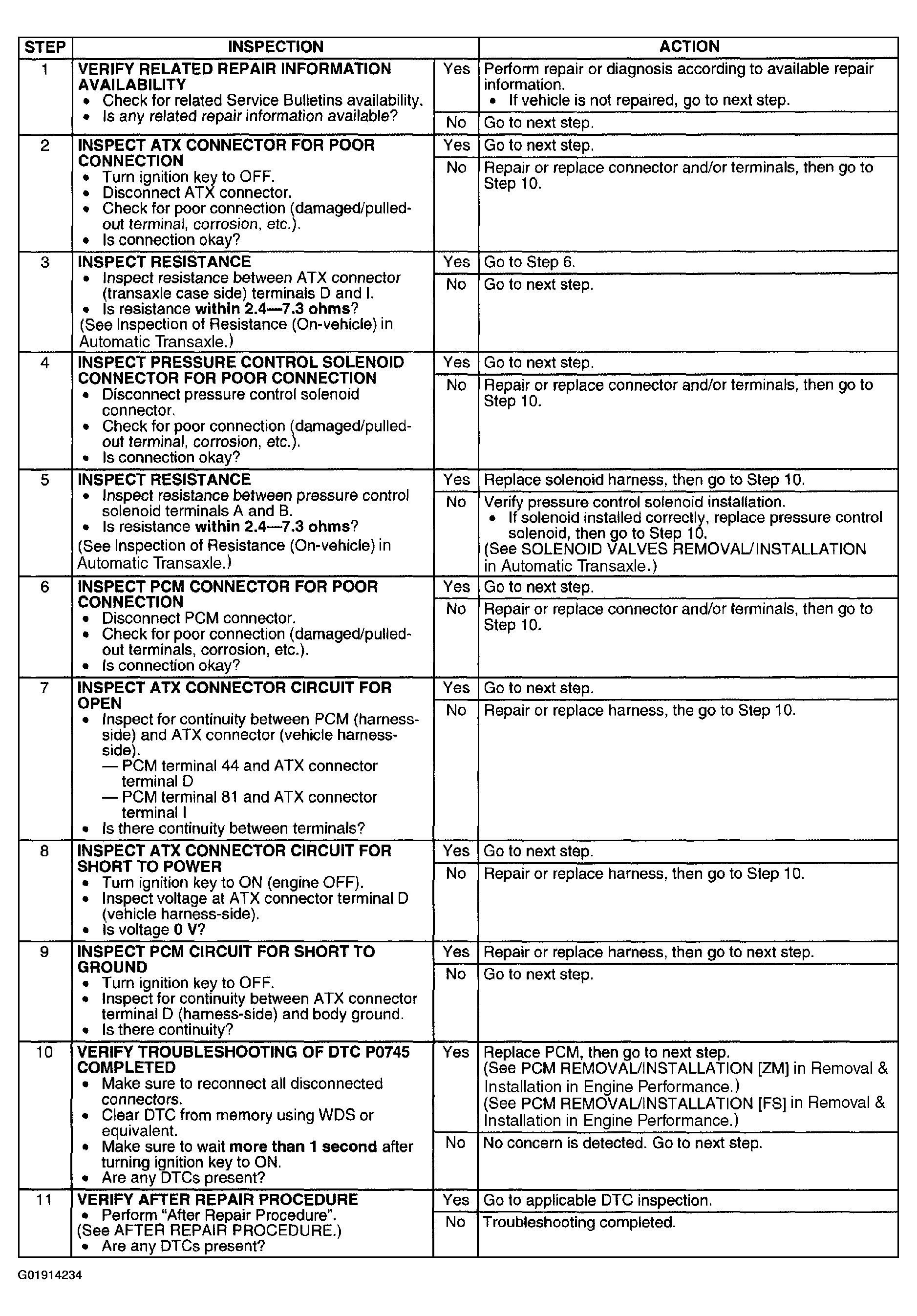

Fig 2: Diagnostic Procedure - DTC P0745

Courtesy of MAZDA MOTORS CORP.
