DTC P0705: Transaxle Range (Tr) Switch Circuit Malfunction (Short Circuit)

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

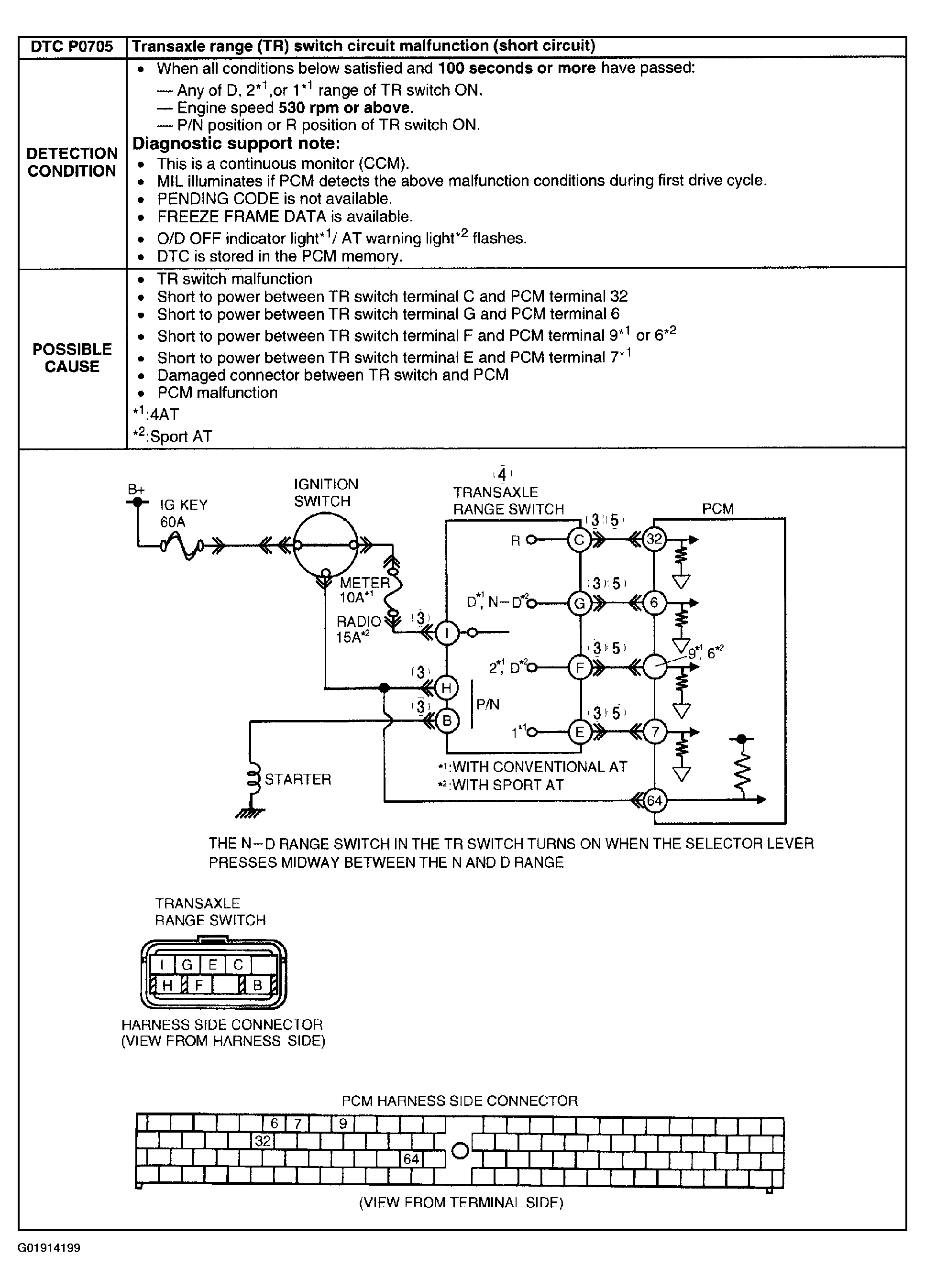

Fig 1: Detection Condition & Possible Causes - DTC P0705

Courtesy of MAZDA MOTORS CORP.

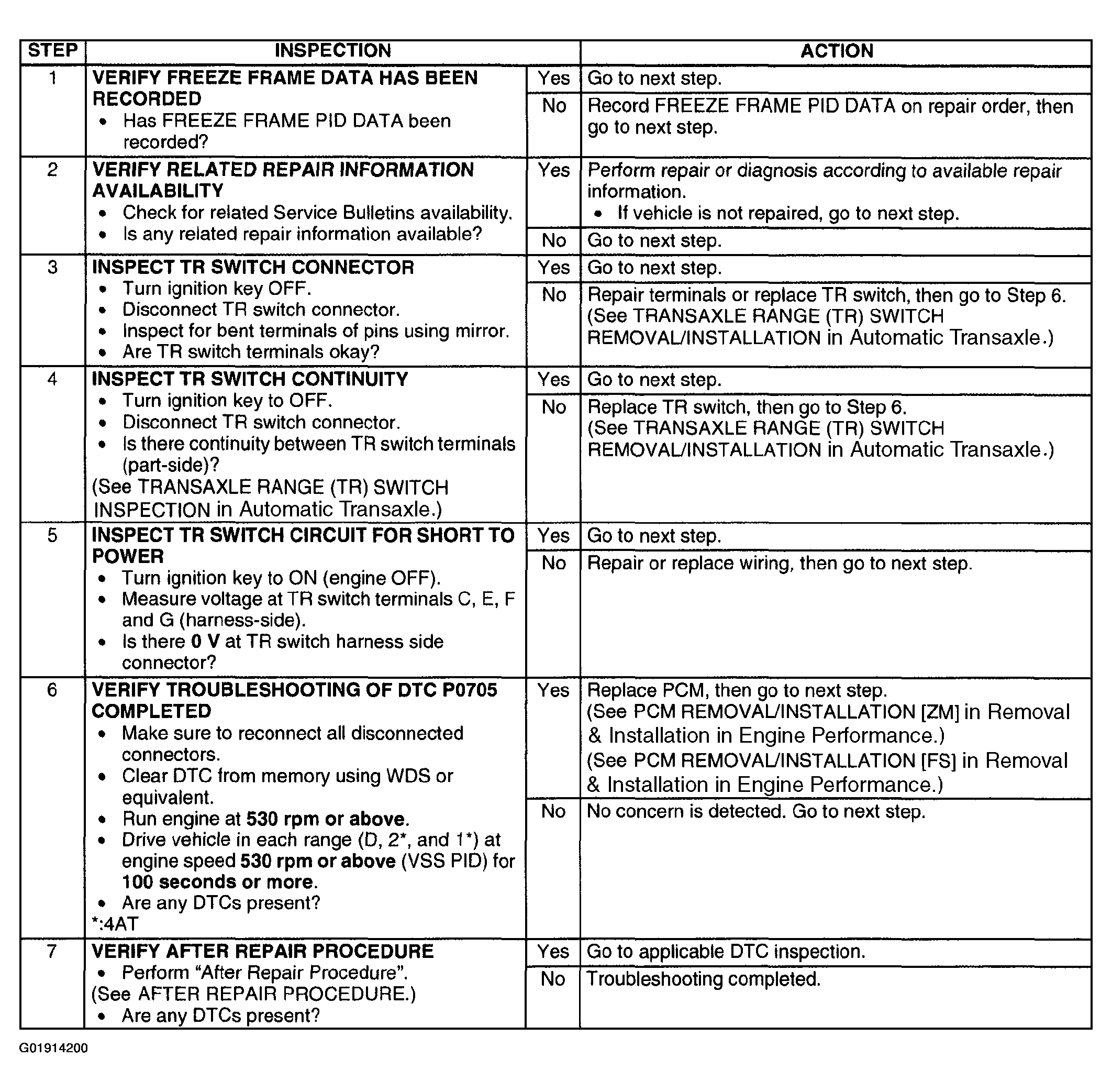

Fig 2: Diagnostic Procedure - DTC P0705

Courtesy of MAZDA MOTORS CORP.
