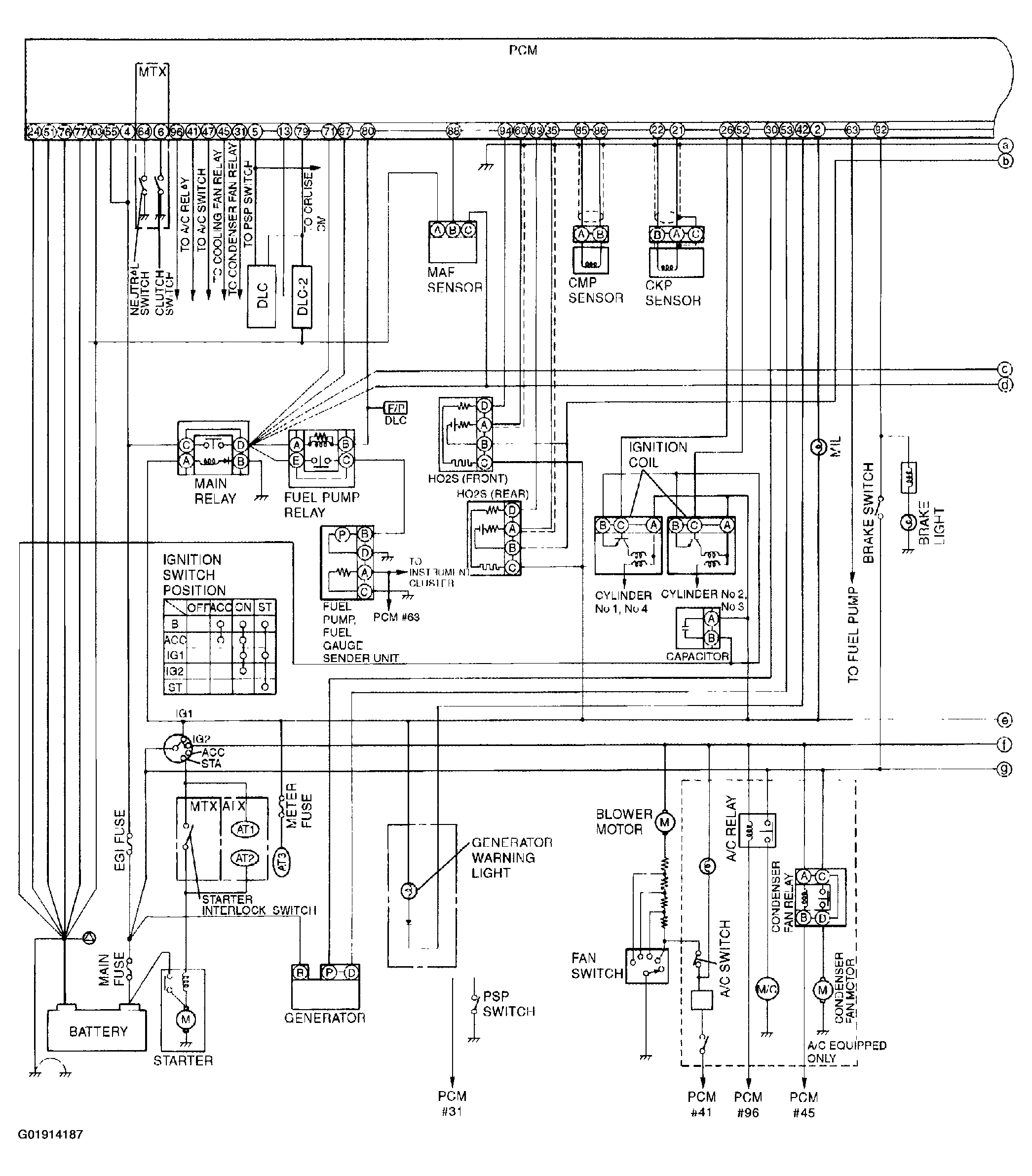

Fig 1: Automatic Transaxle Control System Wiring Diagram - ZM Engine (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

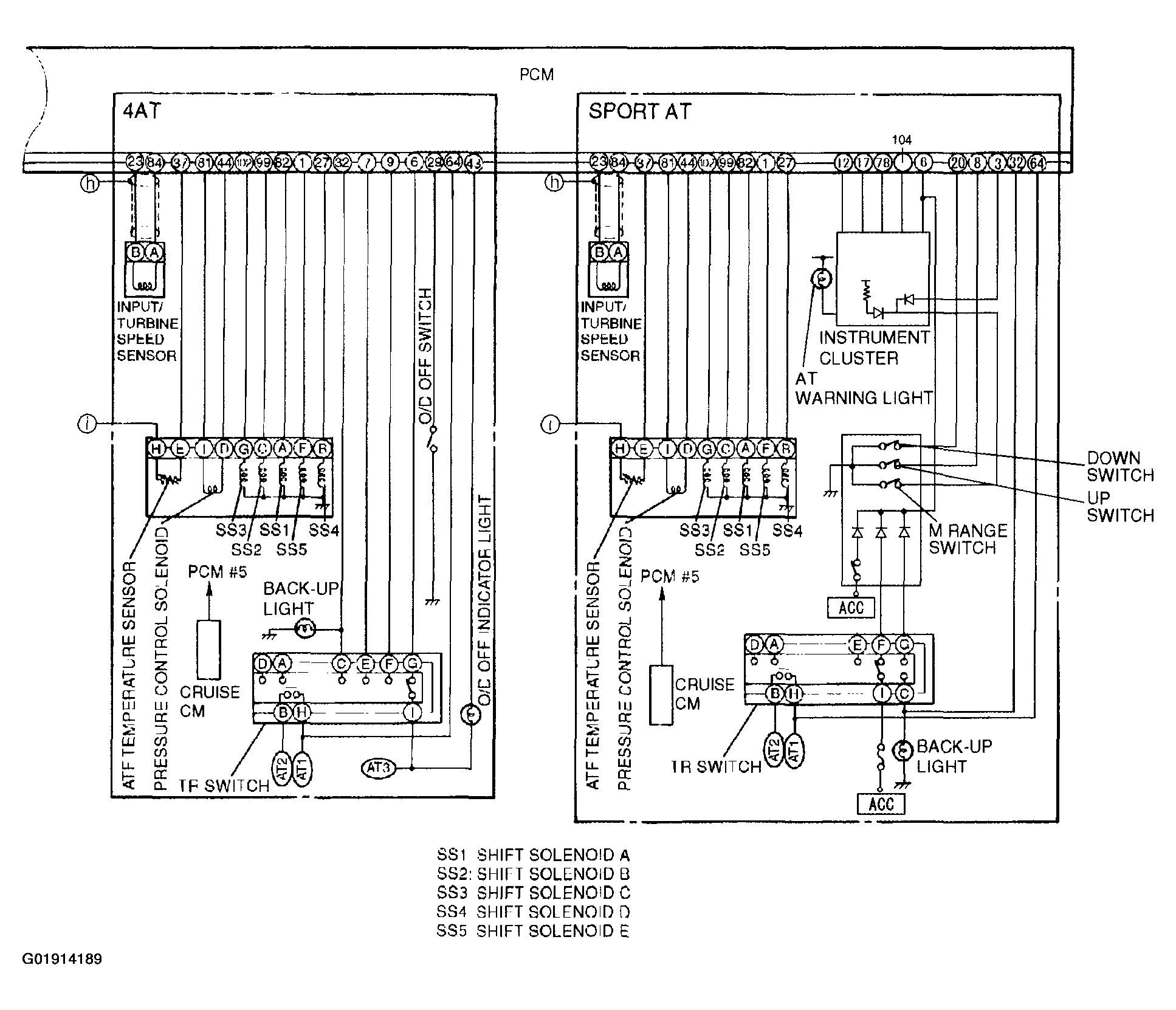

Fig 2: Automatic Transaxle Control System Wiring Diagram - ZM Engine (2 Of 2)
Courtesy of MAZDA MOTORS CORP.

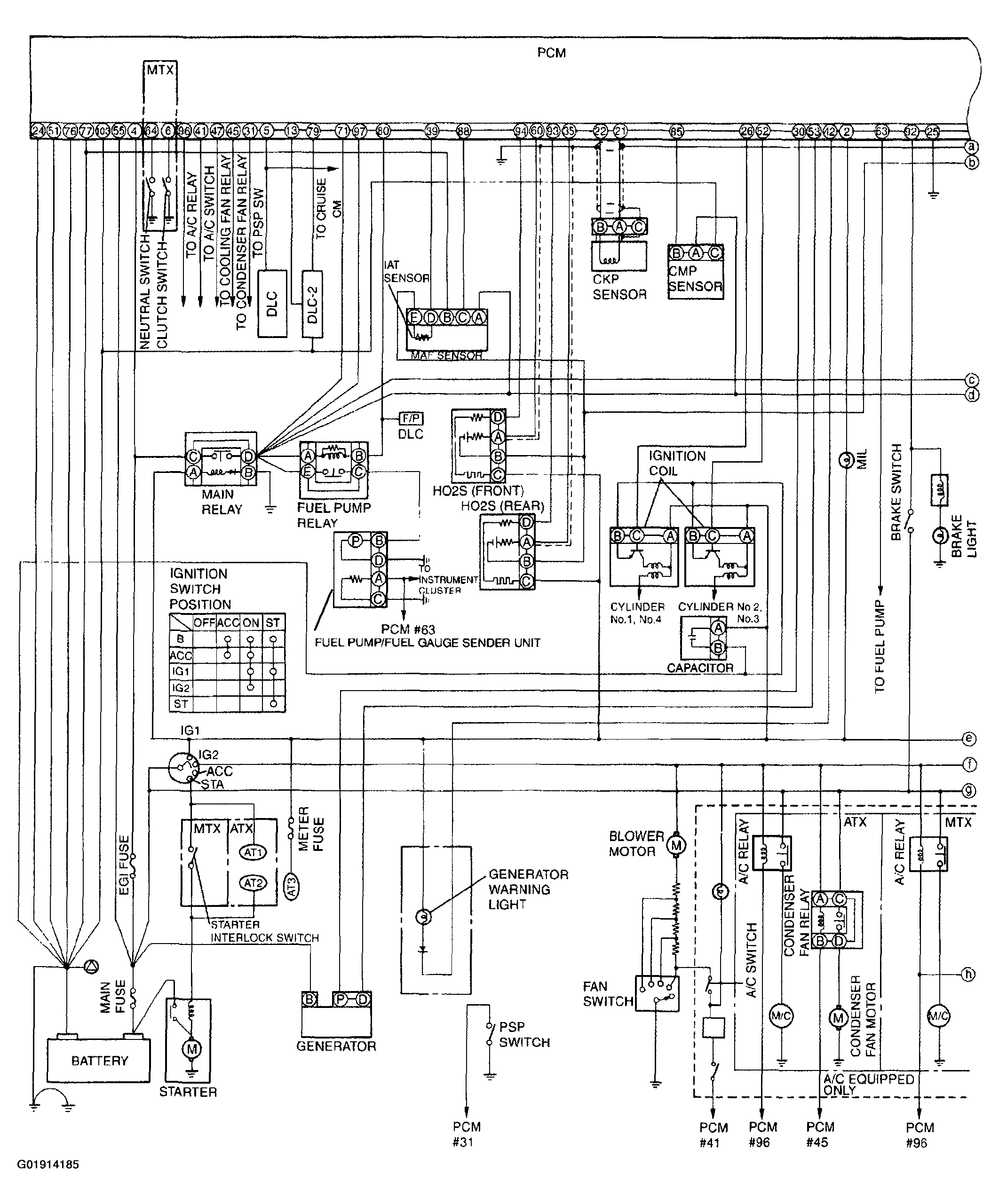

Fig 3: Automatic Transaxle Control System Wiring Diagram - FS Engine (1 Of 3)
Courtesy of MAZDA MOTORS CORP.

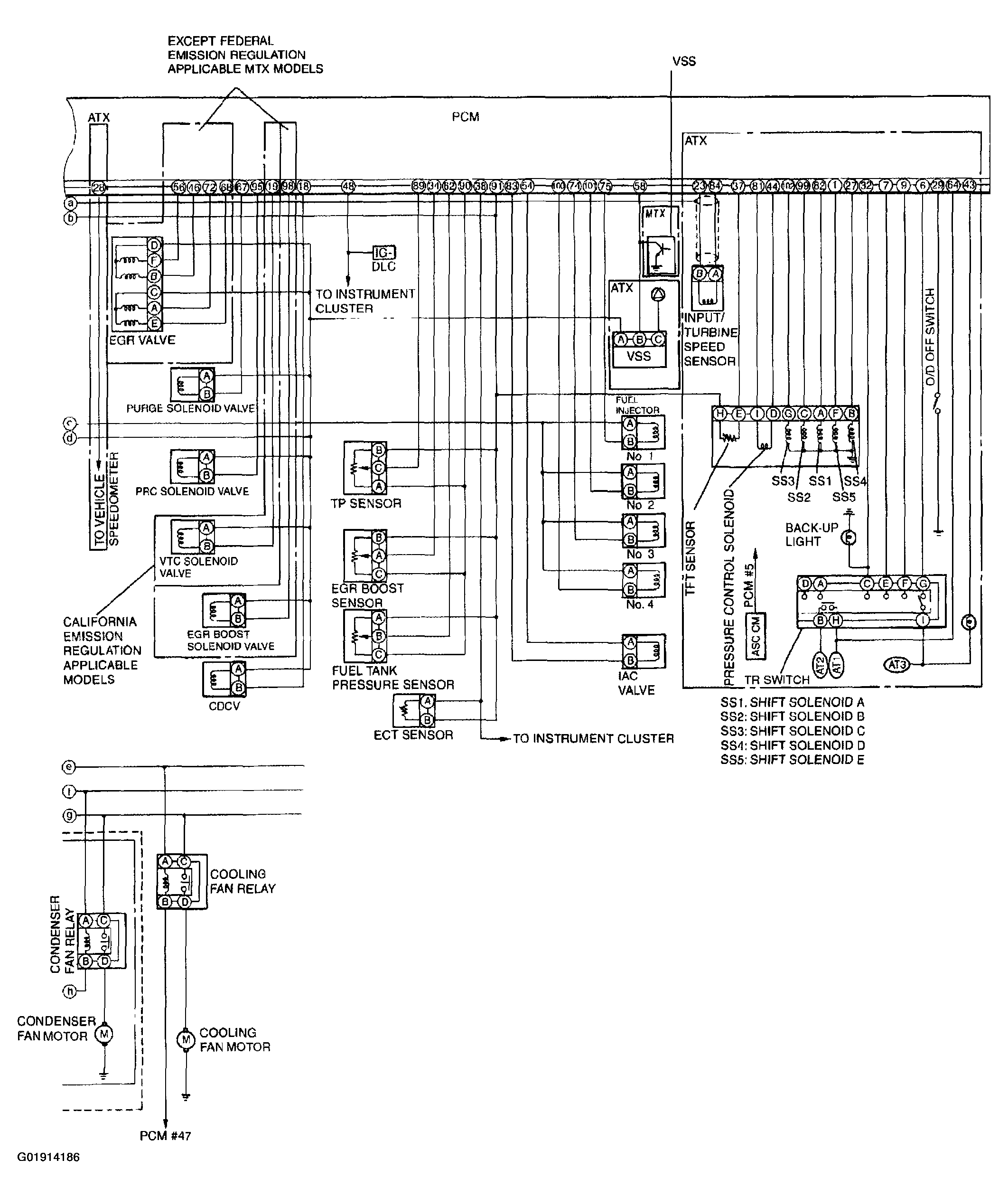

Fig 4: Automatic Transaxle Control System Wiring Diagram - FS Engine (2 Of 3)
Courtesy of MAZDA MOTORS CORP.

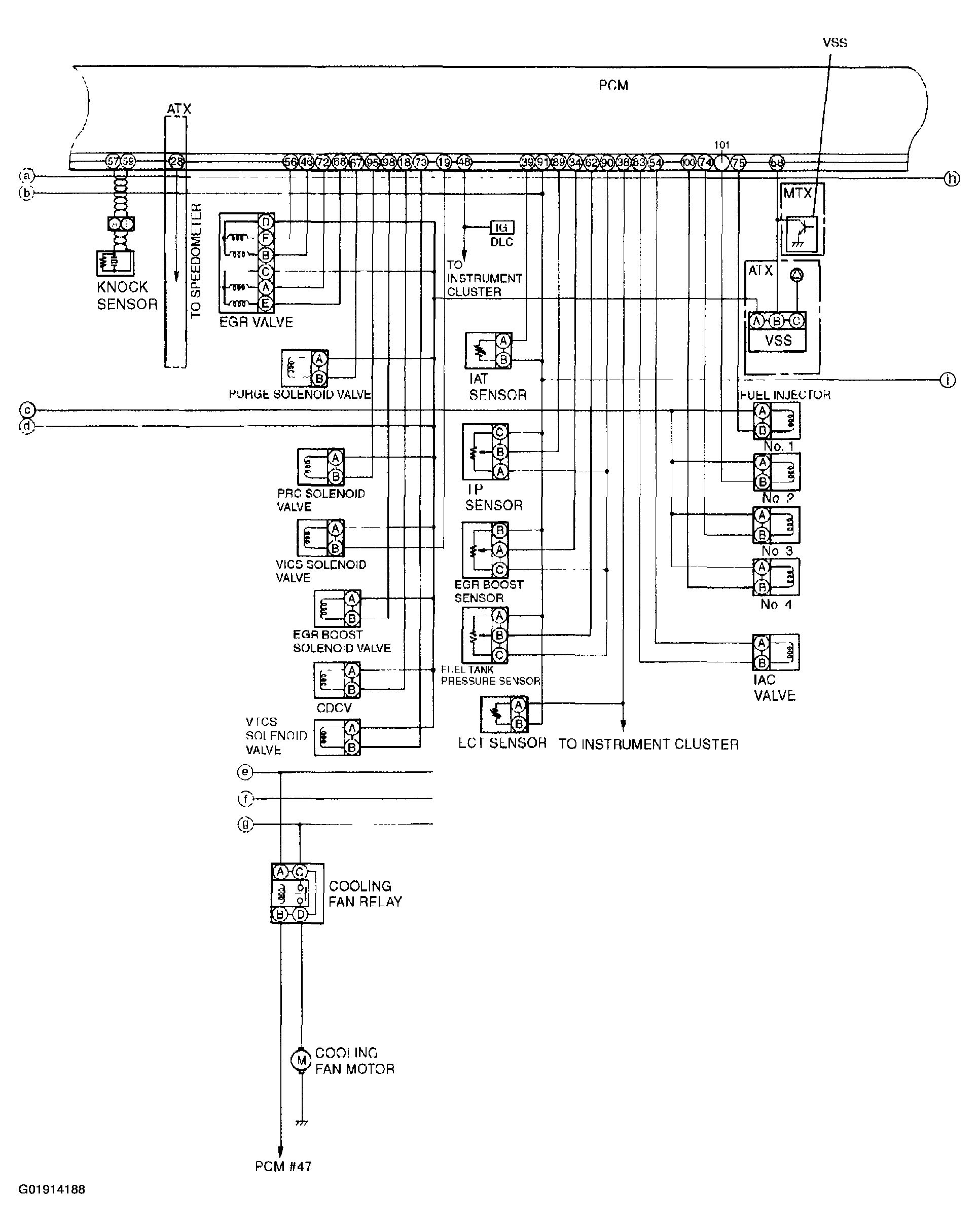

Fig 5: Automatic Transaxle Control System Wiring Diagram - FS Engine (3 Of 3)
