Right Drive Shaft and Axle Removal Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Remove the clinch bolt and nut.
Wrap a rag around the ball joint dust boot.
Pry the lower arm out of the knuckle.

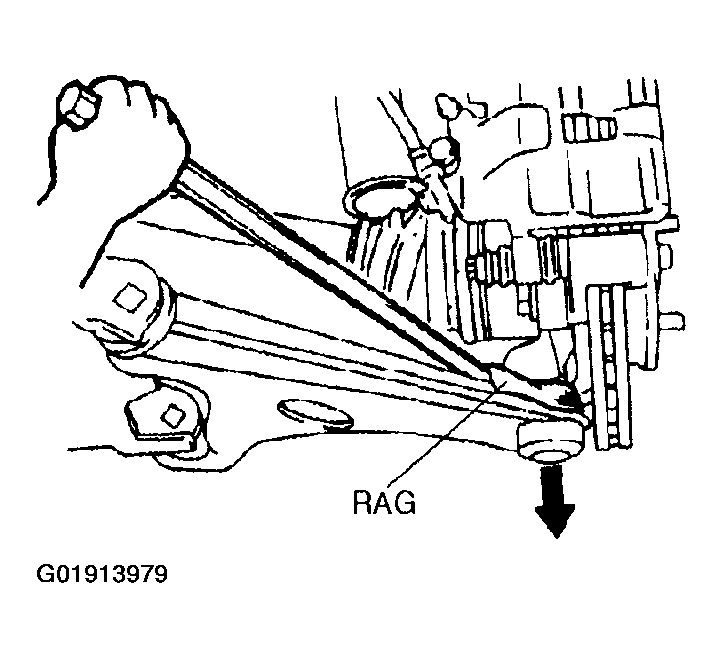

Fig 1: Prying Lower Arm Out Of Knuckle
Courtesy of MAZDA MOTORS CORP.
As shown in the figure, insert a pry bar between the right drive shaft and the joint shaft and tap on the bar to uncouple them.

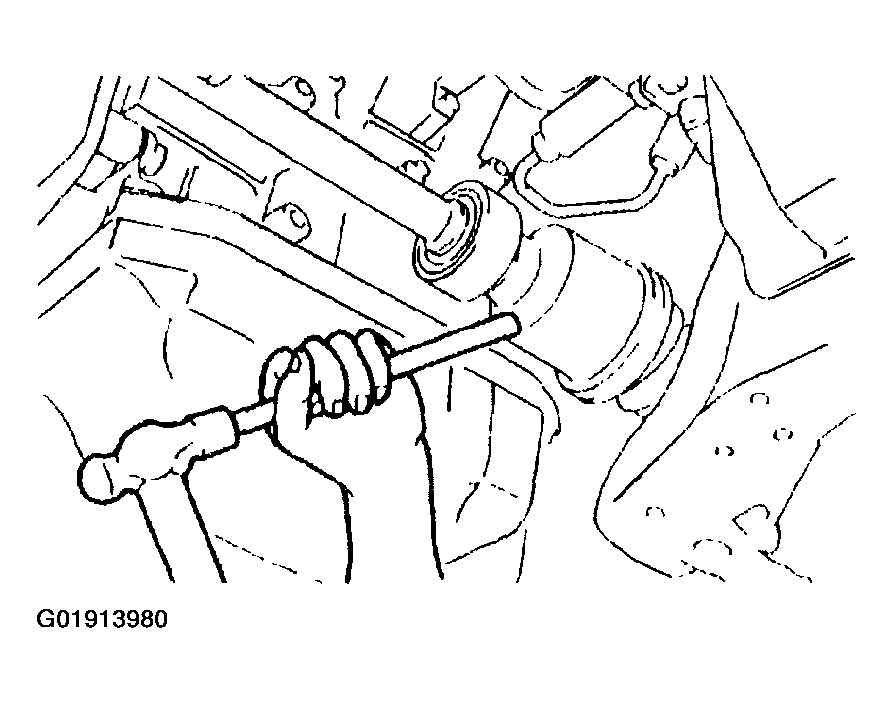

Fig 2: Inserting Pry Bar Between Right Drive Shaft And Joint Shaft
Courtesy of MAZDA MOTORS CORP.
