Joint Shaft Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the figure.

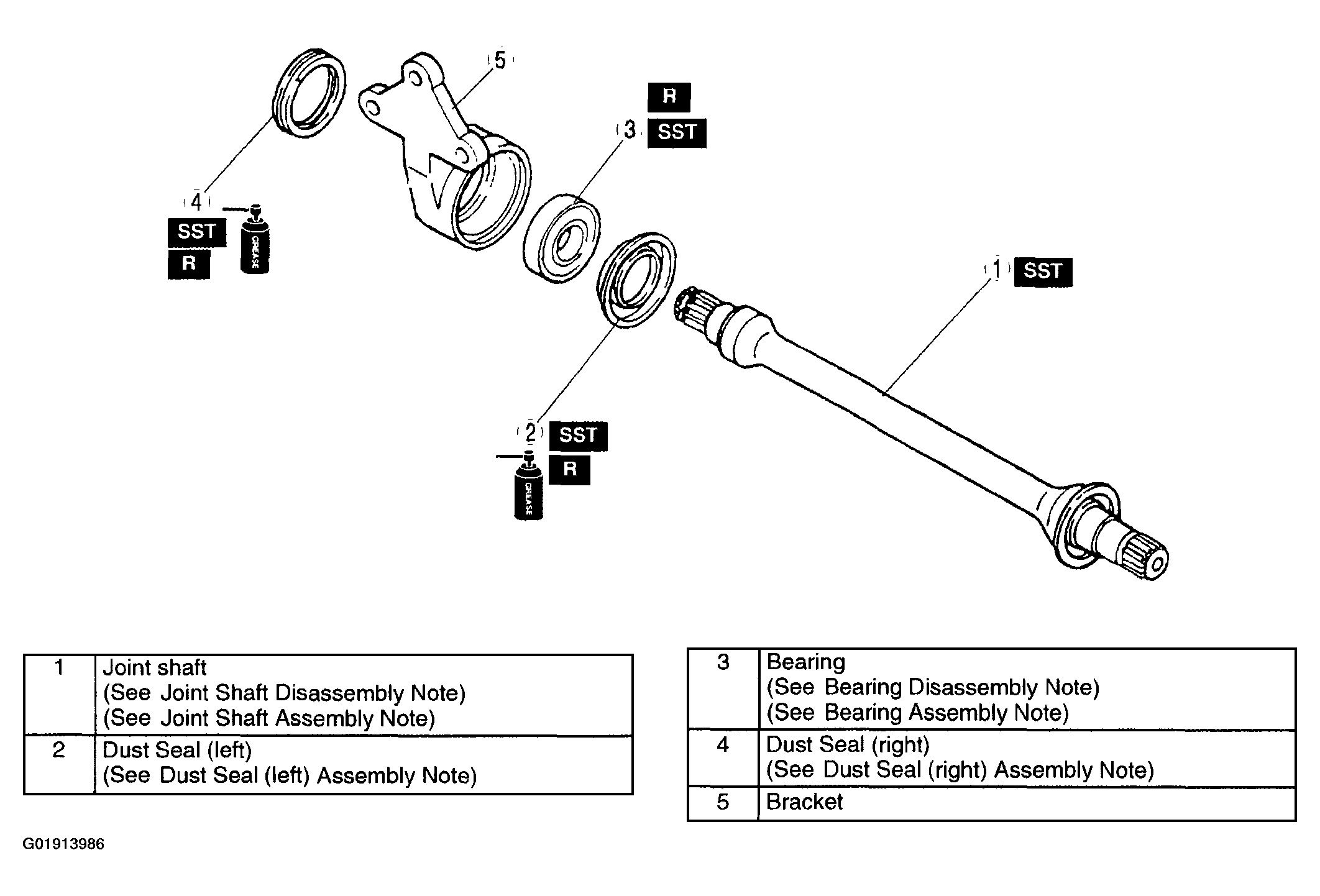

    Fig 1: Exploded View Of Joint Shaft
    G01913986Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of removal.
