Bearing Assembly Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new bearing using the SSTs.

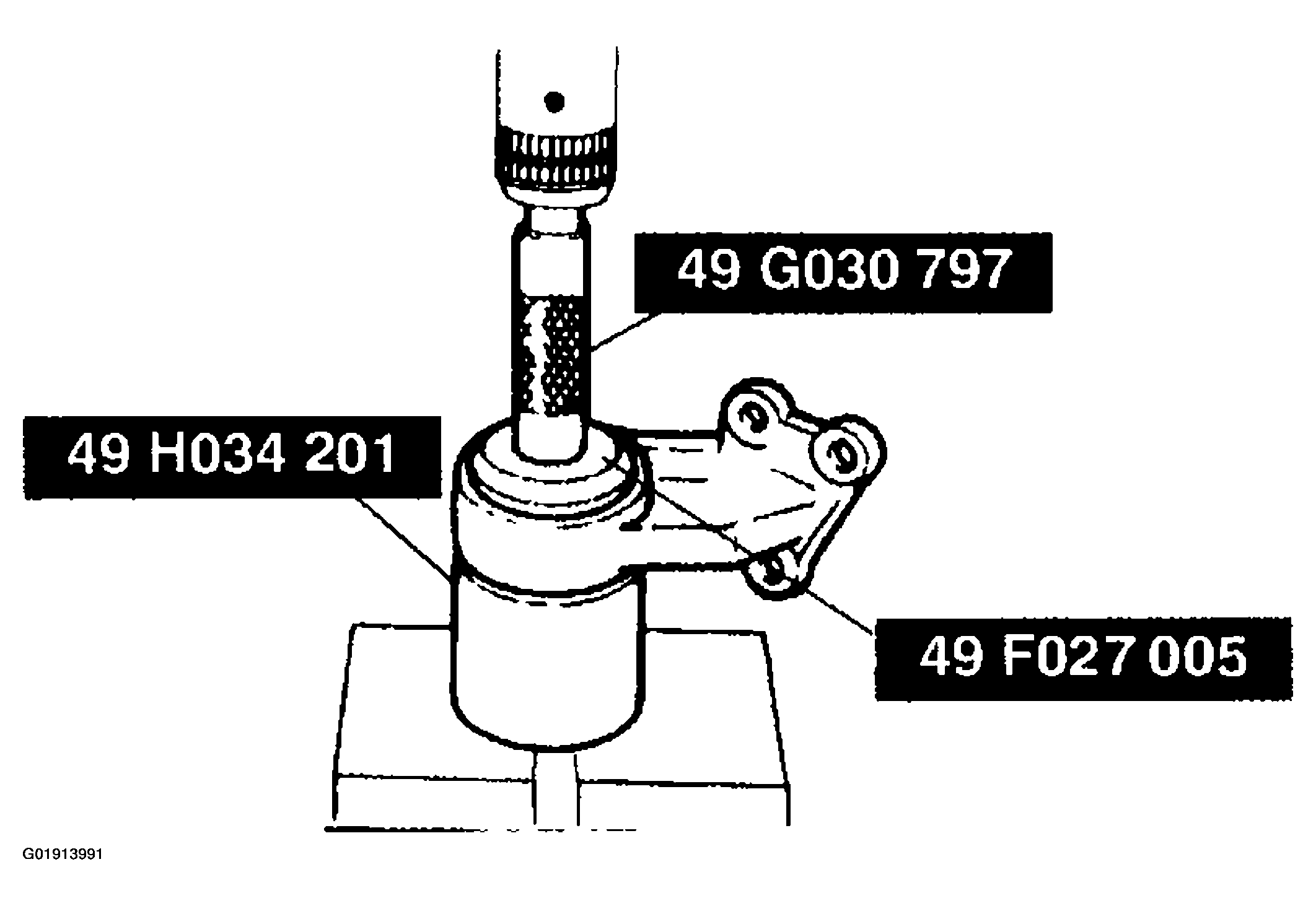

    Fig 1: Installing New Bearing Using SST
    G01913991Courtesy of MAZDA MOTORS CORP.
