Drive Shaft Removal Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clinch bolt and nut.
  2. Wrap a rag around the ball joint dust boot.
  3. Pry the lower arm out of the knuckle.

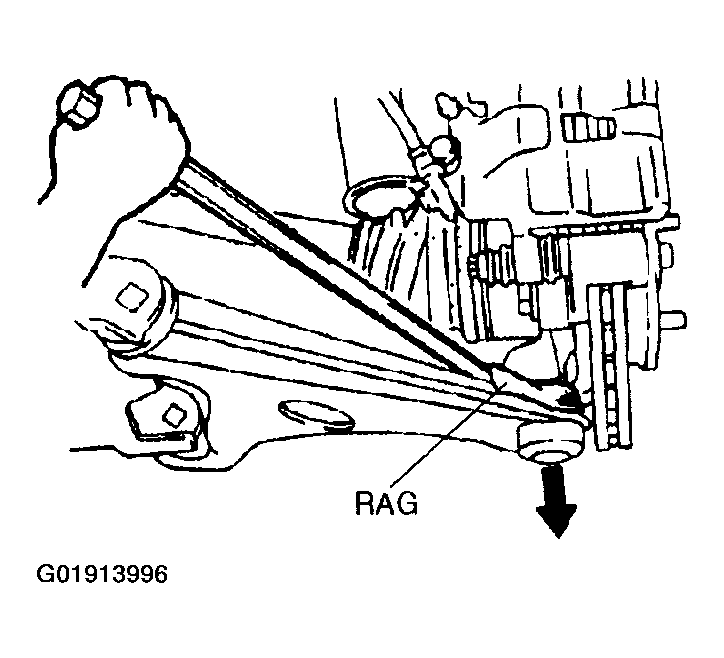

    Fig 1: Prying Lower Arm Out Of Knuckle
    G01913996Courtesy of MAZDA MOTORS CORP.
  4. Install a spare nut onto the drive shaft so that the nut is flush with the end of the drive shaft.
  5. Tap the nut with a copper hammer to loosen the drive shaft from the front wheel hub.
  6. Separate the drive shaft from the wheel hub.
    CAUTION:
    • The sharp edges of the drive shaft can slice or puncture the oil seal. Be careful when removing the drive shaft from the transaxle.

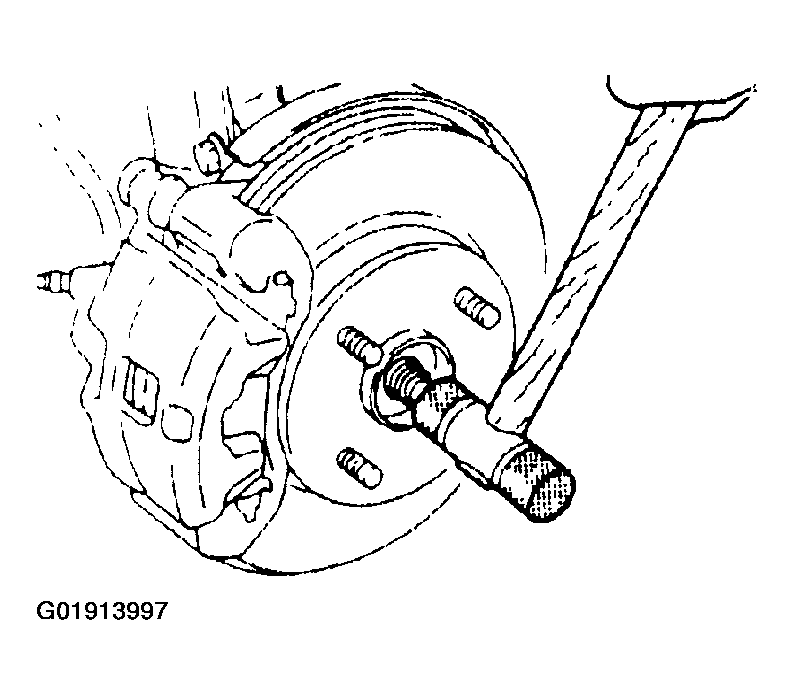

    Fig 2: Separating Drive Shaft From Wheel Hub
    G01913997Courtesy of MAZDA MOTORS CORP.
  7. Separate the left side drive shaft from the transaxle by prying with a bar inserted between the outer ring and the transaxle, as shown in the figure.

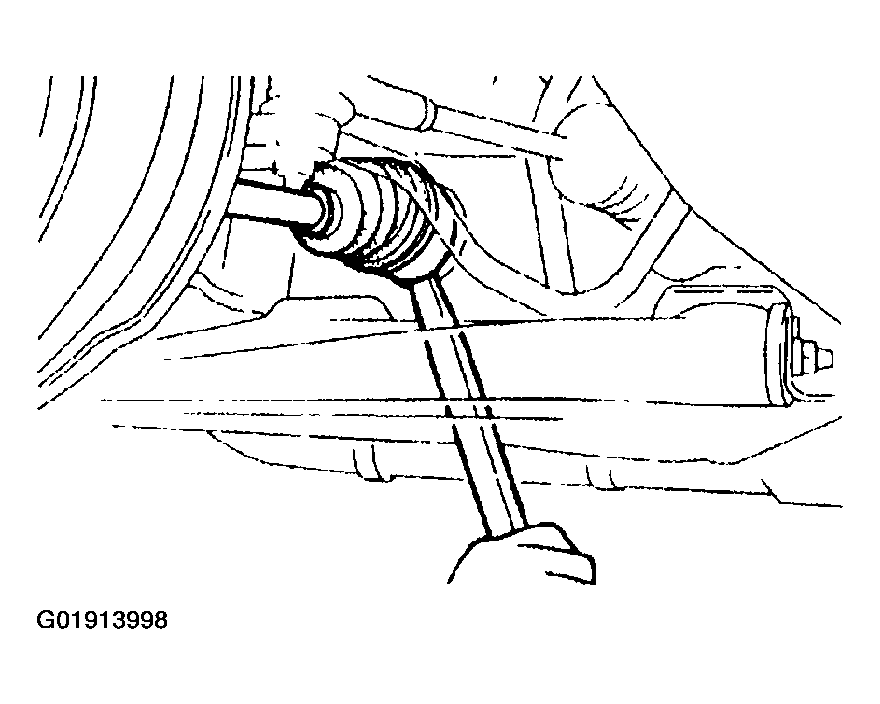

    Fig 3: Separating Left Side Drive Shaft From Transaxle
    G01913998Courtesy of MAZDA MOTORS CORP.
  8. Separate the right side drive shaft from the joint shaft by hammering on a bar inserted between them.

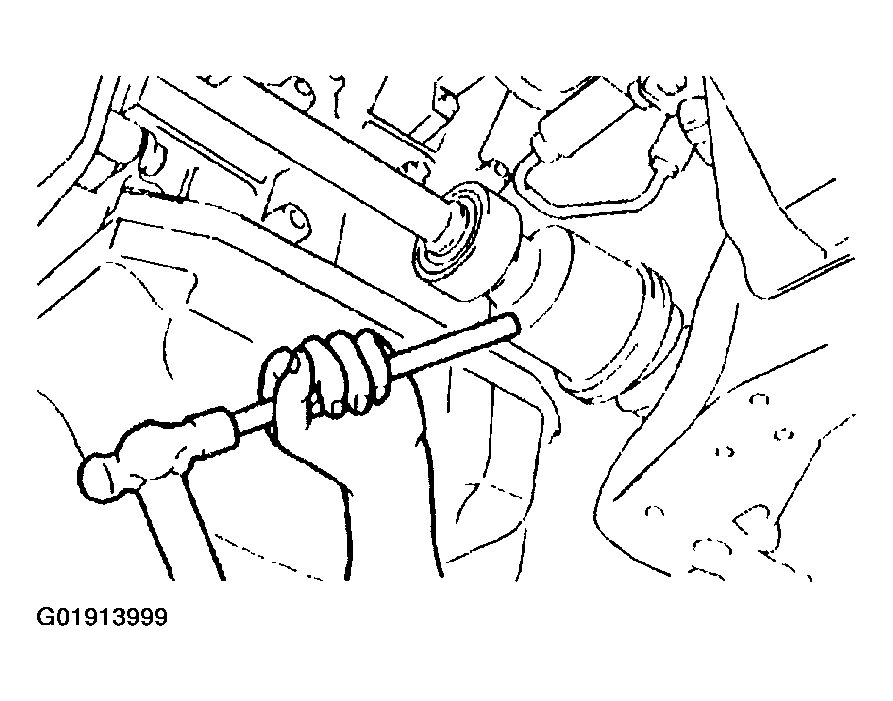

    Fig 4: Separating Right Side Drive Shaft From Joint
    G01913999Courtesy of MAZDA MOTORS CORP.
  9. Install the SST  into the transaxle to hold the side gears after drive shaft is removed.

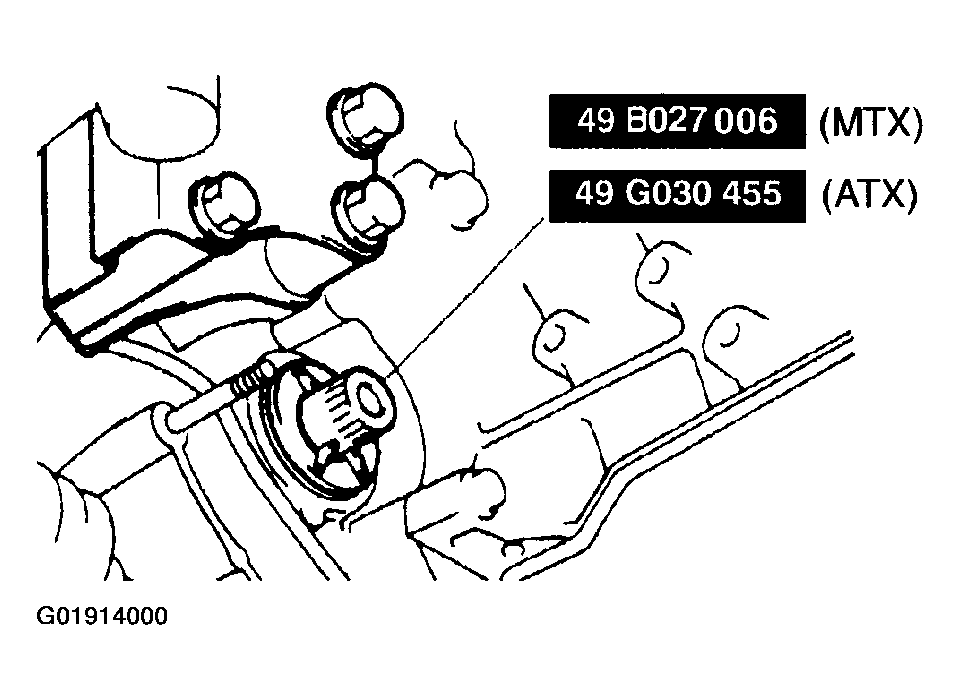

    Fig 5: Installing SST
    G01914000Courtesy of MAZDA MOTORS CORP.
