Drive Shaft Pre-Inspection

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the dust boot on the drive shaft for cracks, damage, leaking grease, and looseness in the boot band.
  2. Inspect the drive shaft for bends, cracks, and wear in the joint or splines.
    • Repair or replace the drive shaft or boot/band as necessary.

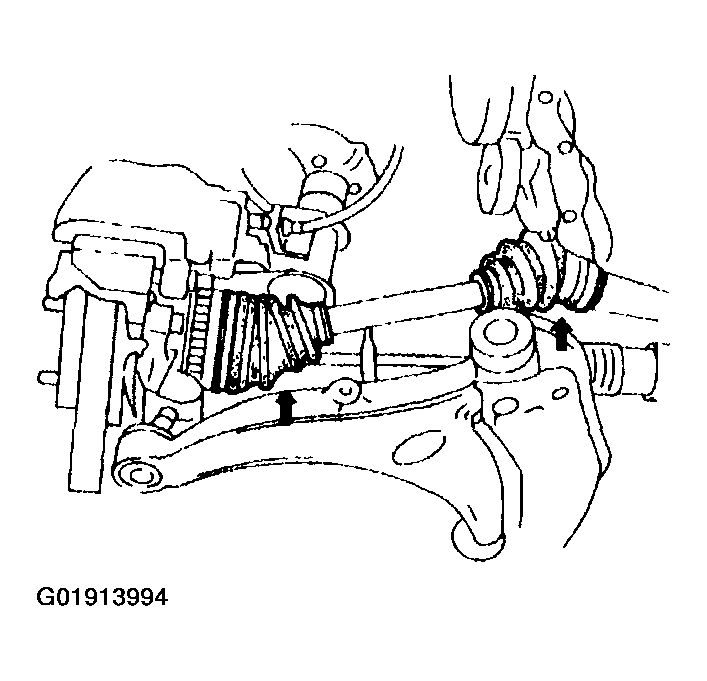

    Fig 1: Inspecting Dust Boot On Drive Shaft
    G01913994Courtesy of MAZDA MOTORS CORP.
