Boot Band (Transaxle Side) Disassembly Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pry up the locking clips using a screwdriver.
  2. Pull back the end of the band.

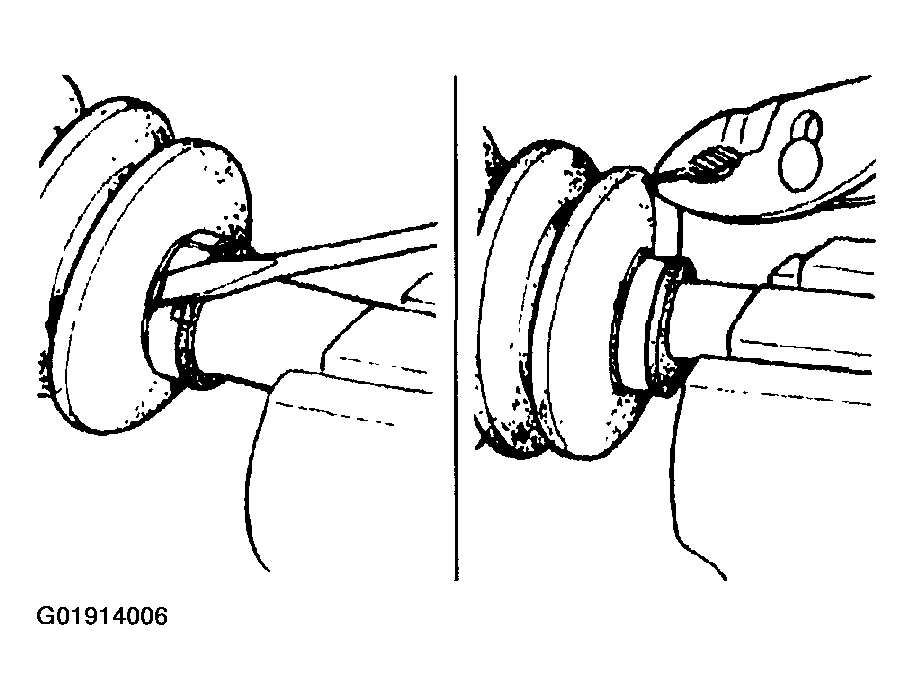

    Fig 1: Removing Boot Band
    G01914006Courtesy of MAZDA MOTORS CORP.
