Boot Band (Transaxle Side) Assembly Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Fold the band back and use pliers to pull it tight.
NOTE:
- Always use new bands.
- The band should be folded in the direction opposite to the forward revolving direction of the drive shaft.

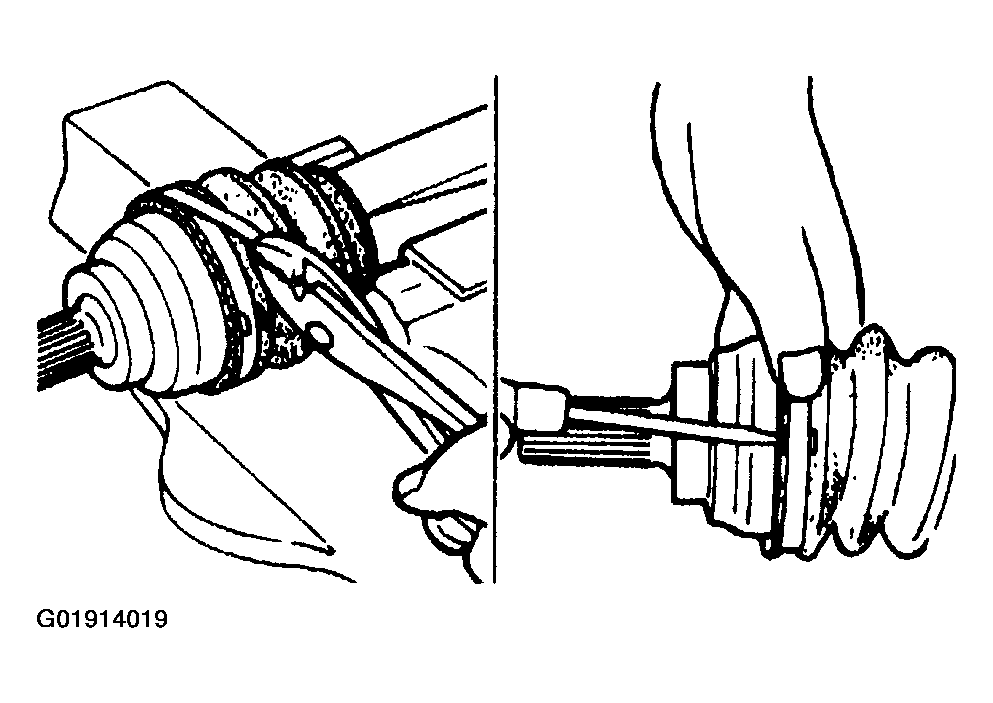

Fig 1: Tightening Band With Pliers
Courtesy of MAZDA MOTORS CORP.
Lock the end of the band by bending the locking clips.
CAUTION:
- Verify that the boot band is installed in the boot groove securely.
