Outer Ring, Clip Assembly Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fill the outer ring and boot (transaxle side) with the specified grease.
    CAUTION:
    • Do not touch grease with your hand. Apply it from the tube to prevent foreign matter from entering the boot.
    NOTE:
    • Use the specified grease supplied in the boot kit.
    Fig 1: Grease Specifications
    G01914028Courtesy of MAZDA MOTORS CORP.
  2. Align the marks, and install the outer ring on to the shaft.
  3. Install a new clip.
  4. Install the boot.
  5. Set the drive shaft to the standard length.
    Fig 2: Measuring Length Drive Shaft
    G01914030Courtesy of MAZDA MOTORS CORP.
    Fig 3: Standard Drive Shaft Length Specifications
    G01914029Courtesy of MAZDA MOTORS CORP.
  6. Release any trapped air from the boots by carefully lifting up the small end of each boot with a cloth wrapped screwdriver.
    CAUTION:
    • Be careful not to allow the grease to leak.
    • Do not damage the boot.

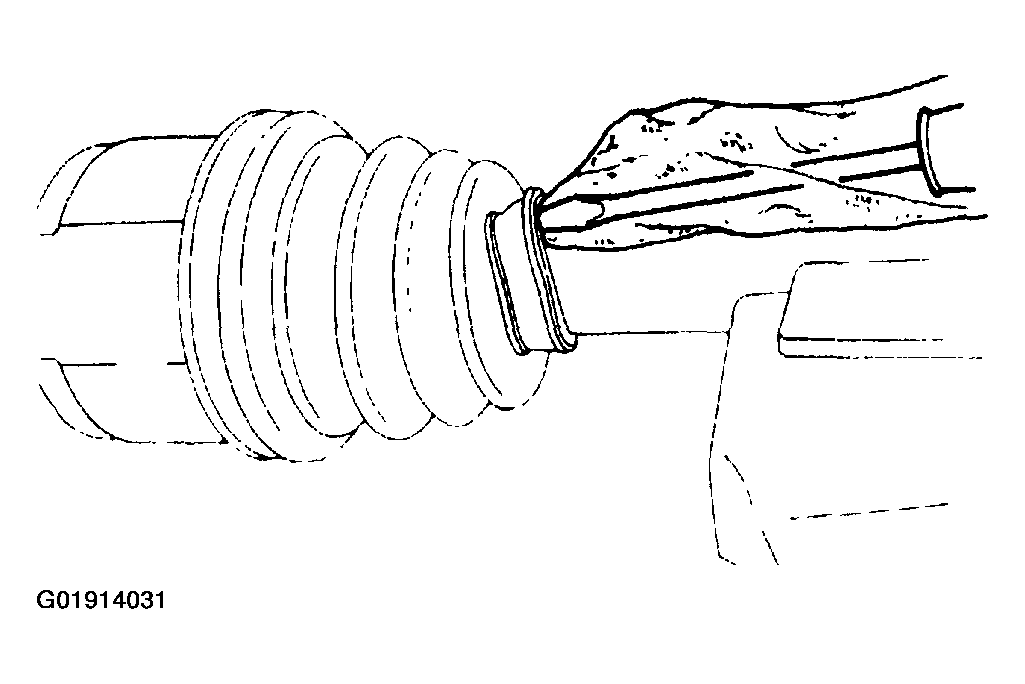

    Fig 4: Releasing Trapped Air From Boots
    G01914031Courtesy of MAZDA MOTORS CORP.
  7. Verify that the drive shaft length is within the specification.
