Outer Ring Disassembly Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mark the drive shaft and outer ring for proper assembly.
    CAUTION:
    • Mark with paint; do not use a punch.
  2. Remove the clip.

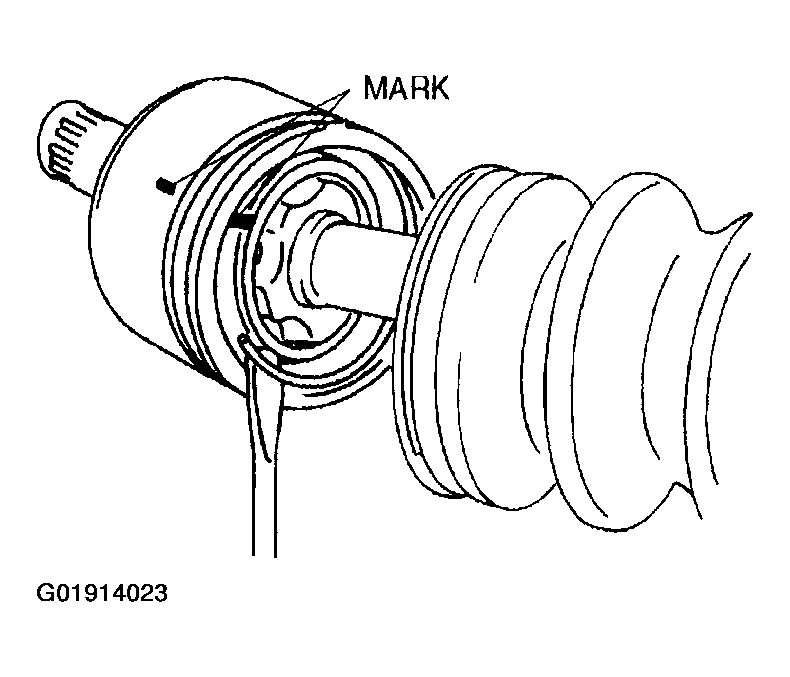

    Fig 1: Removing Clip
    G01914023Courtesy of MAZDA MOTORS CORP.
