Remaining Amount of Unbalance Confirmation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. After installing the outer and inner balance weights, operate the wheel balancer again.
  2. Confirm that the remaining unbalance does not exceed the following on either side.

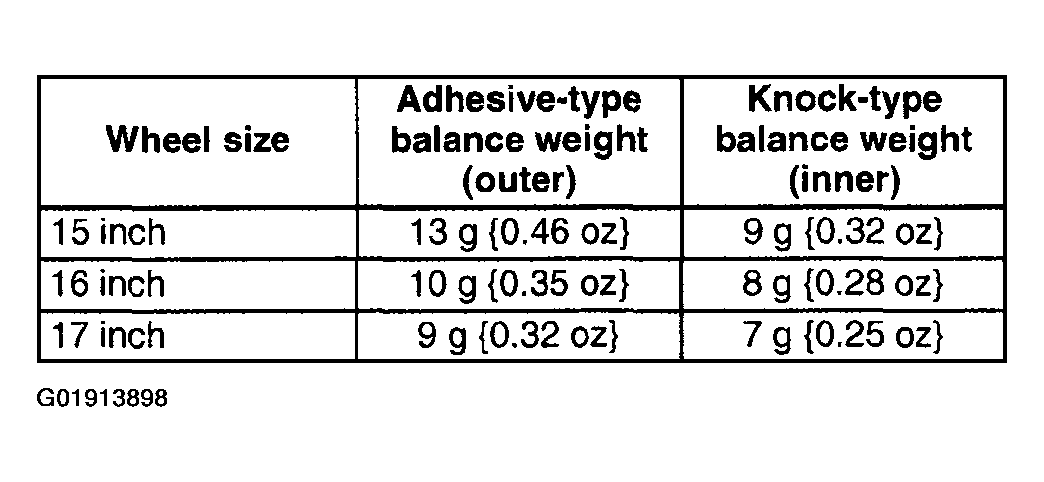

    Fig 1: Wheel Size And Weight Specifications
    G01913898Courtesy of MAZDA MOTORS CORP.
    • If the remaining unbalance exceeds 13 g (0.46 oz)  (15 inch wheel) or 10g (0.35 oz)  (16 inch wheel), perform wheel balance adjustment again.

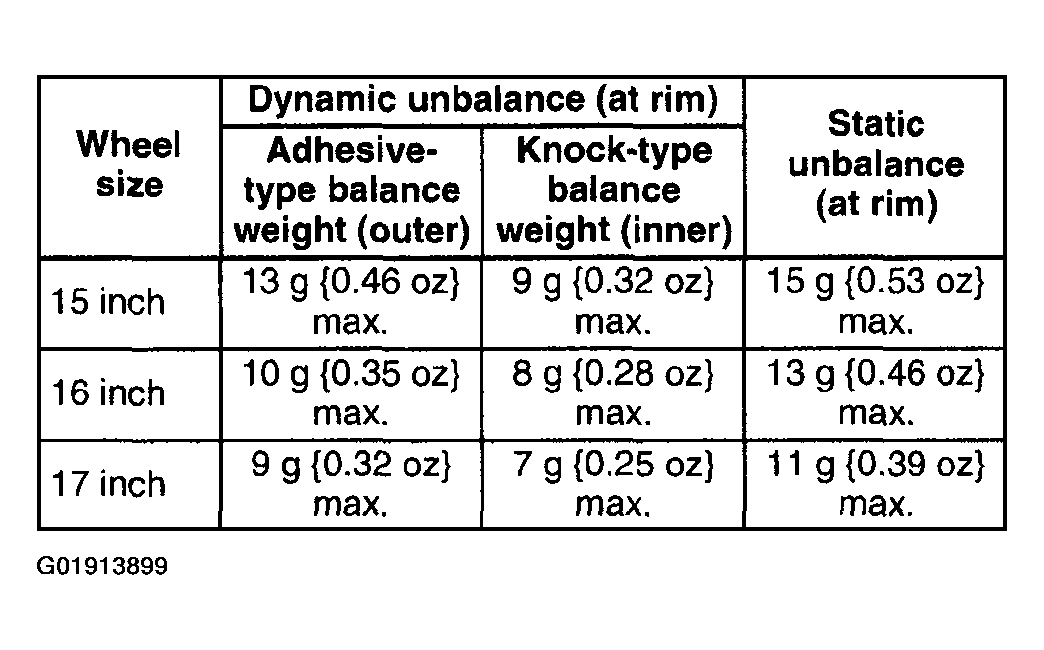

    Fig 2: Allowable Remaining Unbalance Value
    G01913899Courtesy of MAZDA MOTORS CORP.
