Camber and Caster Adjustment

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Jack up the front of the vehicle and support it on safety stands.
Remove the mounting block nuts.
Push the mounting block downward, and turn it to the desired position.

Fig 1: Camber And Caster Angle Adjustment Chart
Courtesy of MAZDA MOTORS CORP.

Fig 2: Removing Mounting Block Nuts
Courtesy of MAZDA MOTORS CORP.

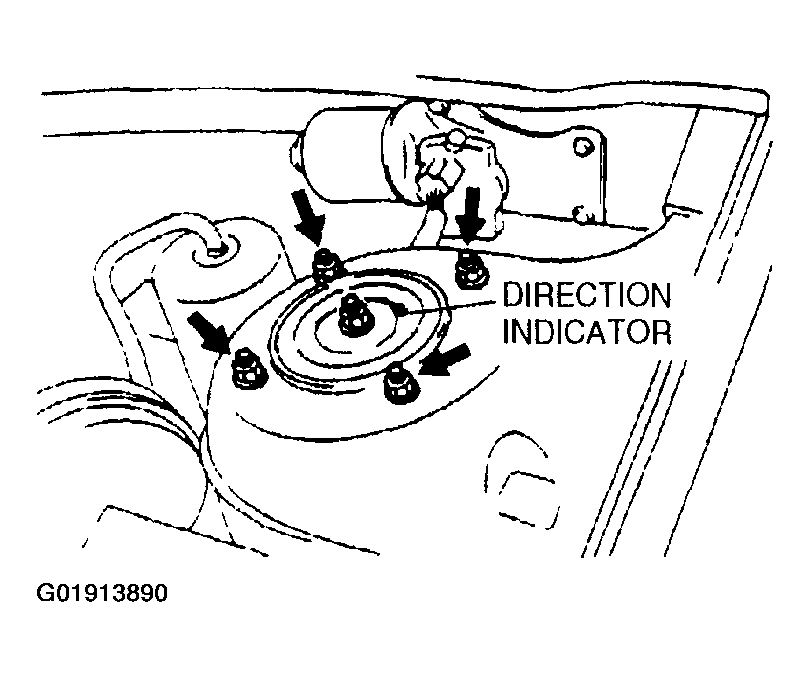

Fig 3: Mounting Nut Tightening Direction Indicator
Courtesy of MAZDA MOTORS CORP.
Install and tighten the mounting nuts to the specified torque.
Tightening torque

47-62 N.m (34-46 ft.lbf)
