Oil Pan Upper Block Removal Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Remove the two bolts at the rear of the cylinder block.
Loosen the oil pan upper block bolts in 2 or 3 steps in the order shown.

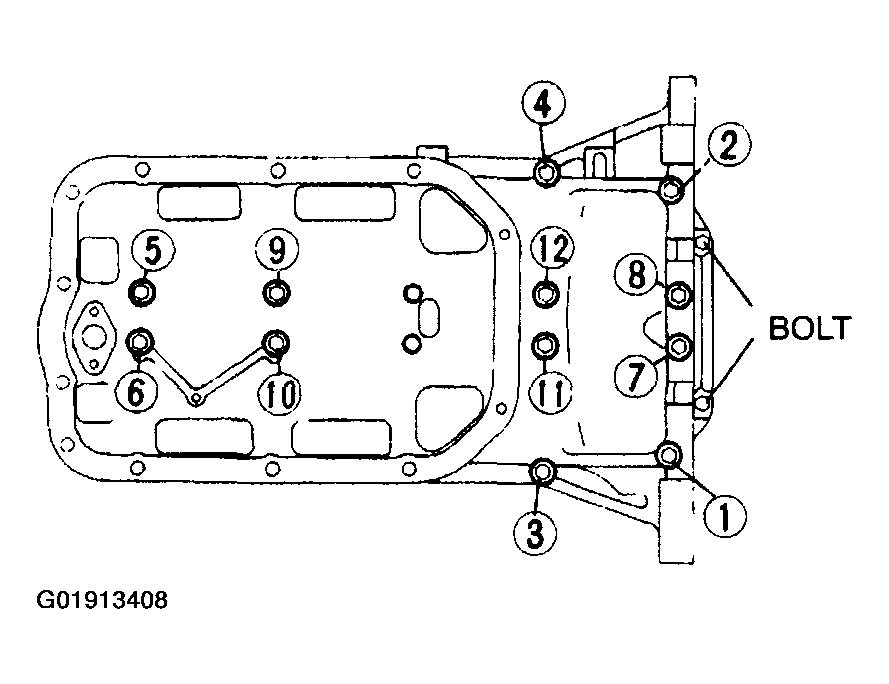

Fig 1: Oil Pan Upper Block Bolts Loosening Sequence
Courtesy of MAZDA MOTORS CORP.
Remove the oil pan upper block using the separator tool.

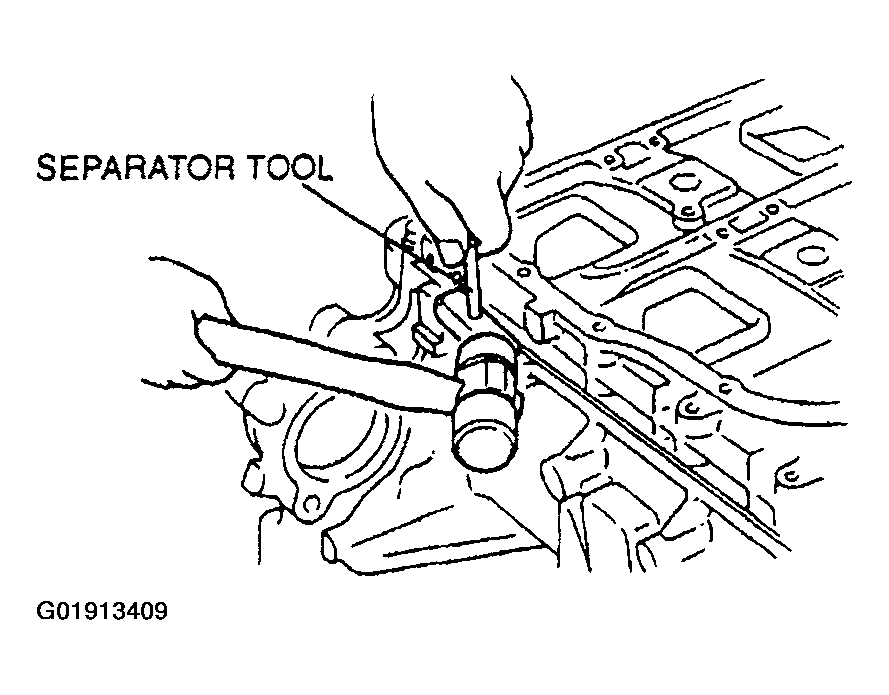

Fig 2: Removing Oil Pan Upper Block
Courtesy of MAZDA MOTORS CORP.
