Oil Pan Upper Block Installation Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Apply silicone sealant to the oil pan upper block as shown.
Thickness

2.0-3.0 mm {0.08-0.11 in}

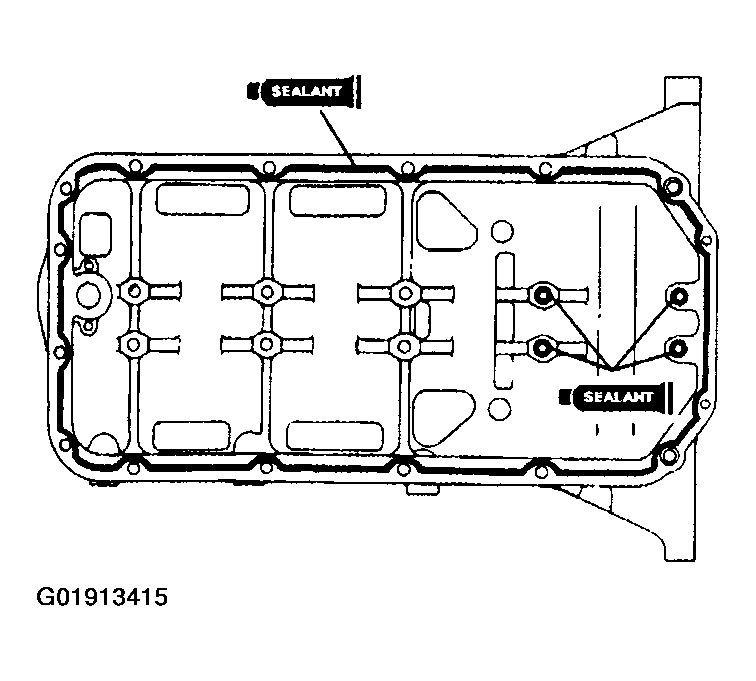

Fig 1: Applying Silicone Sealant To Oil Pan Upper Block
Courtesy of MAZDA MOTORS CORP.
Tighten the bolts A.
Tighten the oil pan upper block bolts in 2 or 3 steps in the order shown.

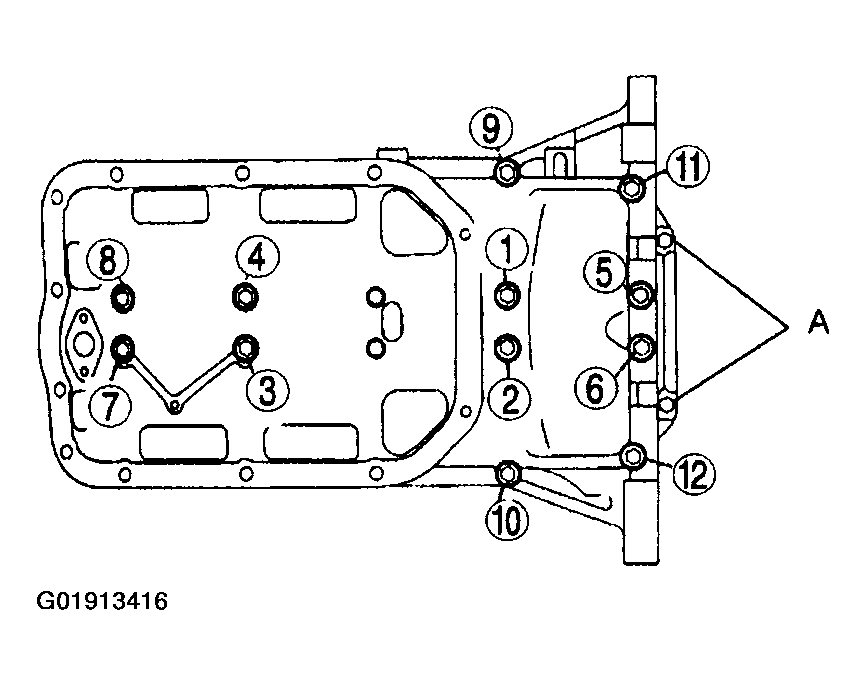

Fig 2: Oil Pan Upper Block Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
