Rotor Clearance Inspection: FS

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Standard tip clearance

0.130-0.206 mm {0.00512-0.00811 in}

Maximum tip clearance

0.30 mm {0.012 in}

Standard body clearance

0.09-0.18 mm {0.0036-0.0070 in}

Maximum body clearance

0.22 mm {0.0087 in}

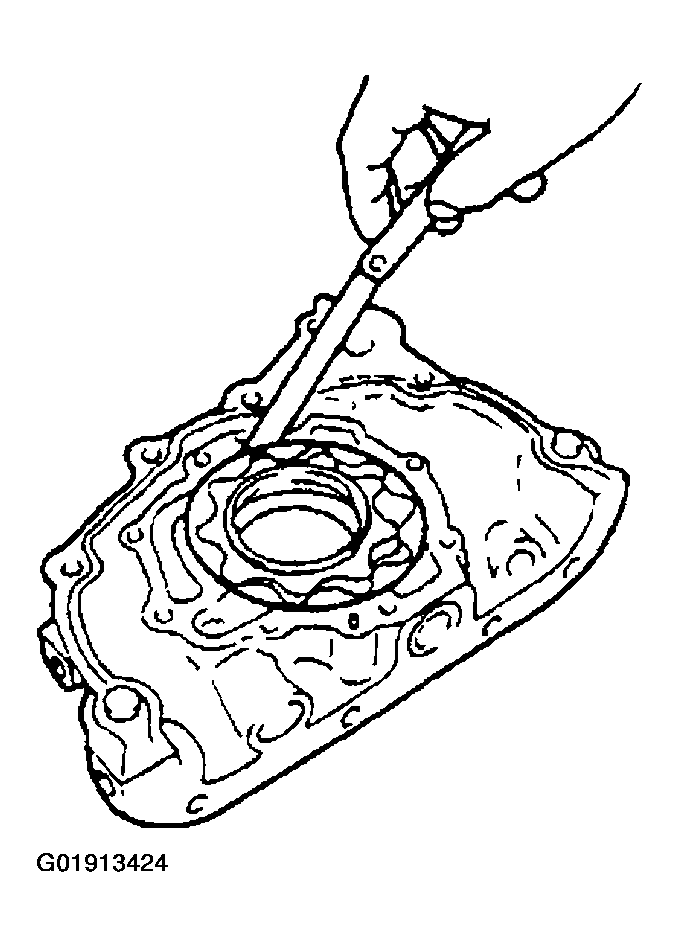

Fig 1: Measuring Body Clearance

Courtesy of MAZDA MOTORS CORP.

Standard side clearance

0.035-0.095 mm {0.0014-0.0037 in}

Maximum side clearance

0.14 mm {0.0055 in}

Fig 1: Measuring Side Clearance

Courtesy of MAZDA MOTORS CORP.
