Pressure Spring Inspection: FS
WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

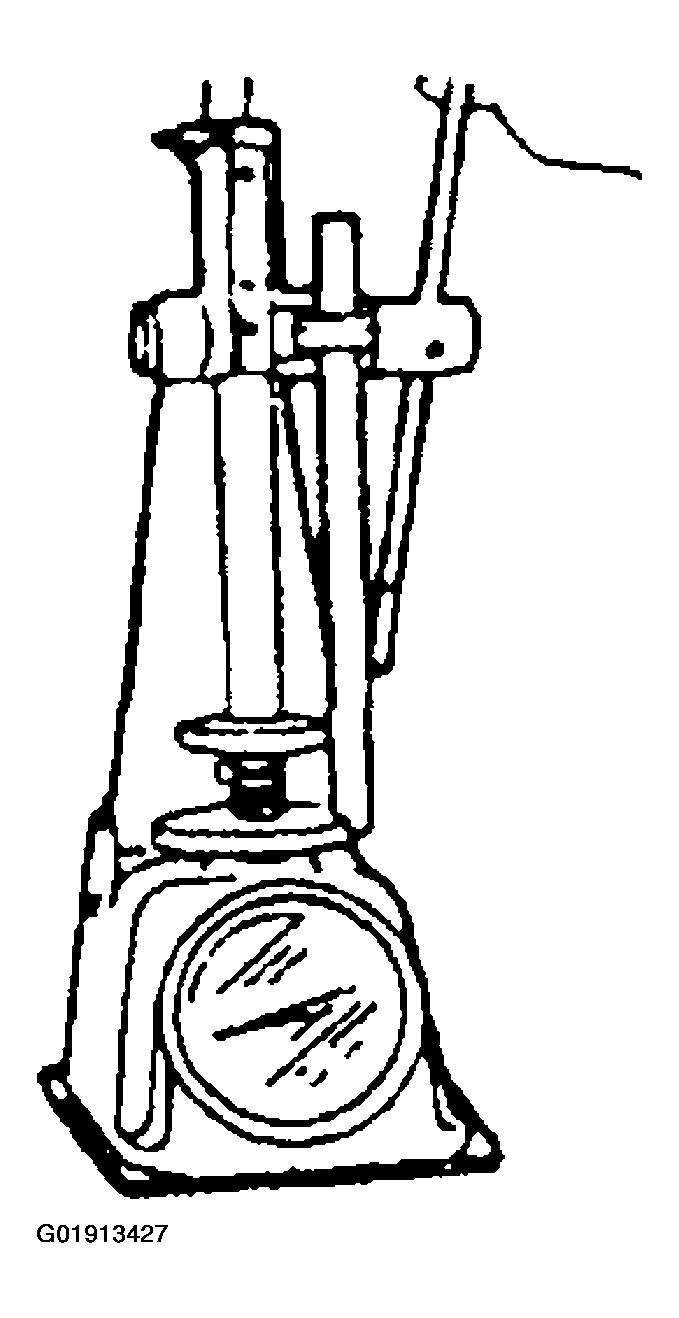

- Apply pressing force to the pressure spring and check the spring height.
- Replace the plunger spring if necessary.
Pressing force
97.7-107.4 N {9.96-10.96 kgf, 21.92-24.11 lbf}
Standard height
33.50 mm {1.319 in}
