Oil Pan Installation Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If the bolts are reused, remove the old sealant from the bolt threads. Tightening a bolt that has old sealant on it can cause bolt hole damage.

Fig 1: Preventing Cracking Damage

Courtesy of MAZDA MOTORS CORP.

Apply silicone sealant to the contact surfaces of new oil pan gaskets as shown. (ZM model)

Fig 2: Applying Silicone Sealant To Contact Surfaces Of New Oil Pan Gaskets (ZM Model
Courtesy of MAZDA MOTORS CORP.

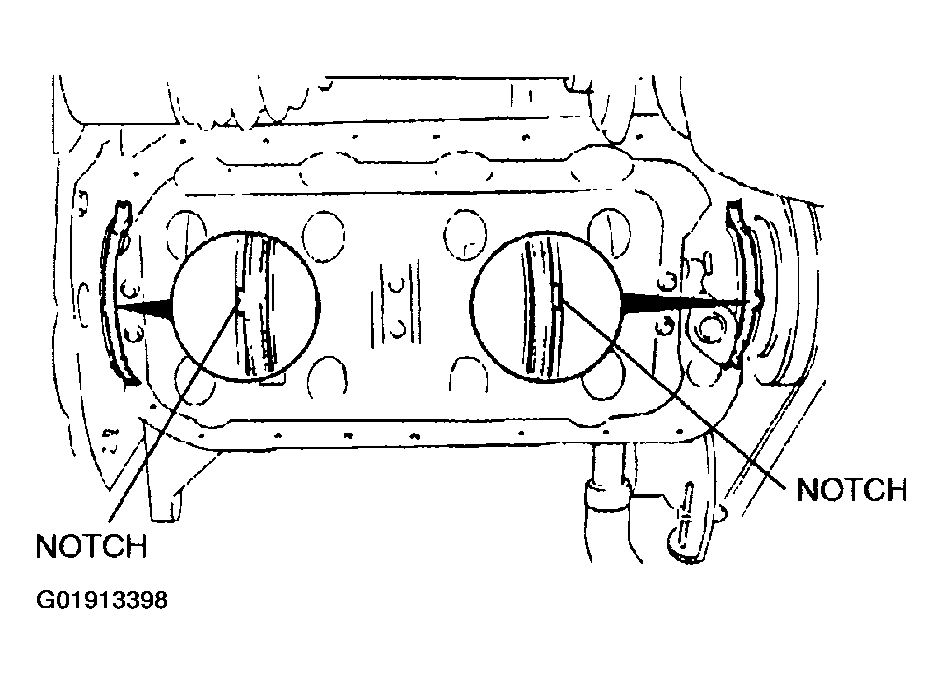

Install the new gaskets onto the oil pump body and the rear cover with the projections in the notches as shown. (ZM model)

Fig 3: Installing Gaskets Onto Oil Pump Body And Rear Cover With Projections In Notches
Courtesy of MAZDA MOTORS CORP.
Apply silicone sealant onto the area of oil pan gasket indicated by A and B. (ZM model)
Thickness

2.0 mm {0.079 in}

Fig 4: Applying Silicone Sealant Onto Area Of Oil Pan Gasket (ZM Model)
Courtesy of MAZDA MOTORS CORP.
Apply silicone sealant to the oil pan along the inside of the bolt holes and overlap the ends.
Thickness

ZM: 2.5-3.5 mm {0.099-0.137 in}

FS: 2.0-3.0 mm {0.079-0.118 in}

Fig 5: Applying Silicone Sealant To Oil Pan
Courtesy of MAZDA MOTORS CORP.
