Oil Pan Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Drain the engine oil. (See ENGINE OIL REPLACEMENT .)
Remove the front pipe.
Remove in the order indicated in the figure.

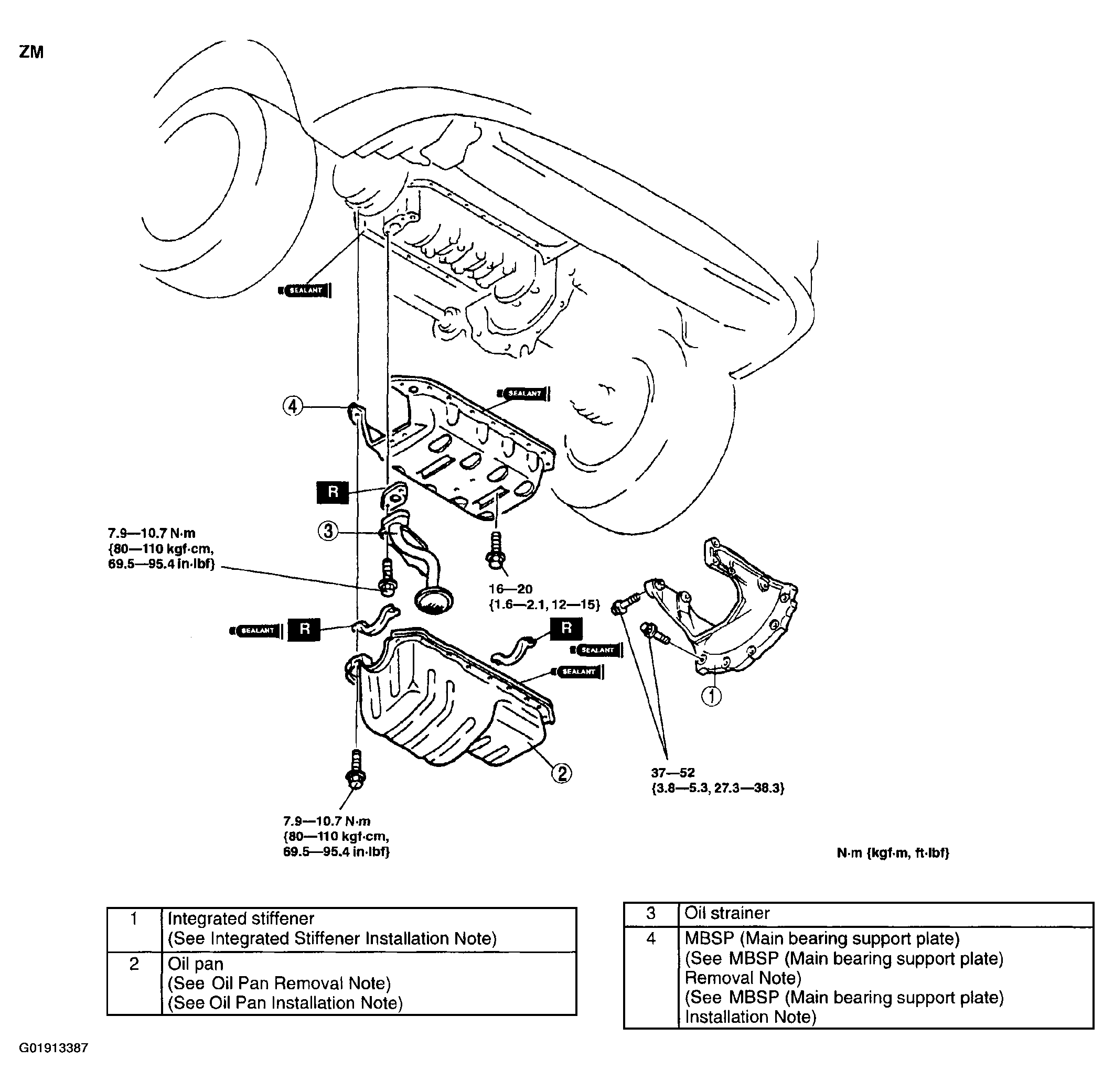

Fig 1: Identifying Components Of Oil Pan - ZM
Courtesy of MAZDA MOTORS CORP.

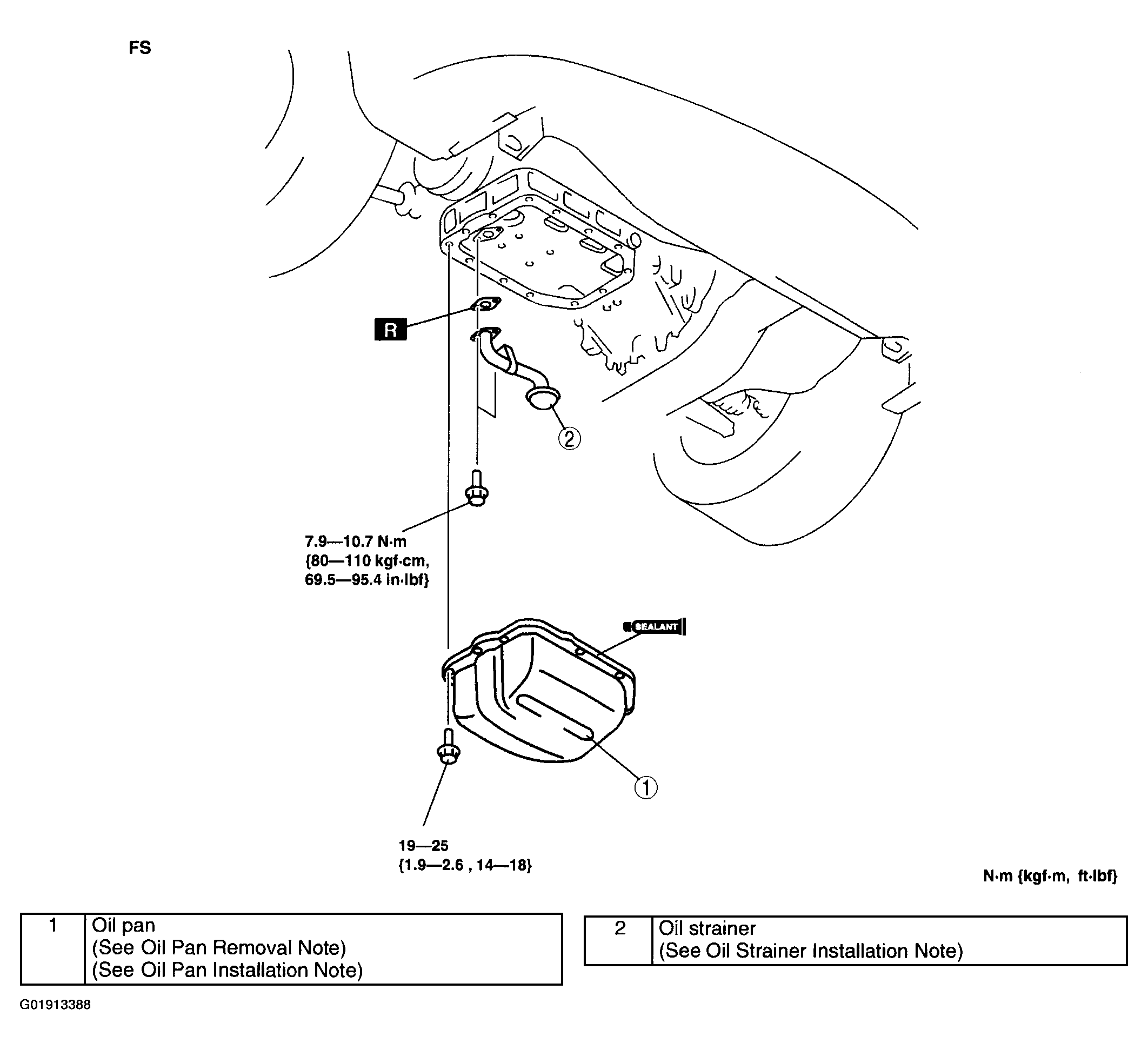

Fig 2: Identifying Components Of Oil Pan - FS
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Start the engine and inspect for engine oil leakage.
